Any installation of the Duct Mount Kit requires full understanding, knowledge and strict
observance of the Bacharach User Manual (part number 1100-1000).
CAUTION
1
Intended Use

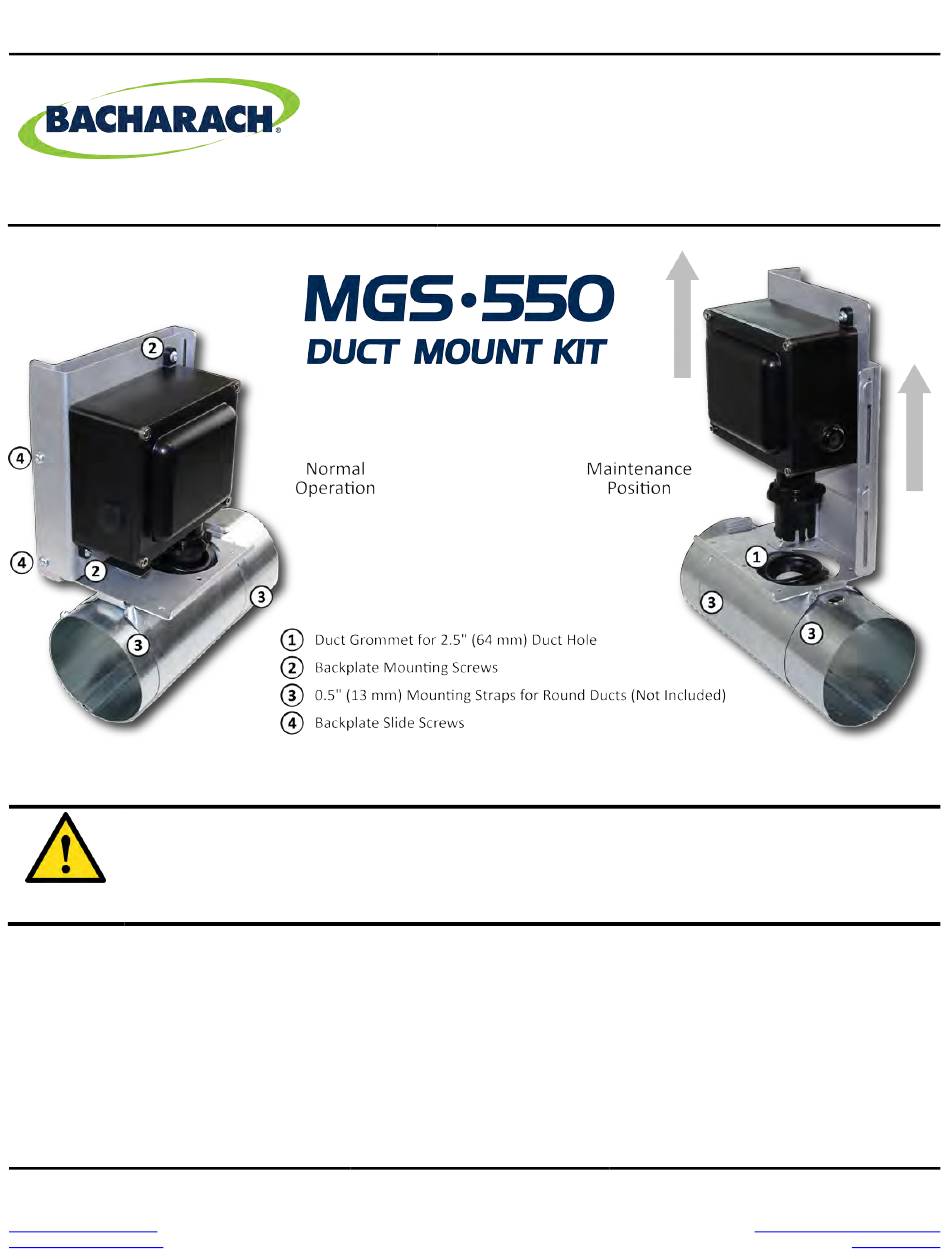

The Duct Mount Kit (part number 6600-8960) is required for mounting the Bacharach MGS-550 to a
duct, if concentrations are to be monitored in ducts.
Round ducts must have a diameter of at least 4" (100 mm). Flat ducts must have a mounting area of
at least 6.7" x 6.7" (170 x 170 mm). The required head space for calibration is a minimum of 4"
(100 mm) for sliding up the instrument.
