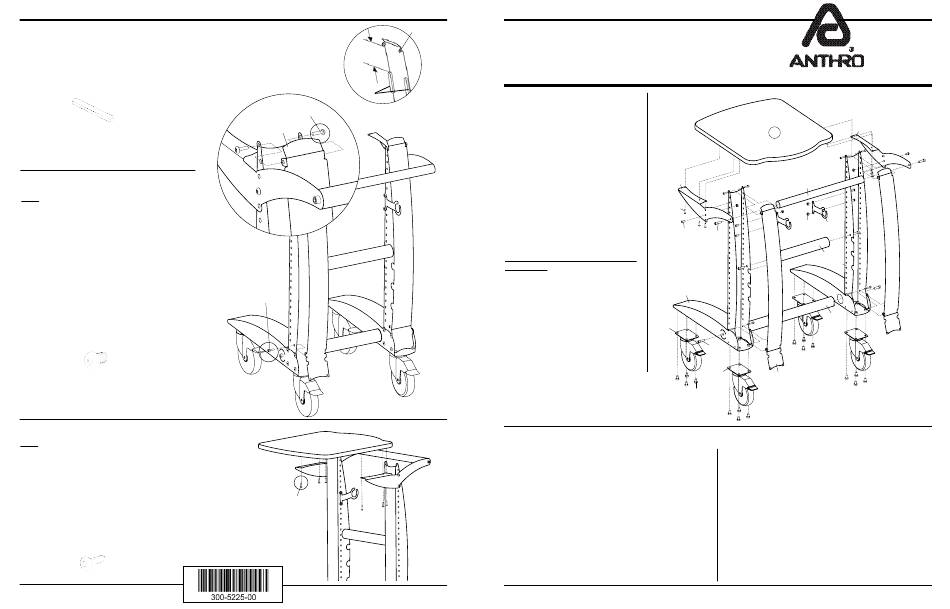

Step 7a
Install Non-skid Pads on the top of the Trolley Trunk
Covers to cushion the edge of each Trunk Assembly where it
meets the cover. Install pads on the inside face of the cover,
at the edge, about 3.5" below the threaded holes at the top of
the cover.
Non-Skid Pad
175-5068-03
Step 7b
STOP: If yOU PURCHASEd A TROllEy
EqUIPmENT SHElf, AddITIONAl wOOd SHElf, OR TROllEy
TRAy REAd THOSE INSTRUCTIONS BEfORE INSTAllINg THE
TRUNk COVERS.
Install the Trolley Trunk Covers by orienting both Covers with
the Trunk Assemblies.
Secure the top and bottom of each Cover using a total of four
Button Head Screws per Cover.
(
/
-20 X .375") Button Head Screw
1
4
325-5210-00
Step 8
STOP: If yOU PURCHASEd A SwINg OUT mOUSE SHElf REAd
THOSE INSTRUCTIONS BEfORE INSTAllINg THE TOP.
Finally, place the main Trolley Shelf onto the installed
Shelf & Handle Sides, aligning the six holes on the
Shelf with those on the Sides.
Secure the Shelf to the Sides using a total of six
/
" Wood Screws. Tighten all Screws and Nuts.
3
4
Congratulations! Your assembly is complete!
3
/
" Wood Screw
4
325-5106-00
Questions?
Threaded holes
3.5"
Non-Skid Pads
Button Head Screws
Trunk Cover
Button Head
Screws
/
" wood Screws
3
4
into the six Trolley
Shelf holes
1-800-325-3841
Trolley Cart
Assembly Instructions
Hello!
Thank you for choosing Anthro.
Before beginning assembly of your
Trolley, please take a moment to re-
view the parts listed below to verify
that your shipment is complete.
All fastener quantities shown are the
15
minimum needed for this assembly.
There may be a few extras provided
16
which are not required.
17
The following Tools (not shown at right) have
been provided:
Hex Driver
5
/
" ............375-5000-00
32
Hex Key 6mm ...............375-5013-00
01
3
/
" Allen Key ...............375-5028-00
16
3-way Wrench.............225-5196-03
5/32" Driver Bit ...........375-5003-00
02
Component list for
part # TR18zz/xx and TT18zz/xx.
01– Trolley Trunk Assembly (X) ..........Qty. 1 .................................................
TR18zz/xx.............................................................................. 835-5018-00
TT18zz/xx .............................................................................. 835-5401-00
02– 5" Total Lock Casters ................. Qty. 2 .................... 150-5081-00
03–
5
/
-18 Button Head Screw ....... Qty. 16 .................. 325-5188-00
16
04–
/
-18 X 1" Tube Screws ........... Qty. 4 .................... 325-5136-00
5
16
05– 5" Swivel Lock Casters .............. Qty. 2 .................... 150-5080-00
06– Trolley Trunk Covers ........................Qty. 2 ................................................
TR18zz/xx.............................................................................. 225-5753-00
TT18zz/xx .............................................................................. 225-4278-00
07– 18.25" Lower Cross Tube ...............Qty. 1 ......................125-5244-xx
08– Trolley Trunk Assembly (Y) ..........Qty. 1 .................................................
TR18zz/xx.............................................................................. 835-5019-00
TT18zz/xx .............................................................................. 835-5402-00
Anthro
®
Corporation Technology Furniture
SAVE THESE INSTRUCTIONS!
1-800-325-3841
TECHNOLOGY FURNITURE
®
13
14
12
11
10
18
09
08
07
04
05
06
03
09– 12" Upper Cross Tube ............... Qty. 1 ..................... 125-5243-00
10– Trolley Cable Wraps .........................Qty. 2 ..................... 225-5756-00
11–
/
-20 Keps Nuts ...............................Qty. 6 ..................... 325-5202-00
1
4
12– 18" Handle ..........................................Qty. 1 ..................... 125-5245-00
13– Shelf & Handle Side (X) ............ Qty. 1 ..................... 225-5754-00
14– 18.5" Wide Trolley Shelf ................Qty. 1 ..................... 100-6495-00
15– Shelf & Handle Side (Y) .................Qty. 1 ..................... 225-5755-00
16–
3
/
" Wood Screws ..............................Qty. 6 ......................325-5106-00
4
-20 Button Head Screws ...... Qty. 14 ...................325-5210-00
17–
1
/
4
-20 X 2" Handle Screws ........ Qty. 2 ..................... 325-5034-00
18–
1
/
4
......... Qty. 8 ..................... 175-5068-03
19– Non-Skid Pads
(not shown)
®
10450 SW Manhasset Drive Tualatin, Oregon 97062 anthro.com
November 2010, Rev H
