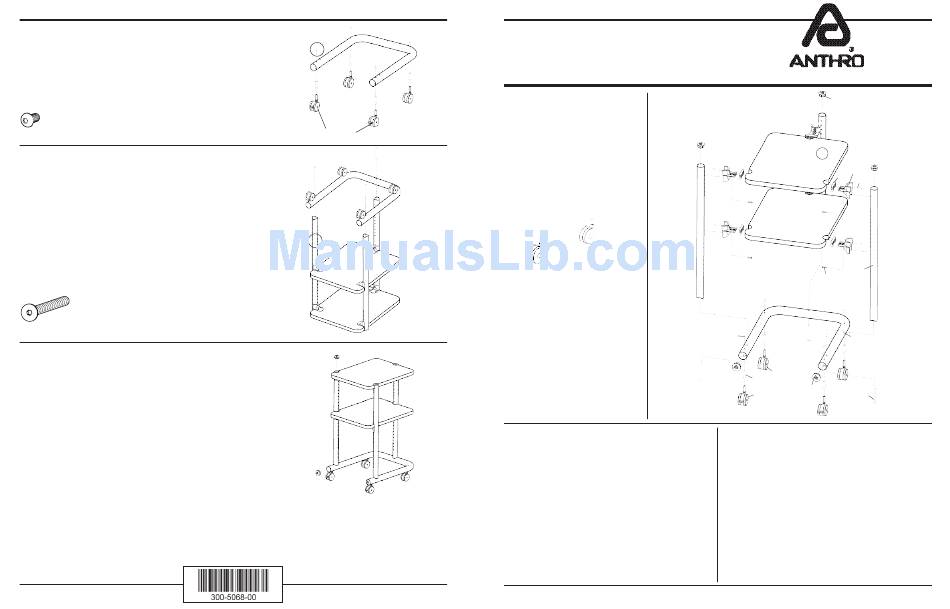

Anthro MiniCart GT23 Series Assembly Instructions

Step 7
Install all four caster inserts into the base tube and secure
(fully tighten) with one Caster Insert Screw per insert.
Next, push the casters, (locking ones in front) into the caster
inserts.
1/2" Caster Insert Screw
325-505 2-00
Step 8
Carefully rotate the shelf assembly (from Step 6), upside down
as shown.
Place the base tube assembly (from Step 7) onto the vertical
legs of the shelf assembly.
Attach the base tube to each leg using a total of three
3-1/2" Bolts.
Tighten all Self-threading and Base Tube Screws.
3-1/2" Bolt
325-500 0-00
Step 9
Rotate your MiniCart over onto the casters.
Pop the three 1.5" small end caps into the vertical legs and
the two 1.75" large end caps into the base tube.
After you add your equipment to the cart, select the cable
management components that suit.
To install the Cable Alleys, expand each sleeve and fit it over
a cart leg. Align the mounting hole(s) in the sleeve with the
holes on the leg, then install with self-threading screws.
To install the Cord Handler, snap the large end around any
cart leg, then route cables through the small end.
Congratulations! Your MiniCart assembly is complete.
Please return the enclosed Registration Card to receive our
product updates, new catalogs, and sale flyers.
Thank you for choosing Anthro!
Questions?
Locking Casters
1.5" Small End Cap
1.75" Large End Cap
1-800-325-3841
Anthro MiniCart
Assembly Instructions
These Assembly Instructions are for
the GT23xx.
Before beginning assembly of your
Anthro MiniCart, please take a moment to
review the parts list below to verify that
your shipment is complete.
Does your Cart have 4" Casters?*
Then these are your casters:
4" Non-Locking Caster
150-5010-03
4" Locking Caster
150-5011-03
TOOLS
To make the assembly of your cart even
easier, we have included all of the required
tools . Use the handy Hex Driver Bit in your
electric drill in place of the Hex Driver.
Hex Driver 5/32".................. 375-5000-00
Hex Driver Bit 5/32" ........... 375-5003-00
8 oz. Rubber Mallet............ 375-5022-00
Enclosed Parts List
Detailed views of all hardware is provided with each
assembly step.
01– Insert Screws ............................ Qty. 4 .................... 325-5052-00
" Non-Locking Casters ........ Qty. 2 ...................150-5002-03*
02– 2 3 /
8
03– Caster Inserts ........................... Qty. 4 ....................525-1000-00*
04– 2 / " Locking Casters ................ Qty. 2 .................. 150-5003-03*
3
8
05– 1.75" Large End Caps ................ Qty. 2 ...................... 175-5021-xx
06– Base Tube Screws .............................Qty. 3 ..................... 325-5000-00
07– MiniCart Base Tube ................... Qty. 1 .....................125-5004-xx
08– Self-threading Screws ...................Qty. 6 ......................325-5010-00
09– Vertical Legs ............................ Qty. 3 .................................................
...... .................................125-5020-xx
23.875" Vertical Legs (GT23xx)
Anthro ® Corporation Technology Furniture
SAVE THESE INSTRUCTIONS!
January 2015, Rev D
TECHNOLOGY FURNITURE ®
14
13
1 1
12
10
09
08
01
07
02
03
05
06
04
10– 1-5/8" Screws ....................................Qty. 6 ..................... 325-5086-00
11– Shelf Supports ...................................Qty. 6 ......................175-5060-xx
12– Shelf Clamps ......................................Qty. 6 ....................175-5059-xx
13– MiniCart Shelves ....................... Qty. 2 ...................... 100-6003-xx
14– 1.5" Small End Caps .................. Qty. 3 ......................175-5020-xx
All fastener quantities listed here are the minimum needed for your
cart assembly. Your shipment may include a few extras.
Cable Management Components
Cable Alley, 9" ...................... Qty 1 ............................................. 175-5061-03
Cable Alley, 3" ...................... Qty 1 ............................................. 175-5062-03
Cord Handler ........................ Qty 1 ............................................. 175-5001-03
Self-threading Screws...... Qty 6 ..............................................325-5010-00
® 10450 SW Manhasset Drive Tualatin, Oregon 97062
Document # 300-5068-00
