SpeakerCraft SmartPath IRE-4.0 Installation Instructions

INSTR,INSTL,IRE-4.0 • LINEAR P/N: 223110B • INK: BLACK •
MATERIAL: 20LB. GLOSS WHITE PAPER • SIZE: 4.250" X 14.000" FOLD TO 4.250" X 3.500"
• FOLDING: 4 PARALLEL FAN-FOLDS, FINISH WITH LOGO SHOWING • SCALE: 1-1

DESCRIPTION

The IRE-4.0 is the dual emitter version of the IRE-3.0. It features a
unique EZ-Docker
ter when rearranging or servicing components. It flashes visible red
when emitting IR control signals. It has 75% lower IR output than
non-visible emitters and therefore should be used when controlling
multi-zone components to avoid cross-zone interaction. An improved
adhesive reduces callbacks for reattachment of "fallen emitters".

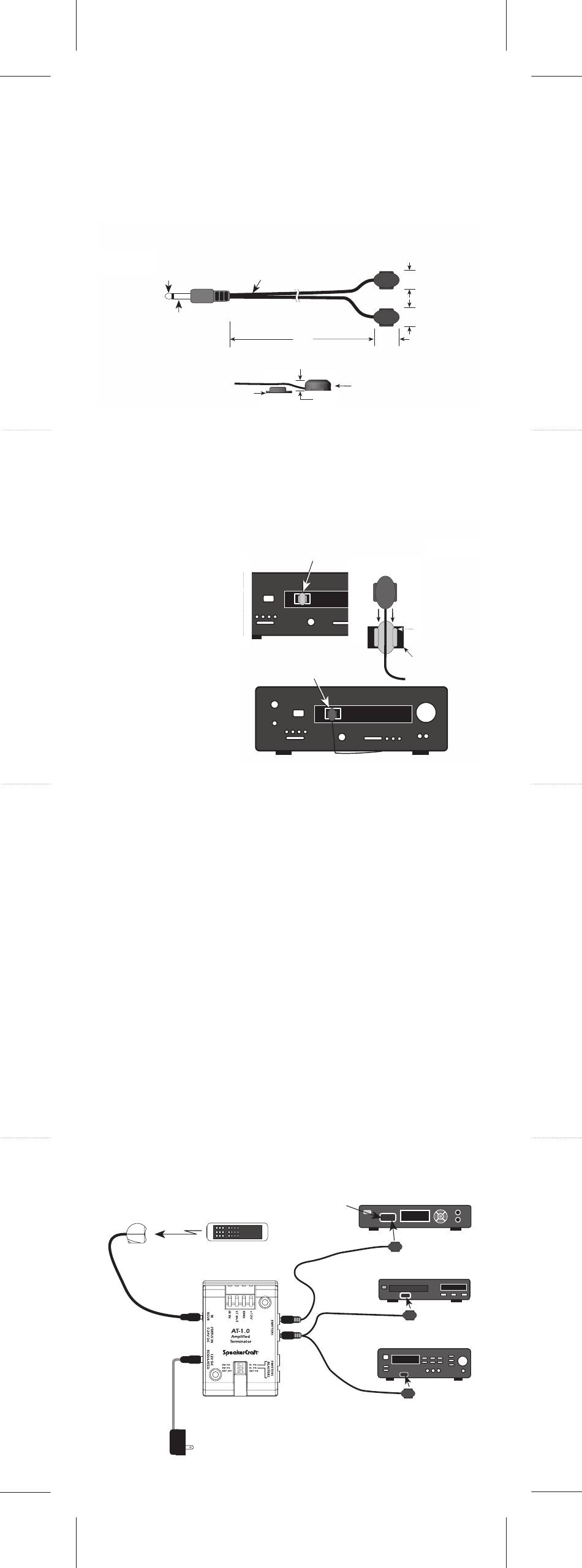

Fig. 1
Fig. 1
(+)
(– )

ATTACHMENT

First, locate the component' s IR Sensor window (see Note 1) and
thoroughly clean it of any fingerprints or other greasy substances.
The EZ-Docker port has a clear adhesive layer on its bottom surface.
™
Peel the protective
layer off, exposing
the adhesive.
Orient the port vertical
(see Fig. 2) and press
it over the center of the
component' s sensor
window. Press & hold
for several seconds to
ensure maximum contact
of the adhesive.
Slide the emitter from the
top down, into the EZ-
Docker port. You should
™
feel it "snap" into place.
(To remove the emitter at any time, simply push upward until it
"pops" out).
Insert the 3.5mm plug into an Emitter jack on a SpeakerCraft
Terminator or other source of IR (see Fig. 3).
CAUTION: Do not plug into an emitter jack that is set to Blaster
Power (BL ON) or to the HIGH OUT of other connecting blocks.
To do so will smoke the emitters!!
Note 1: If you have difficulty finding the component' s IR sensor, try
using a flashlight. Sometimes the owner' s manual is helpful. You may
need to contact the manufacturer direct.
Note 2: You may also attach the emitter without the EZ-Docker
port. Use one of the spare adhesives (included) applying it directly to
the bottom surface of the IRE-4.0 shell.
Note 3: If you need to remove the EZ-Docker
ously stuck to a component' s surface, use a fresh adhesive (included)
before reattaching.
IRC-3.0
Shelf Top
IR Receiver
Fig. 3
Fig. 3
