CUMMINS ALLISON Universal JetScan 4161 User Manual

Single-pocket note scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Universal JetScan
®
Single-Pocket Note Scanner
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Universal JetScan 4161 and is the answer not in the manual?

Questions and answers

Related Manuals for CUMMINS ALLISON Universal JetScan 4161

Summary of Contents for CUMMINS ALLISON Universal JetScan 4161

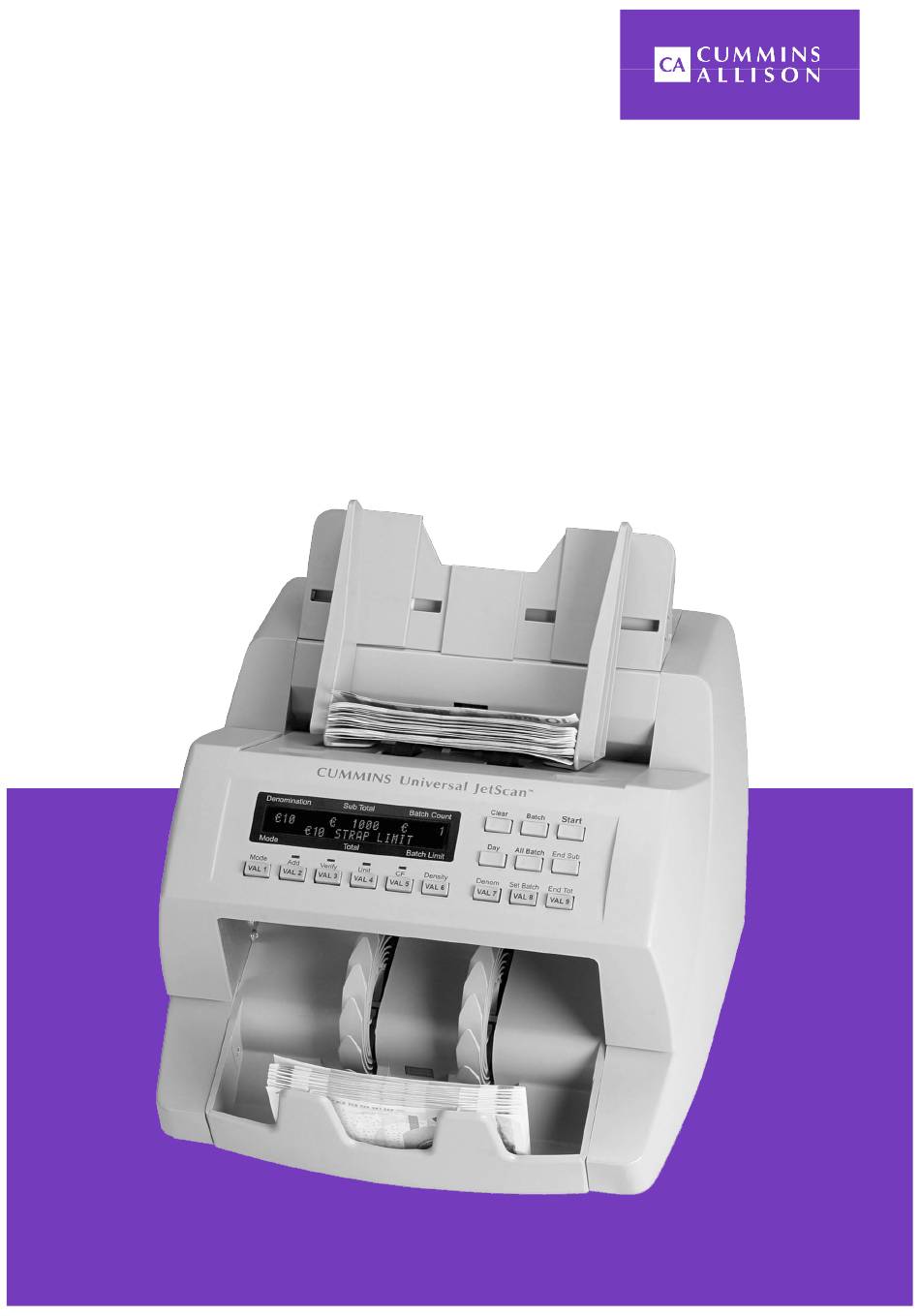

  • Page 1 Universal JetScan ® Single-Pocket Note Scanner User Guide...

  • Page 2: Safety Information, Power Specifications

    High voltage inside. Risk of electric shock. Turn power OFF and unplug power cord from machine before cleaning. Do not attempt repairs. Repairs must be made by authorized Cummins Allison personnel. Plug three-prong grounded plug (supplied) into properly grounded three-prong outlet.

  • Page 3: Table Of Contents

    Table of Contents SAFETY INFORMATION, POWER SPECIFICATIONS ........... 1 ENVIRONMENTAL OPERATING CONDITIONS ............1 COMPLIANCE ACKNOWLEDGMENTS ................. 1 MACHINE DIAGRAM ....................3 DISPLAY/CONTROL-PANEL DIAGRAMS ..............4 4161, 4163, 4166, 4169................4 ODELS ....................... 5 ALUE ETTINGS ....................5 UMBERS IAGRAM ......................

  • Page 4: Machine Diagram

    Machine Diagram Thickness adjustment dial (behind hopper) Hopper Hopper guides Feed roller Feed roller Feeder plate Display Function keys Function keys Power switch and power cord on rear of unit Stacker wheels Stacker sensor Stacker Stacker mirror © 2014 Cummins-Allison Corp.

  • Page 5: Display/Control-Panel Diagrams

    Display/Control-Panel Diagrams Models 4161, 4163, 4166, 4169 Shown below are key legends as they appear on single-pocket Universal JetScan note ® scanner models 4161, 4163, 4166 and 4169. Clear Batch Start Denomination Sub Total Batch Count All Batch End Sub Mode Total Batch Limit...

  • Page 6: Value Key Settings

    Value Key Settings Please contact a Cummins Allison representative to obtain the value key (VAL key) layout for a particular country. Single-pocket Universal JetScan value keys (VAL keys) represent note denominations that have been pre-programmed for specific countries. The VAL 1 through VAL 9 keys are each assigned to one denomination, from lowest to highest, by country.
  • Page 7 (Key 15) enabled. Holding down this key for 3 seconds allows access to USER SETUP and DIAGNOSTICS without powering down the machine. Please contact a Cummins Allison representative to obtain the value key (VAL key) layout for a particular country.

  • Page 8: The Basics

    Countries are selected at the time of purchase. To add more countries, contact a Cummins Allison representative. Hold down Mode for 2 - 3 seconds. Scroll through the available countries by pressing key 13 or key 14. Pressing Day toggles between two selected countries chosen in COUNTRY TOGGLE.

  • Page 9: Thickness Adjustment Dial

    Thickness Adjustment Dial This gray dial, located on top of the Universal JetScan, adjusts the tightness of the feeder through which notes pass during operation. The dial features a series of numbers, with 0 being center. Negative numbers, such as -1 and -2, appear to the left of 0. Positive numbers, such as +1 and +2, appear to the right of 0.

  • Page 10: How To Process Notes

    High voltage inside. Risk of electric shock. Turn power OFF and unplug power cord from machine before cleaning. Do not attempt repairs. Repairs must be made by authorized Cummins Allison personnel. Plug three-prong grounded plug (supplied) into properly grounded three-prong outlet.

  • Page 11: Daily Cleaning Procedures

    Daily Cleaning Procedures Daily cleaning of the Universal JetScan note scanner is recommended to ensure maximum productivity and reliability, especially for high-volume applications, as well as for those processing highly circulated (dirty) notes. Recommended Cleaning Materials Simple Green, the recommended cleaning agent, can be an eye irritant.
  • Page 12 Turn power OFF (rocker panel to 0). Disconnect power cord from the rear of the Universal JetScan. Lift adjustable hopper to the upright position. Remove feeder plate as shown below. Use a microfiber towel to clean the black start sensor at the top, middle of the feeder plate, as identified at left.
  • Page 13 Use a Simple Green Safety Towel to clean all rubber sections of the large, black feed rollers. Rotate the rollers. Also clean the flat, center rubber-drive tire, as identified at left. Use a microfiber towel or vacuum to remove any remaining dust in the bottom stacker.
  • Page 14 Carefully reconnect power cord. Turn power ON (rocker panel to I). Perform a test run with some notes. © 2014 Cummins-Allison Corp.

  • Page 15: Stopping Conditions And Recovery Steps

    Stopping Conditions and Recovery Steps Screens are listed alphabetically. Denomination Sub Total Batch Count This screen could show any of these CHAIN DETECTED messages: • CHAIN DETECTED • CHAIN DETECTED* Mode Total Batch Limit Condition Action Universal JetScan may have Remove all notes from the stacker and place them on the hopper.
  • Page 16 Denomination Sub Total Batch Count FACING ERROR Mode Total Batch Limit Condition Action Universal JetScan has identified Correctly face the note, return it to the hopper, and press Start. a note that is incorrectly faced. Denomination Sub Total Batch Count REMOVE HOPPER TRAY Mode Total...
  • Page 17 Action, Step 2 Feed rollers in hopper rotate. Entanglement and drawing-in hazard. Keep exposed long hair, neckties, jewelry and loose clothing away from feed rollers. DO NOT PRESS ANY KEY while manually rotating feed rollers. Next either: • Move jammed notes forward/back by manually rotating the large, black feed rollers. Rotating the large, black feed rollers will rotate all other shafts and rollers in the machine.
  • Page 18 Action, Step 5 Return hopper to the operating position. Press Start. Rerun all notes that were in the top hopper and bottom stacker at the time of the jam. These two screens will sequentially flash: NO CALL CHECK NOTE PRESS KEY Condition Action Universal JetScan cannot...
  • Page 19 Denomination Sub Total Batch Count REMOVE STRANGER Mode Total Batch Limit Condition Action Universal JetScan has detected Remove the top note in the stacker and press Start. a note of a different denomination from those being counted and has stopped. This stranger note is the top note in the stacker.
  • Page 20 These two screens will sequentially flash: This line could show SUSPECT DOCUMENT several different suspect-document codes. For details, refer to the code CHECK NOTE chart below. PRESS KEY Condition Action Universal JetScan sensors have Inspect the top note in the stacker. Next there are three options: •...
  • Page 21 If the message the right, left or both doubles continues to appear, call a local Cummins Allison service representative. sensors. These three screens will sequentially flash: WARNING –...
  • Page 22 Cummins-Allison Corp. has endeavored to make the content of this document accurate and complete, but this information is subject to correction or change without prior notice. This manual contains proprietary information of Cummins-Allison Corp. It is intended solely for the information and use of parties authorized by Cummins Allison to maintain the equipment described herein.

This manual is also suitable for:

Universal jetscan 4163Universal jetscan 4166Universal jetscan 4169
