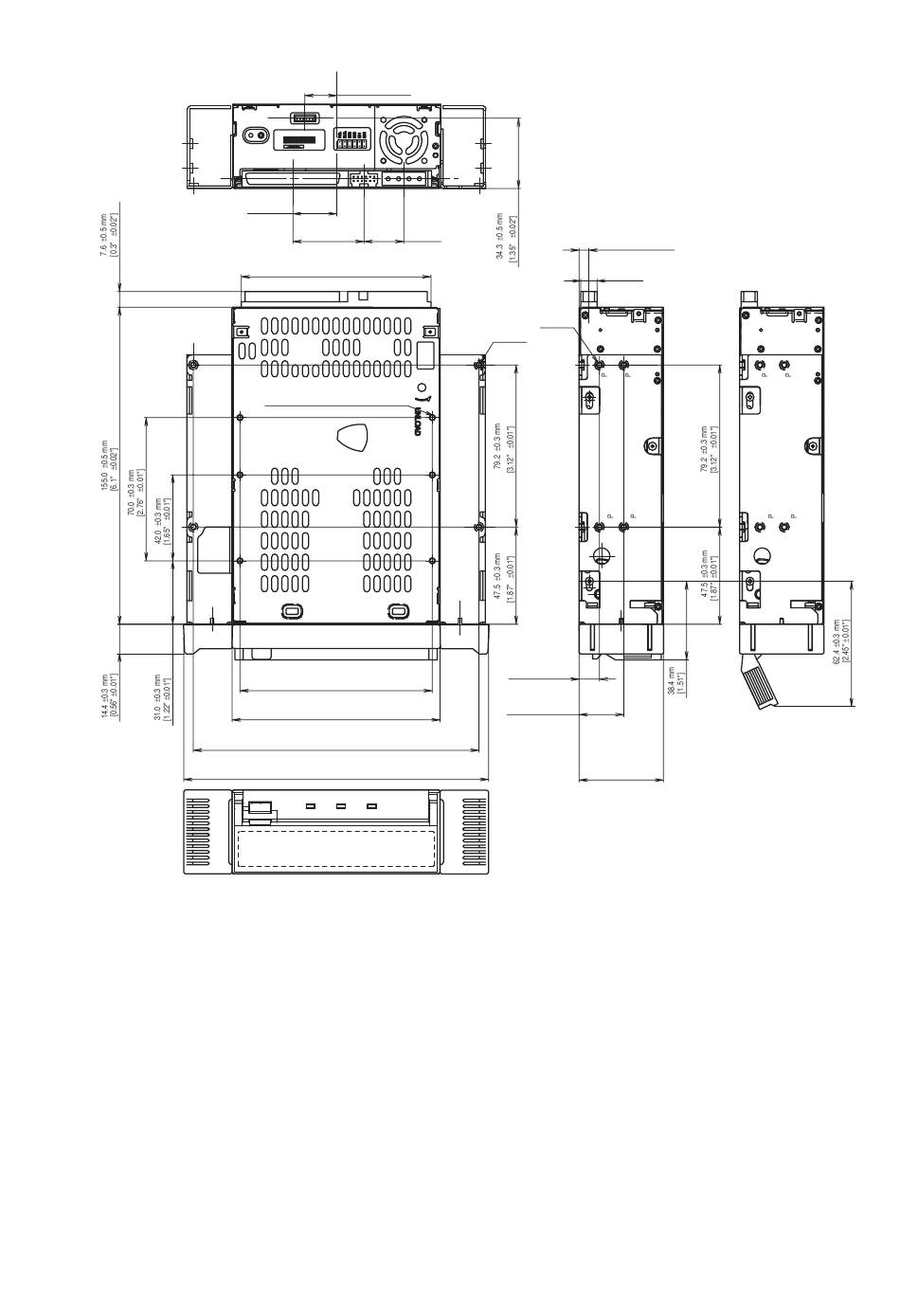

5.25"標準高度(SDX-400C/R)的安裝孔位
21.465 mm
[0.85"]
6-M3(depth 2.5mm (0.10") max.)
15.6 ±0.5 mm
[0.61" ±0.02"]
SDX-400C/R
0101
34.75 mm
19.48 mm
[1.37"]
[0.77"]
92.71 mm
[3.65"]
94.0 ±0.3 mm
[3.7" ±0.01"]
101.6 ±0.5 mm
[4" ±0.02"]
139.6 ±0.5 mm
[5.5" ±0.02"]
149.0 ±0.5 mm
[5.87" ±0.02"]
4.7 ±0.5 mm
[0.19" ±0.02"]
8 mm
[0.31"]
4-3M
4-M3
9.9 ±0.5 mm
[0.39" ±0.02"]
21.8 ±0.5 mm
[0.86" ±0.02"]
41.2 ±0.5 mm
[1.62" ±0.02"]
