RIESE & MULLER Birdy Replacement Manual

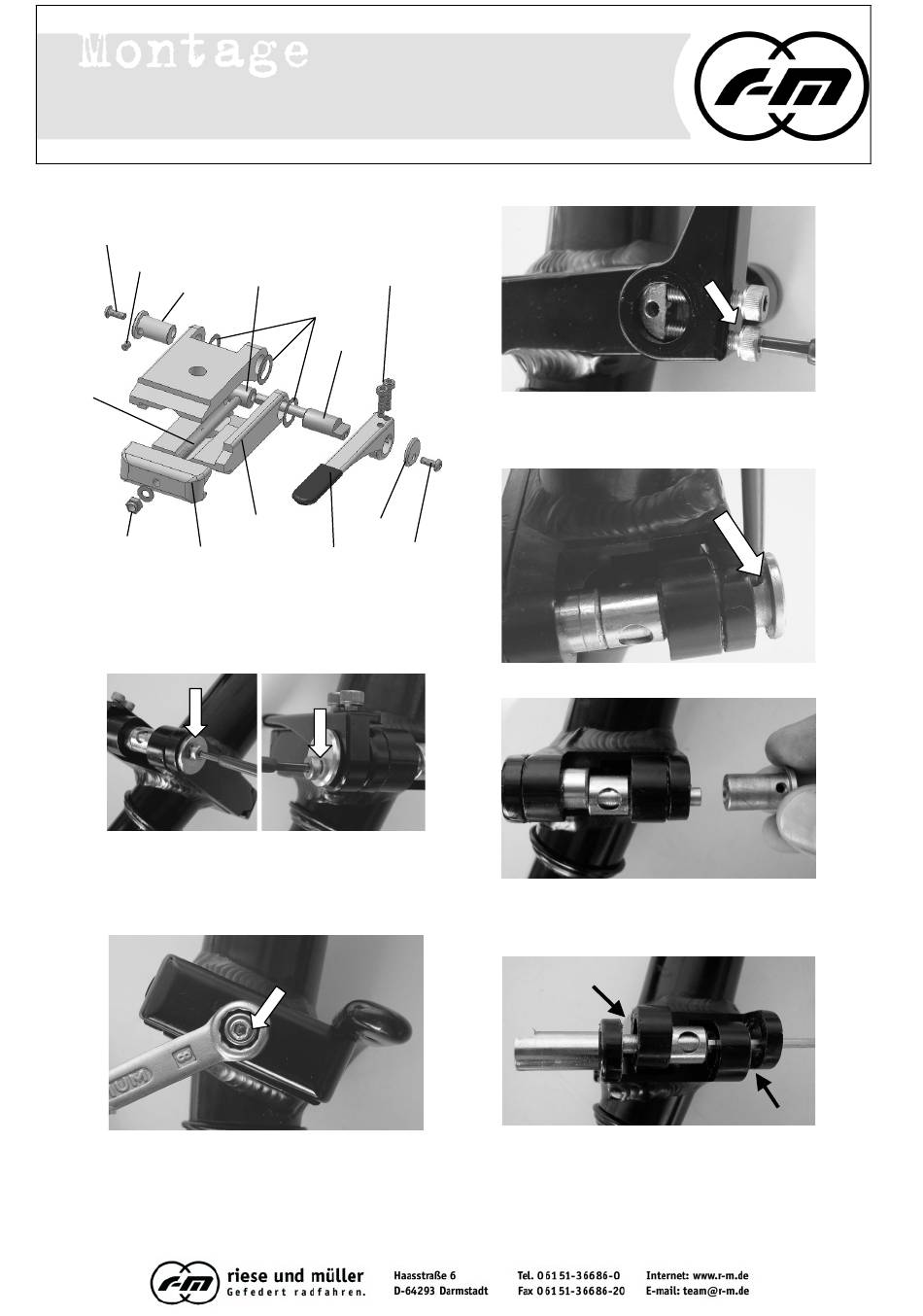

Birdy/Equinox: replacement of sleeve at folding hinge
P:\08_Anleitungen\Fahrradmontagen\GB-WORD-2002\BE Hülse austauschen-GB-2006-07-07.doc / Stand: 2006-08-24
The silver sleeve at the new folding hinge has to be re­
placed against a black clamp. Please read the following
instructions for the replacement.
Bolt M4, right, incl. washer
Grub screw
Bolt
Tension rod
Nut
& washer Cone
Disassembly
1.
Remove both bolts M4 at the left and right side of
excenter. Remove the cap.
2.
Remove nut with a 8mm wrench. Hold the tension
rod with a 2.5mm allen key while loosening the nut
(insert the allen key into the tension rod, see
arrow).
3.
Bolt M4x16(2x)
Sleeve
washer (3x)
Excenter
Folding hinge
Cap
plate (2x)
Bolt M4, left
Lever
4.
Open the lever and loosen the two bolts M4x16 by a
half turn. Then pull off the lever.
5.
Push the excenter to the right side (use a plastic
hammer). Then loosen the grub screw at the bolt
(2mm allen key, one turn is enough).
6.
Pull of the bolt at the right side.
7.
Push out the excenter to the left side.
ATTENTION: The stem is loose now and could fall
down. Take care of the washers A (see arrows).
A
8.
Take out tension rod and cone. Disassemble tension
rod, cone and sleeve.
Page 1 of 3
