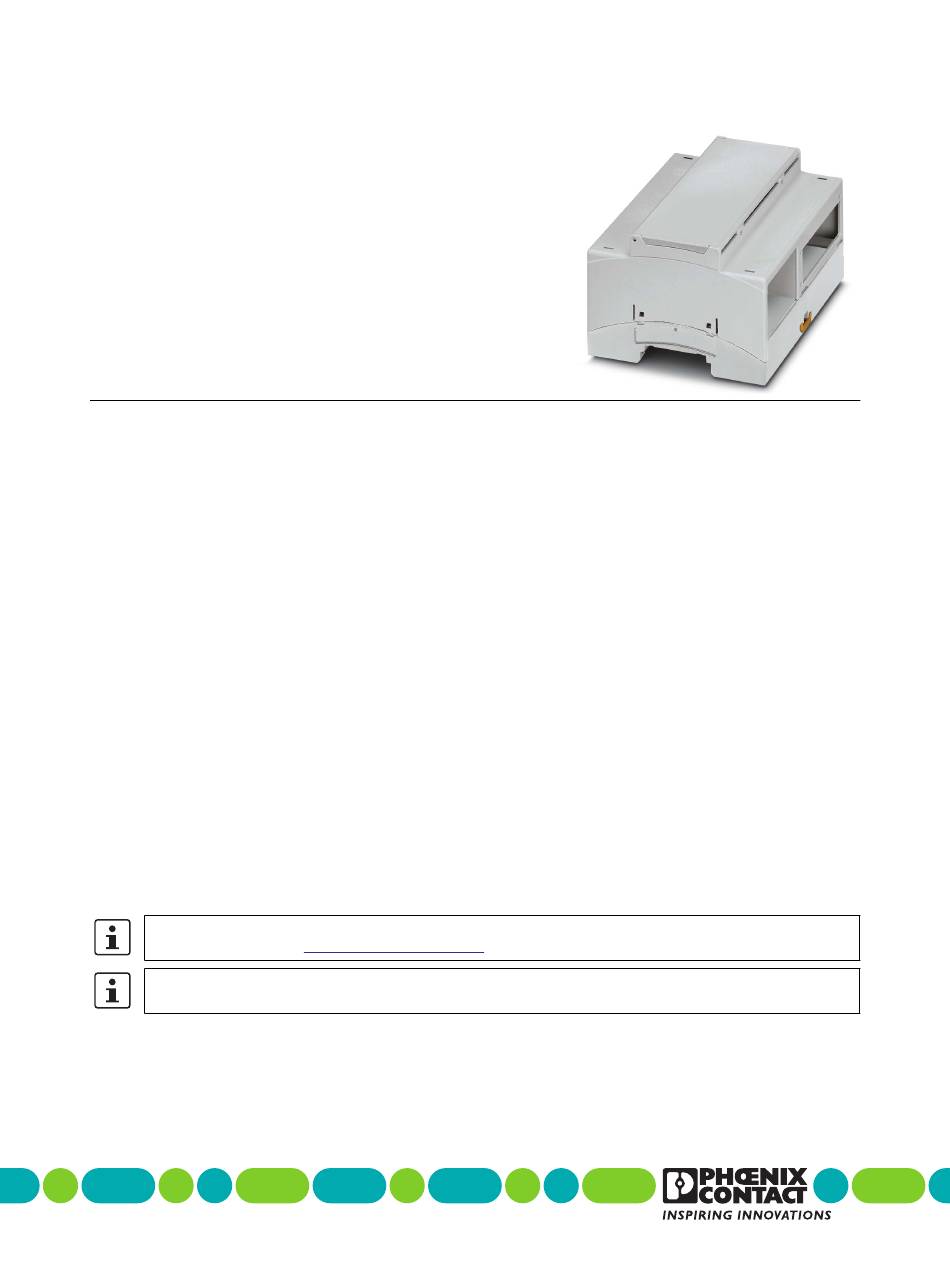

RPI-BC 107,6 DEV-KIT KMGY
RPI-BC housing system
Data sheet
107161_en_00
1
Description
The RPI-BC housing system is designed to accommodate a
Raspberry Pi computer. The housing can be used with
Raspberry Pi models A+, B+, B2, and B3. Further PCBs can
also be inserted in the housing in addition to the Raspberry
Pi board.
Integration in distributor housing is possible since the RPI-
BC housing system complies with DIN 43880. The housing
can be mounted on a TS 35 DIN rail or on a wall.
The RPI-BC housing system consists of a special BC
housing (overall width 107.6) and a PCB holder for
mounting the Raspberry Pi board.
The HBUS DIN rail connector can be used to connect
together several RPI-BC housings or other BC housings.
This housing can be combined with the BC DEV-KIT to
create an I/O system (BC 107,6 DEV-KIT KMGY, 2202525).
The BC DEV-KIT is a set comprising BC housing and PCB
terminal blocks. An appropriate perfboard is also available
for the BC DEV-KIT.
Make sure you always use the latest documentation.
It can be downloaded at phoenixcontact.net/products.
This document is valid for all products listed in "Ordering data" on page 2.
© PHOENIX CONTACT 2016-04-15
Table of contents
1 Description ..................................................................1
2 Ordering data...............................................................2
3 Technical data .............................................................3
4 Overview of the housing system ..................................4
5 Dimensions..................................................................5
5.1 PCB dimensions of additional PCBs ....................5
5.2 Dimensions of upper housing part .......................7
5.3 Installation example .............................................8
5.4 Dimensions of PCB holder...................................9
5.5 Dimensions of adapter.........................................9
5.6 Dimensions of DIN rail connector.......................10
Advertisement
Table of Contents
Related Manuals for Phoenix Contact RPI-BC
Summary of Contents for Phoenix Contact RPI-BC
-
Page 1: Table Of Contents
© PHOENIX CONTACT 2016-04-15 Description Table of contents 1 Description ..............1 The RPI-BC housing system is designed to accommodate a Raspberry Pi computer. The housing can be used with 2 Ordering data...............2 Raspberry Pi models A+, B+, B2, and B3. Further PCBs can 3 Technical data .............3... -
Page 2: Ordering Data
Perfboard, including socket strips for the GPIO connection, solder rings for RPI-BC INT-PCB SET 2202994 PTSM header, and PTSM header Socket strip, for connecting the RPI-BC INT-PCB SET perfboard (or another PSTD 0,65X0,65/40-2,54 2202992 additional PCB) to the GPIOs of the Raspberry Pi computer... -
Page 3: Technical Data
RPI-BC 107,6 DEV-KIT KMGY Technical data RPI-BC housing system Mounting NS 35 DIN rail or wall mounting Temperature range -40°C ... +105°C Degree of protection according to DIN EN 60529 IP20 Dimensions, W x H x D 107.6 mm x 89.7 mm x 62.2 mm PCB, maximum usable area Raspberry Pi board, plus 8200 mm²... -
Page 4: Overview Of The Housing System
Overview of the housing system Figure 1 RPI-BC housing system Housing cover Upper housing part Perfboard (optional), RPI-BC EXT-PCB HBUS SET Perfboard (optional), RPI-BC INT-PCB SET Raspberry Pi board (not supplied as standard) PCB holder Lower housing part including base latch... -
Page 5: Dimensions
PCB dimensions of additional PCBs PCB for DIN rail connector 38,5 Figure 2 Dimensions of PCB RPI-BC EXT-PCB HBUS SET, 2202995 Connection area for the pin strip for connecting the DIN rail connector (PSTD 0,65X0,65/18-3IS-2,54, 2202993) PCB thickness 1.6 mm ±0.2 mm Perforated grid 2.54 mm... - Page 6 RPI-BC 107,6 DEV-KIT KMGY PCB for the GPIO connection Figure 3 Dimensions of PCB RPI-BC INT-PCB SET, 2202994 Connection area for the pin strip for the GPIO connection (PSTD 0,65X0,65/40-2,54, 2202992) Connection area for the header for (PTSM 0,5/ 4-HH-2,5-THR WH R32, 1814867) PCB thickness 1.6 mm ±0.2 mm...
-
Page 7: Dimensions Of Upper Housing Part
Dimensions of upper housing part (14,3) (3,8) (1,93) 107,6 (49,78) Figure 4 Dimensions of housing Removable fin Position of PCB Latching for PCB RPI-BC EXT-PCB HBUS SET Latching for PCB RPI-BC INT-PCB SET Mounting holes for adapter 7 / 13 107161_en_00 PHOENIX CONTACT... -
Page 8: Installation Example
RPI-BC 107,6 DEV-KIT KMGY Installation example 89,7 Figure 5 Installation example Lower housing part TS 35-7,5 or TS 35-15 x 1,5 DIN rail Housing cover DIN rail connector 8 / 13 107161_en_00 PHOENIX CONTACT... -
Page 9: Dimensions Of Pcb Holder
RPI-BC 107,6 DEV-KIT KMGY Dimensions of PCB holder 89,7 Figure 6 Dimensions of PCB holder Dimensions of adapter 57,6 17,5 Figure 7 Dimensions of the adapter for mounting the Raspberry Pi A+ model (RPI-BC A+-ADAPTER ATGY, 2202906) 9 / 13 107161_en_00 PHOENIX CONTACT... -
Page 10: Dimensions Of Din Rail Connector
RPI-BC 107,6 DEV-KIT KMGY Dimensions of DIN rail connector 37,1 EN 50022, NS 35 x 7,5 Figure 8 Dimensions of HBUS DIN rail connector and NS 35 DIN rail Dimensions for a BC 107,6 UT HBUS BK 107.6 mm 10 9... -
Page 11: Mounting The Rpi-Bc Housing With Raspberry Pi
RPI-BC 107,6 DEV-KIT KMGY Mounting the RPI-BC housing with Raspberry Pi All parts latch together by hand. No tools are required. • Place the upper housing part with the cover side on the work surface. • The removable fin is labeled in the upper housing part. - Page 12 RPI-BC 107,6 DEV-KIT KMGY • Fit the PCB holders provided onto the Raspberry Pi. Make sure that the arrow on the PCB holder is pointing in the direction of the SD card slot. • Insert the plastic catches in the holes provided on the Raspberry Pi.
- Page 13 The housing can be mounted directly on a wall or on a mounting plate. Pull out the base latch as far as it will go for mounting. PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany 13 / 13 107161_en_00...
