1. Introduction ....................................................... 3
1.1 System features ........................................... 3
3. Installation ......................................................... 7
and cables .......................................................... 9
3.6 SIM card insertion ...................................... 12
3.9 Panel reset .................................................. 13
3.10 Factory default restore ............................ 13
4. Programming ................................................... 14
4.1 General guidance ....................................... 14
controls ....................................................... 14
LED indicators ............................................ 14
Control keys ................................................ 15
4.1.2 Feedback sounds ............................... 16
menu option ..................................................... 16
Permit is enabled ........................................ 16
4.2.2 Selecting options ................................ 17
4.2.3 Exiting the installer mode ................... 17
4.3 Setting installer codes ............................... 17
codes .......................................................... 18
4.4 Zones and devices ..................................... 18
menu options .............................................. 18
Enrolling a Wired Input .................................... 20
4.4.3 Deleting a device ............................... 23
4.4.5 Replacing a device ............................. 24

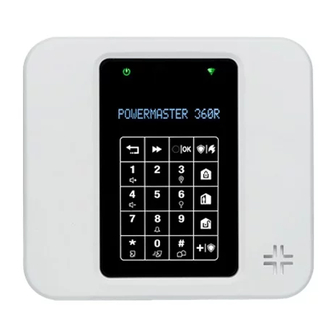

PowerMaster-360R
Installer's Guide
V19.4

Table of Contents

settings ........................................................ 26
mode ........................................................... 26
4.5 Control panel .............................................. 27
chart & menu options................................... 27
4.5.2
exit/entry procedures ................................... 28
4.5.3 Configuring zones ............................... 29
interface ...................................................... 31
(missing device) .......................................... 33
4.6 Communication .......................................... 35
chart & menu options .................................... 35
cellular connection ....................................... 36
stations ........................................................ 38
users ........................................................... 42
alarm verification ......................................... 42
4.6.7 Broadband .......................................... 44
4.6.8 WiFi .................................................... 44
4.7 PGM Output................................................. 45
4.7.1 General Guidance .............................. 45
4.7.2 PGM Output Configuration ................. 45
4.7.3 Entering Daytime Limits ...................... 47
4.8 Custom names ............................................ 47
4.8.1 Custom zone names ........................... 47
4.9 Diagnostics ................................................. 49
& menu options ........................................... 49
4.9.2 Testing wireless devices ..................... 49

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerMaster-360R and is the answer not in the manual?

Questions and answers

Related Manuals for Visonic PowerMaster-360R

Summary of Contents for Visonic PowerMaster-360R

  • Page 1: Table Of Contents

    ............26 3. Installation ............7 4.5 Control panel ..........27 3.1 LED indicators and connections ....7 4.5.1 General guidance – Control panel flow- 3.2 Installing the PowerMaster-360R battery chart & menu options........27 and cables ............9 4.5.2 Configuring arming/disarming 3.4 PowerMaster-360R connections ....
  • Page 2 APPENDIX H. Glossary ........80 4.14 Operation mode ........55 APPENDIX I. Compliance with standards .... 82 4.14.1 General guidance – Operation mode PowerMaster-360R Quick user guide ....84 menu ............55 4.14.2 Select setting ........55 4.14.3 BS8243 Setup ........55 4.14.4 DD243 Setup ........

  • Page 3: Introduction

    PowerMaster-360R is a regulated intrusion panel that combines Wi-Fi and Z-Wave radios for Smart Home automation applications. The PowerMaster-360R is a professional intrusion panel with battery backup for up to 12 hours. It also provides communication backup through a cellular 2G or 3G network. This backup provides protection even in the case of infrastructure failure.
  • Page 4 Module Installation (section 3.4). and GPRS or Ethernet communication, the 2. Configure camera settings: refer to the PowerMaster-360R is able to provide the Next CAM PG2 Installation Instructions. Monitoring Station with clips captured in 3. Enable fire and personal alarm alarm situations.
  • Page 5 PG2 / SMD-427 PG2 Installation flood. Instructions. Reporting to private The PowerMaster-360R system can be To configure notifications to Private users and/or programmed to send notifications of alarm phones: refer to the PowerMaster-360R...

  • Page 6: Choosing The Installation Location

    Install wireless magnetic contacts in a vertical position and as high up the door or window as possible.  Install wireless PIR detectors upright at the height specified in the relevant installation manual.  Locate repeaters high on the wall mid-distance between the transmitters and the control panel. D-307083 PowerMaster-360R Installer's Guide...

  • Page 7: Installation

    Keys E. Smart Home Service Indicator F. WiFi indicator G. Micro USB connection H. 5V DC power connection LAN connection External view of cable outputs Internal cable connections Figure 3.1 a – LED indicators and connections D-307083 PowerMaster-360R Installer's Guide...
  • Page 8 P. SIM card holder Q. Battery plug socket R. GSM module S. Electronic unit T. Enroll LED U. (+) button Add Z- Wave devices (-) button Delete Z- Wave devices Figure 3.1 b – Internal panel view D-307083 PowerMaster-360R Installer's Guide...

  • Page 9: Installing The Powermaster-360R Battery And Cables

    3. Installation 3.2 Installing the PowerMaster-360R battery and cables To open the panel, use a coin or 3 mm flathead screwdriver to rotate the lock by 90 degrees counter clockwise to the unlocked position. Use minimal force to pull the panel from the base.
  • Page 10 To place the panel on the base, align the two tabs of the base with the slots on the panel. 10) Close and hold the panel to the base. 11) Rotate the lock by 90 degrees clockwise to the locked position. D-307083 PowerMaster-360R Installer's Guide...

  • Page 11: Powermaster-360R Connections

     When the configurator setup is complete, disconnect the micro USB cable from the PowerMaster-360R. 5. Place the panel back on the base, align the two tabs on the base with the slots on the panel and return the screw to the locked position.

  • Page 12: Gsm Connection And Configuration

    GSM modem auto detection is activated after reset that is after power-up or after exiting the Installer Mode menu. This action causes the PowerMaster-360R to automatically scan the GSM COM ports for the presence of a GSM modem. In the event that the GSM modem auto detection fails and the modem was previously enrolled in the control panel, the message Cel Remvd Cnfrm is displayed on the Configurator’s Virtual or Touch Keypad.

  • Page 13: Panel Reset

    2. If Back to Factory is successful the green LED blinks 3 time, a success beep sounds, and the panel immediately initiates software reset. Note: If the Back to Factory procedure fails, the red LED lights constantly for 3 seconds and a failure beep sounds. D-307083 PowerMaster-360R Installer's Guide...

  • Page 14: Programming

    Note: If you switch on the control panel a long time after inserting batteries into the accessories devices you must open and then close the cover of the PowerMaster-360R to activate the tamper switch. Alternatively, remove and reinsert the battery into the device.

  • Page 15: Control Keys

    OK to select the desired option (also designated as in this guide). To return to the previous options, repeatedly press the Home . To exit the programming menu, press Away D-307083 PowerMaster-360R Installer's Guide...

  • Page 16: Feedback Sounds

    (see also [1] in Step 1 above).  To configure the panel to comply with user permission requirements - see option #91 User Permit in section 4.5.8. D-307083 PowerMaster-360R Installer's Guide...

  • Page 17: Selecting Options

    The system exits the INSTALLER MODE menu and returns to the normal disarm state while showing the READY display. 4.3 Setting installer codes The PowerMaster-360R system provides two installer permission levels with separate installer codes, as follows:  Master Installer: The Master Installer is authorized to access all Installer Mode menu and sub-menu options. The default code is: 9999 (*).

  • Page 18: Identical Installer And Master Installer Codes

    ADD TO SOAK TEST To enable the Soak Test for device zones. 4.4.6 DEFINE DEFAULTS To customize the defaults of the device's parameters according to your personal 4.4.7 preferences for each new device enrolled in the system. D-307083 PowerMaster-360R Installer's Guide...

  • Page 19: Adding New Wireless Devices

    Installer Code, or to allow access to the programming menus. Notes: The system will display NOT NETWORKD until the 2 stage of all registered devices is completed. The Soak Test on pre-enrolled zones can be activated only when the zone is fully enrolled. D-307083 PowerMaster-360R Installer's Guide...

  • Page 20: Enrolling A Wired Input

    If enrollment is successfully completed, the PowerMaster-360R sounds the Success Tune and the Virtual or Touch Keypad momentarily shows DEVICE ENROLLED and then displays the device details.
  • Page 21 EXIT Enrollment exits the enrollment procedure and returns to Step 1 bringing you back to the ADD NEW DEVICES menu. Location List Location Location Name Location Name Location Name Name Attic Dining Room Hall Utility Room* Kitchen Back door Downstairs Yard Wired PSU Custom1  Basement Emergency Wired Siren* Bathroom Fire Custom2  D-307083 PowerMaster-360R Installer's Guide...
  • Page 22 Monitoring Station (and does not depend on the Abort Time). Notes: 1. Opening/closing the Guard keybox causes the PowerMaster-360R to signal the Monitoring Station. 2. Operates with the magnetic contact device with auxiliary input.

  • Page 23: Deleting A Device

    Scroll the Device Group, identify (by zone and/or ID number) the exact device you wish to replace, for ID No. 120-1254 example: Z01: Motion Sensor > and press the button. The display prompts you <OFF> to delete. To delete the device, press the (OFF) button. D-307083 PowerMaster-360R Installer's Guide...

  • Page 24: Modifying Or Reviewing A Device

    Scroll the Device Group, identify (by zone and/or ID number) the exact device you wish to replace, for example: K03: Keyfob > ID No. 300-0307. If you try enrolling a new device of a different type than the replaced device, the PowerMaster-360R will reject the new device and the Virtual or Touch Keypad display will read WRONG DEV.TYPE.

  • Page 25: Configuring Soak Test Mode

    All Soak test zones will be reset to start a new test upon occurrence of one of the following: 1) Power up of the system; Setup of Factory Default; Change in system Soak Time. D-307083 PowerMaster-360R Installer's Guide...

  • Page 26: Defining Configuration Defaults For Device Settings

    4.4.8 Updating devices after exiting installer mode When exiting the Installer mode, the PowerMaster-360R panel communicates with all devices in the system and updates them with the changes that have been performed in their Device Settings configuration. During the updating period, the display indicates DEV UPDATING 018 where the number (for example, 018) is a countdown of the remaining number of devices yet to be updated.

  • Page 27: Control Panel

    Behavior 21:SWINGER STOP 43:PANEL SIREN 63:NOT READY 22:CROSS ZONING 44:SIREN TIME 64:MISS/JAM ALRM When done  to 45:STROBE TIME 65:SMOK FAST MIS Step 2 Miscellaneous 46:SIREN ONLINE 80: 3 PARTY H.A 91:USER PERMIT 4.5.8 93:SOAK PERIOD D-307083 PowerMaster-360R Installer's Guide...

  • Page 28: Configuring Arming/Disarming And Exit/Entry Procedures

    Options: normal (default); restrt+arm home; restart>reentry and end by exit. Note: In some PowerMaster-360R variants, this menu is displayed in the Operation Mode only (see section 4.14). Define whether or not the user will be allowed to perform quick arming or not. Once quick 05:QUICK ARM arming is permitted, the control panel does not request a user code before it arms the system.

  • Page 29: Configuring Zones

    D: During entry delay, the system can be disarmed using keyfobs or by code using the Configuration device (PC or mobile) (on entry all.). Note: In some PowerMaster-360R variants, this menu is displayed in the Operation Mode only (see section 4.14).

  • Page 30: Configuring Alarms And Troubles

    Note: In some PowerMaster-360R variants, this menu is displayed in the Operation Mode only (see section 4.14). The PowerMaster-360R can be configured to provide a delay before reporting an alarm to the 37:ABORT TIME Monitoring Station (not applicable to alarms from 24H SILENT and EMERGENCY zones).

  • Page 31: Configuring Siren Functionality

    PowerManage server, see the PowerManage User's Guide. Note: This feature is not applicable in the USA. Select the length of time allowed by the system to abort a Fire alarm. The PowerMaster-360R 40:ABORT FIRE T.
  • Page 32 Options: always ON and OFF after 10 sec (default). The Screen Saver option (when activated) replaces the status display on the Virtual or 56:SCREEN SAVER Touch Keypad with PowerMaster-360R display if no key is pressed during more than 30 with partition disabled seconds.

  • Page 33: Configuring Jamming And Supervision (Missing Device)

    61:JAM DETECT detected and reported or not. If any of the jam detection options is selected, the system will not allow arming under jamming conditions. The PowerMaster-360R provides several jam detect and reporting options to comply with the following standards: Note: Jamming is identified by the message system jammed displayed on the Virtual or Touch Keypad.

  • Page 34: Configuring Miscellaneous Features

    2. If a change is made to the period of time of the Soak Test while the zone is currently being tested, this will restart the Soak Test. 3. The start of the Soak Test period is defined in the factory from 9 AM (09:00). D-307083 PowerMaster-360R Installer's Guide...

  • Page 35: Communication

    PowerMaster-360R offers a variety of communication means including Cellular GSM, GPRS, EMAIL, MMS or SMS and IP via broadband internet connection.

  • Page 36: Configuring Gsm-Gprs (Ip) - Sms Cellular Connection

    Define whether the system will report events to the Monitoring Stations' SMS receivers SMS REPORT via the SMS Channel. For further information, see section 4.6.3 options 26 & 27. Options: disable (default); enable. The name of the product is PowerLink3 IP Communicator D-307083 PowerMaster-360R Installer's Guide...
  • Page 37 GSM call every 28 days sending a test message either to the first SMS number (if exists) or alternatively first private telephone number. Options: Disable (default) or Every 28 days. Select the IP protocol used to transfer data over the internet/GPRS. TRANS. PROTOCOL Options: TCP (default); or UDP. D-307083 PowerMaster-360R Installer's Guide...

  • Page 38: Configuring Event Reporting To Monitoring Stations

    4.6.3 Configuring event reporting to monitoring stations The PowerMaster-360R control panel is designed to report alarm, alerts, troubles and other events and messages to two Monitoring Stations C.S.1 and C.S.2 via Cellular i.e. GPRS (IP) & SMS or Broadband IP communications channels.
  • Page 39 28:RCVR 1 DNS and 29:RCVR 2 DNS for details on how to enter the DNS name. If equipped with GSM module, the PowerMaster-360R can be programmed to report the event 26:SMS RCVR 1 messages defined in Report Events option (option 01) to two SMS Receivers via the GSM 27:SMS RCVR 2 SMS channel using a special SMS text format.
  • Page 40 Note: Alarms group has the highest priority and Alerts group has the lowest priority. The PowerMaster-360R allows you also to select which event groups will be reported to each of the two Monitoring Stations. The table below describes the available reporting options. The minus (-) symbol means but/less/except e.g.
  • Page 41  all(–alrm) Alarms All but alarms disable report None None Note: all means that all 5 Groups are reported including Trouble messages - sensor / system low battery, sensor inactivity, power failure, jamming, communication failure etc. D-307083 PowerMaster-360R Installer's Guide...

  • Page 42: Configuring Event Reporting To Private Users

    4.6.4 Configuring event reporting to private users The PowerMaster-360R system can be programmed to send various SMS event notifications such as alarm, arming or trouble events, if a GSM option is installed. The system can send the messages also to 4 emails, MMS and SMS telephone numbers via the server.

  • Page 43: Configuring Upload / Download Remote Programming Access Permissions

    4. Programming 4.6.6 Configuring upload / download remote programming access permissions Using a PC, the PowerMaster-360R can be configured (by upload/download) either locally or from remote via GPRS cellular communication. Local programming can be performed by directly connecting the computer to the panel's USB port using the Remote Programmer PC Software.

  • Page 44: Broadband

    ID# / 2 caller ID#, the PowerMaster-360R will call back the PowerManage server using IP RCVR 1 / IP RCVR 2 address as configured in Section 4.6.3, options 21 and 22. Note: Caller ID#1/ID#2 must contain at least 6 digits otherwise the process will not work.

  • Page 45: Pgm Output

    Options: disable (default); turn ON; turn OFF; activate PULSE. Note: In Soak Test mode and when BY MEMORY is enabled, the PGM will not be activated. Soak Test is not applicable for UL installations D-307083 PowerMaster-360R Installer's Guide...
  • Page 46 Determine the PGM output pulse time. This value is the same for all events (by ARM AWAY, by ARM HOME, by DISARM etc.) which were selected with "activate PULSE" option. pulse time 2s pulse time 30s; pulse time 2m; pulse time Options: (default); D-307083 PowerMaster-360R Installer's Guide...

  • Page 47: Entering Daytime Limits

    Bdrm. To change the name, at the blinking cursor, enter the Location name you wish and at the end, press confirm. When done, press to return. Note: To enter the Location name use the String Editor below. IMPORTANT! The editing of a custom zone name automatically deletes the original text. D-307083 PowerMaster-360R Installer's Guide...
  • Page 48 Exiting the edit screen and moves one level up to previous or top menu without saving the edit string. Exiting the edit screen and moves to the <OK> TO EXIT exit screen without saving the edit string. D-307083 PowerMaster-360R Installer's Guide...

  • Page 49: Diagnostics

    Unit is OK 4.9.2 Testing wireless devices The PowerMaster-360R enables to test the wireless devices attached to the panel. You can test all devices, one device at a time, display devices' status and review RF problems, in case of any.
  • Page 50 NOW communication test failed); NOT TST (results are shown without any performed test); NOT NET [device is not networked (not fully enrolled)]; NONE (keyfob 24Hr result); or EARLY (result of the last 24Hrs without statistics). D-307083 PowerMaster-360R Installer's Guide...

  • Page 51: Testing The Gsm Module

    Xxx <device name> <location> Select to terminate the diagnostics test. <OK> TO END 4.9.3 Testing the GSM module The PowerMaster-360R enables to test the panel’s integrated GSM module.    07:DIAGNOSTICS GSM/GPRS Please wait… Enter the GSM/GPRS menu, and press to initiate the GSM diagnostic test.

  • Page 52: Testing The Broadband/Powerlink Module

    1. When the button is pressed, the test result may take up to 4 min. before it is displayed. 2. If the Broadband Module is not registered to the PowerMaster-360R, the menu BROADBAND MODULE will not be displayed. The following table presents the list of messages that may be reported:...

  • Page 53: Testing The Wlan Module

    9 – “Eth. connected” Ethernet connection detected 4.10 User settings This USER SETTINGS menu provides you with a gateway to the user settings through the regular user menus. Refer to the PowerMaster-360R User's Guide for detailed procedures. D-307083 PowerMaster-360R Installer's Guide...

  • Page 54: Factory Default

    ENTER CODE: Notes: 1) For PowerMaster-360R with 2 installer codes, INSTALLER code and MASTER INSTALLER code, only the master installer code enables to perform the factory default function. 2) If the Soak Test is active, performing factory default will restart the Soak Test.

  • Page 55: Operation Mode

    4. Programming 4.14 Operation mode Note: The Operation Mode feature is applicable only in specific PowerMaster-360R variants. 4.14.1 General guidance – Operation mode menu This mode allows you to select an operation mode for the control panel according to specific compliance standards.

  • Page 56: Dd243 Setup

    Options: 10/15/30(ENTRY DELAY 1 default)/45/60(ENTRY DELAY 2 default) seconds; 3/4 minutes The PowerMaster-360R can be configured to provide a delay before reporting an alarm to the 10:ABORT TIME Monitoring Station (not applicable to alarms from FIRE, 24H SILENT and EMERGENCY zones).
  • Page 57 Options: 10/15/30(ENTRY DELAY 1 default)/45/60(ENTRY DELAY 2 default) seconds; 3/4 minutes The PowerMaster-360R can be configured to provide a delay before reporting an alarm to the 10:ABORT TIME monitoring station (not applicable to alarms from FIRE, 24H SILENT and EMERGENCY zones).

  • Page 58: Cp01 Setup

    (entry delay 2) allow you to program the length of these delays. Options: 30 (default)/45/60 seconds; 3/4 minutes The PowerMaster-360R can be configured to provide a delay before reporting an alarm to 10:ABORT TIME the monitoring station (not applicable to alarms from FIRE, 24H SILENT, EMERGENCY, GAS FLOOD and TEMPERATURE zones).

  • Page 59: Other Setup

    – During entry delay, the system can be disarmed using keyfobs or by code using the PowerMaster-360R Virtual or Touch Keypad. The Exit Delay time can be further adjusted according to your preferred exit route. The control...
  • Page 60 4. Programming Option Configuration instructions The PowerMaster-360R can be configured to provide a delay before reporting an alarm to the 10:ABORT TIME monitoring station (not applicable to alarms from FIRE, 24H SILENT and EMERGENCY zones). During this delay period, the siren sounds but the alarm is not reported. If the user disarms the system within the delay time, the alarm is aborted.

  • Page 61: Periodic Test

    The first siren enrolled in the panel sounds for 3 seconds after which the PowerMaster-360R system will automatically repeat the procedure for the next siren enrolled in the system until all sirens are tested.
  • Page 62 During testing, you can also check the signal strength indication of each device, (for further details, refer to the device Installation Instructions). At the end of the test process the panel will revert to: TEST ONE DEVICE. D-307083 PowerMaster-360R Installer's Guide...
  • Page 63 The following screen will appear: Please wait… and at the termination of the test will Depending on shock detector model, one of the following may appear instead: Zxx:Shk+AX / Zxx:Shk+CntG3 / Zxx:Shk+CntG2. D-307083 PowerMaster-360R Installer's Guide...

  • Page 64: Maintenance

    The GSM communicator is not able to  Move the Panel and GSM unit to another connect to the cellular network. location.  Enter and exit the Installer Mode menu  Disconnect GSM unit and install it again D-307083 PowerMaster-360R Installer's Guide...

  • Page 65: Replacing The Backup Battery

    Replacement and first-time insertion of battery pack is similar, see Figure 3.1b. Separate the panel from the base, see section 3.2 Installing the PowerMaster-360R battery and cables for details. After inserting the new battery pack correctly, return the panel to the base and place the screw in the locked position. The TROUBLE indicator is extinguished.

  • Page 66: Annual System Check

    6. Maintenance 6.4 Annual system check Note: The PowerMaster-360R system must be checked by a qualified technician at least once every three (3) years (preferably every year). The annual system check is designed to ensure proper operation of the alarm system by performing the following checks: ...

  • Page 67: Reading The Event Log

    The system erases the event log Press to revert to normal operating mode. Clicking the button repeatedly at any stage in the procedure takes you one level up with each click. Clicking the button will take you to <OK> TO EXIT. D-307083 PowerMaster-360R Installer's Guide...

  • Page 68: Appendix A. Led Icons And Keys

    APPENDIX A. LED icons and keys LED icons show the status of the PowerMaster-360R. Use the control keys to move through the menu items of the panel and the arming keys to arm or disarm the system. Other keys are designated for certain tasks for example, to review event logs.
  • Page 69 APPENDIX A. LED icons and keys Other Keys Function Chime ON/OFF Reviewing the event log Emergency Fire Panic Note: The key icons are used within this document. D-307083 PowerMaster-360R Installer's Guide...

  • Page 70: Appendix B. User Mobile Application With Powermaster-360R

    B2. Security and Smart Home using 3 Party application The home or property owner can access the PowerMaster-360R security and smart home system on a mobile device using a 3 Party application. From the application you can arm or disarm the system, switch on or off lights, A/C, etc.).

  • Page 71: Appendix C. Specifications

    Note: The PowerMaster-360R system allows you to authorize up to 48 people to arm and disarm the system by providing each with a unique 4 digit personal security code (code 0000 is not allowed, maximum number of variations of PIN codes for each user –...

  • Page 72: C3. Electrical

    32°F to 120°F (0°C to 50°C) Storage Temperature Range 5°F to 140°F (-15°C to 60°C) Humidity 93% relative humidity, @ 30°C (86°F) Size 158x114.5x36.5 mm (6.22x4.5x1.43 in.) Weight 225g (8 Oz) Color White Mounting Wall mount indoor D-307083 PowerMaster-360R Installer's Guide...

  • Page 73: C6. Peripherals And Accessory Devices

    PIR Camera Detectors: Next CAM PG2; Next CAM-K9 PG2 Note: A maximum of 15 PIR cameras are supported, but the panel will communicate to the Visonic PowerManage server only the first 10 clips received from the cameras. Smoke Detector: SMD-426 PG2, SMD-427 PG2...

  • Page 74: Appendix D. Working With Partitions

    Note: A Soak Test of Common areas cannot be initiated when one of its partitions is armed. When Soak Test of a Common area is active, an alarm event is ignored unless all the partitions that are assigned to the zone are armed. D-307083 PowerMaster-360R Installer's Guide...

  • Page 75: Appendix E. Detector Deployment & Transmitter Assignments

    All zones are chime off by default. Enter your own choice in the last column and program accordingly. E2. Keyfob Transmitter List Transmitter Data AUX button Assignments Type Holder No. Type Holder Skip exit delay or Arming instant Indicate the desired function (if any) Skip exit delay  Arming instant  D-307083 PowerMaster-360R Installer's Guide...

  • Page 76: E3. Emergency Transmitter List

    APPENDIX E. Detector Deployment & Transmitter Assignments E3. Emergency Transmitter List Tx # Transmitter Type Enrolled to Zone Name of holder E4. Non-Alarm Transmitter List Tx # Transmitter Enrolled to Zone Name of holder Assignment Type D-307083 PowerMaster-360R Installer's Guide...

  • Page 77: Appendix F. Event Codes

    Auto Arm Communicator taken out of operation Recent Close Detector mask restore Door Open Detector mask Fire Alarm Flood alarm Fire detector trouble Flood alarm restore Fire Restore Sensor Battery Restore Fire Detector Clean Sensor Battery Trouble D-307083 PowerMaster-360R Installer's Guide...

  • Page 78: F3. Understanding The Scancom Reporting Protocol Data Format

    Siren number 9 would report 809 Repeaters 831-850 Repeater number 4 would report 834 Expanders/Bus devices 851-875 Device number 2 would report 852 Troubles for: GSM module network fail 876 BBA bus trouble 877 Plink Guard 901- 999 For future use D-307083 PowerMaster-360R Installer's Guide...

  • Page 79: Appendix G. Sabbath Mode

    Sabbath and also when the control panel is armed. G2. Connection 1. Enroll an MC-302E to the PowerMaster-360R control panel (see section 4.4.2). 2. Configure the Input #1 setting option of the MC-302E to Normally Closed (refer to the MC-302E Installation Instructions, section 2.3).

  • Page 80: Appendix H. Glossary

    For example, if a parent wants to be sure that their child has returned from school and disarmed the system. Latchkey arming is only possible when the system is armed in the AWAY mode. D-307083 PowerMaster-360R Installer's Guide...
  • Page 81 State: AWAY, HOME, AWAY-INSTANT, HOME-INSTANT, LATCHKEY, FORCED, BYPASS. Status: AC fail, low battery, trouble, etc. User Codes: The PowerMaster-360R is designed to obey your commands, provided that they are preceded by a valid security access code. Unauthorized people do not know this code, so any attempt on their part to disarm or defeat the system is bound to fail.

  • Page 82: Appendix I. Compliance With Standards

    U.S Standards: (FCC) CFR 47 part 15 WARNING! Changes or modifications to this unit not expressly approved by the party responsible for compliance (Visonic Ltd.) could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 83 APPENDIX I. Compliance with standards WARRANTY Visonic Limited (the “Manufacturer") warrants this product only (the The Manufacturer shall be under no liability whatsoever arising out of the corruption "Product") to the original purchaser only (the “Purchaser”) against defective and/or malfunctioning of any telecommunication or electronic equipment or any workmanship and materials under normal use of the Product for a period of programs.

  • Page 84: Powermaster-360R Quick User Guide

    PowerMaster-360R Quick user guide Arming and disarming the system Step Operation User Actions Notes 1 Press the Partition Selection button and then A warning beep will be followed by any select a PARTITION (if Partition is enabled) – heard when selecting...
  • Page 85 Note: To quit at any stage and to revert to the READY display, click Device Locator: The PowerMaster-360R system has a device locator that helps you to identify open or troubled devices indicated on the LCD display. While the LCD displays an open or faulty device, the LED on the respective device flashes indicating it's me.

Table of Contents

Save PDF
