Celestron PowerSeeker 60EQ Quick Setup Manual

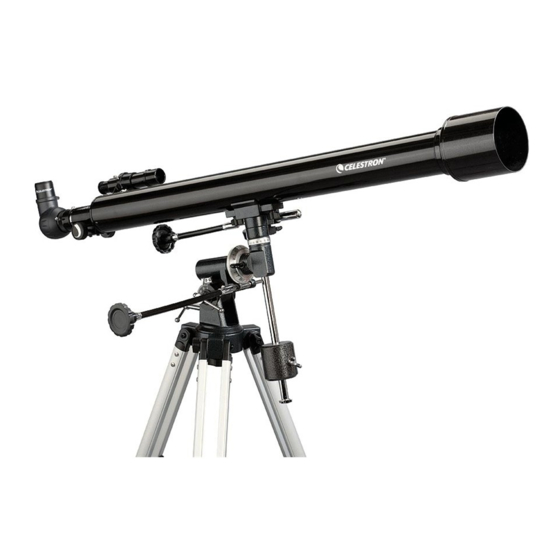

PowerSeeker 60EQ
1
Your PowerSeeker 60EQ includes: optical tube;
tripod with center leg brace; equatorial mount;
latitude adjustment screw; star diagonal; 2
eyepieces; a 3x barlow lens, 1.5x erect image
eyepiece; finderscope; 5 lb. counterweight;
counterweight bar; two slow motion cables;
eyepiece accessory tray;The Sky Level 1 software,
documentation including an owner's manual.
4
All three legs should be the same length to
provide a level platform for the telescope.
7
Locate the equatorial mount and place the
base of the mount through the hole in the
center of the tripod mounting platform.
Item #31132
Item# 21043
2
To set up the tripod, spread the legs outward
until they are fully extended and push down
center leg brace. Extend the center portion of
each of the three tripod legs down 6-8".
5
Place the accessory tray on top of the tripod's
center leg brace. Thread the tray into the
threaded hole in the center of the leg brace.
8
From underneath the tripod mounting platform,
thread the attached mounting bolt into the hole
on the bottom of the equatorial mount.
Questions or Problems with Set-up?
CONTACT:
Celestron Technical Support: 310
Quick Set-up Guide
3
Use the three tightening screws located at the
bottom of each leg to secure the extended legs
in place.
6
Properly assembled, the accessory tray should
appear as pictured above.
9
Thread the latitude adjustment screw into the
equatorial mount until it is touching the inside
of the mount.
. .
803 5955
