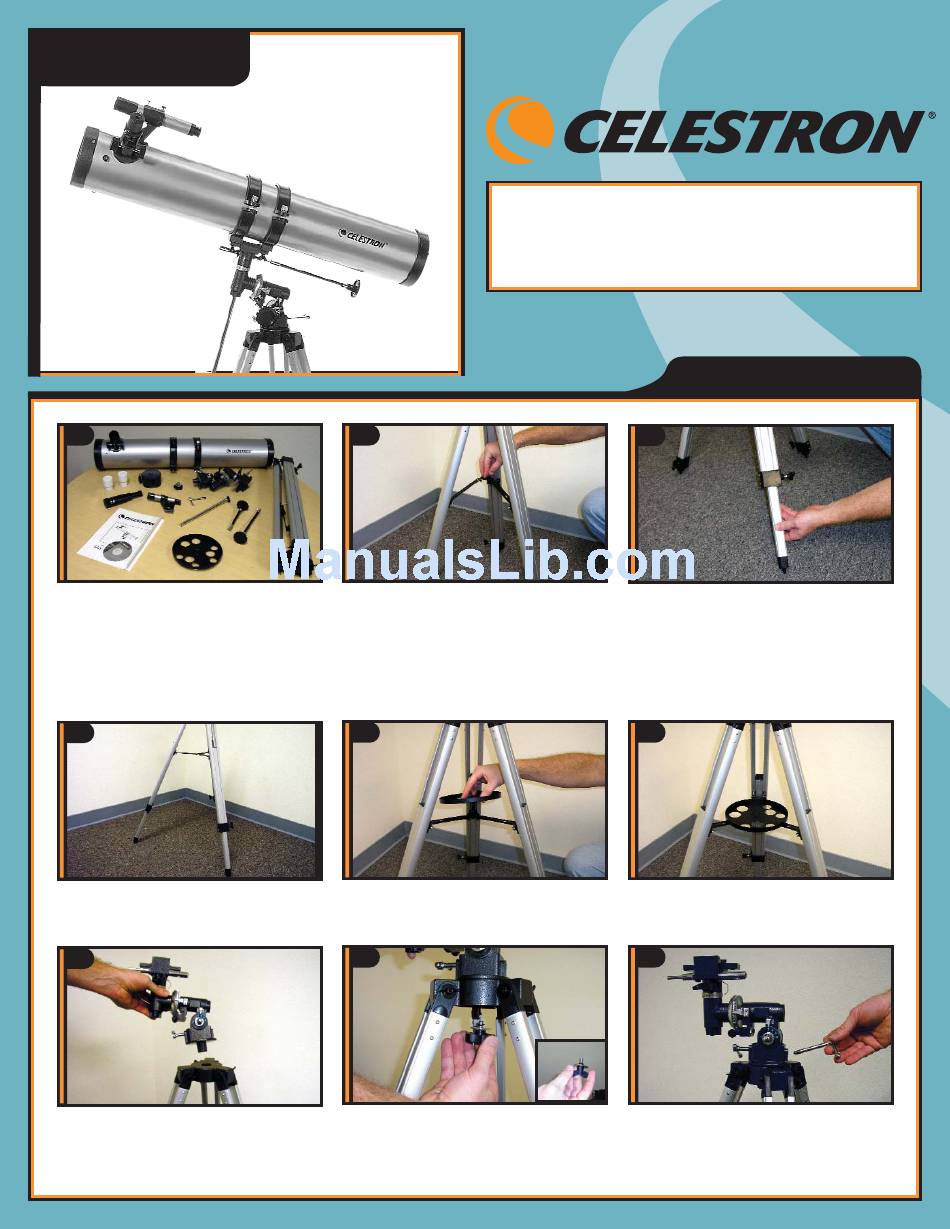

Celestron PowerSeeker 114EQ Quick Setup Manual

PowerSeeker 114
Item# 21045
1
Your PowerSeeker 114 includes: optical tube w/
tube rings attached; tripod with center leg brace;
equatorial mount; 2 eyepieces; a 3x barlow lens,
finderscope; 5 lb. counterweight; counterweight bar;
two slow motion cables; eyepiece accessory tray;
The Sky Level 1 software, documentation including
an owner's manual.
4
All three legs should be the same length to
provide a level platform for the telescope.
7
Locate the equatorial mount and place the
base of the mount through the hole in the
center of the tripod mounting platform.
Celestron Technical Support: 310
2
To set up the tripod, spread the legs outward
until they are fully extended and push down
center leg brace. Extend the center portion of
each of the three tripod legs down 6-8".
5
Place the accessory tray on top of tripod's
center leg brace. Thread the tray into the
threaded hole in the center of the leg brace.
8
From underneath the tripod mounting platform,
thread the mounting bolt with washer into the
threaded hole on the bottom of the equatorial
mount.
Questions or Problems with Set-up?
CONTACT:
Quick Set-up Guide
3
Use the three tightening screws located at the
bottom of each leg to secure the extended legs
in place.
6
Properly assembled, the accessory tray should
appear as pictured above.
9
Thread the latitude adjustment screw into the
equatorial mount until it is touching the inside
of the mount.
. .
803 5955
