Summary of Contents for Seek Thermal Reveal FirePRO

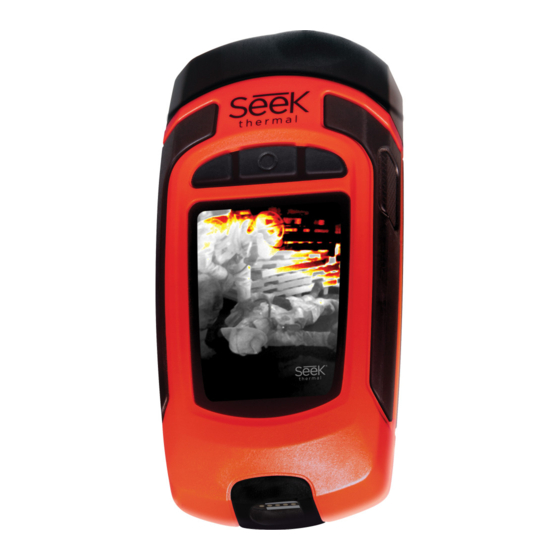

- Page 1 Reveal FirePRO Manual A comprehensive guide to understanding and operating your Thermal Imaging Camera (TIC) GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Table of Contents Product Registration Quick Start Charging the Battery Setting up your Device Home Screen Temperature color bar Reveal FirePRO schematic Modes Fire Survey Auto Menu Gallery Temperature Device 5.3.1 Date & Time 5.3.2 Language 5.3.3 Power 5.3.4 Flashlight 5.3.5... - Page 3 1 Registering your product • By sharing your name, email, and serial number, you enable us to send you product updates and tips and techniques. We can also expedite your warranty inquiries by knowing when and where you purchased. • NOTE: We do not – and will not- sell any consent or contact or personal data to any third-party! ...
-
Page 4: Quick Start
LEFT or RIGHT buttons are pressed. NOTE: Reveal FirePRO will provide up to 4 hours of scanning time with a full charge. Setting up your Device 1 To turn on your device, press the CENTER button and hold until the screen lights up. -
Page 5: Home Screen
The Seek Thermal watermark is located at the left-hand corner of the screen, and the battery life at the bottom right- hand corner of the screen. -
Page 6: Reveal Firepro Schematic

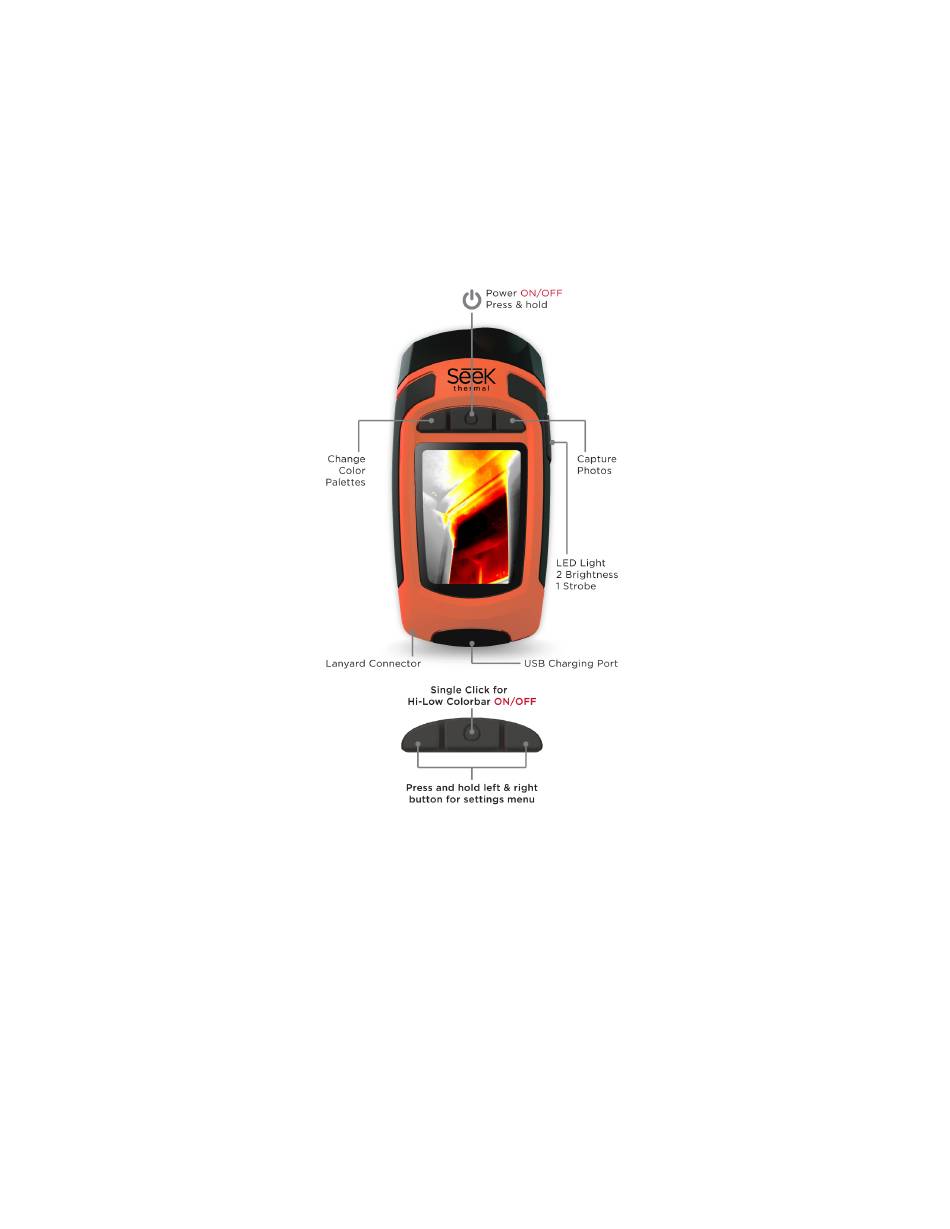

3 Reveal FirePRO Schematic GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 7: Modes
Modes The Reveal FirePRO has three different modes which have been optimized for First Responders. The following modes are as follows: 4.1 Fire- Displays an image in shades of black and grey which turn bright orange/red when areas of extreme heat are present. This mode is specifically designed for locating hotspots in fire during 360 size-ups and Overhaul. - Page 8 4.3 Auto – This is a demonstration mode and is best-suited for the classroom. which highlights areas of heat in red with colorful borders as the temperature decreases. While it’s seldom used in the field, it’s present simply to demo thermal imaging to third party observers To cycle through the different filters, press the LEFT button until you find the desired filter.
-
Page 9: Menu
Menu To access the menu, simultaneously press both the LEFT and RIGHT button and hold for at least one second. You will then be directed to the following screen: The Menu gives you access to your gallery, switching temperature settings from Fahrenheit to Celsius, device settings, your flashlight, and device information. -
Page 10: Device
Selecting ‘device’ opens a new screen that gives you the option of adjusting date, time and language, (settings that are setup when you first turn on your device) accessing flashlight and power settings, switching the Seek Thermal watermark that shows up while scanning ‘on’ or ‘off’, and restoring the device back to factory settings. -
Page 11: Watermark
‘off’. The flashlight will work regardless of whether or not the camera is OFF. 5.3.5 Watermark Press the CENTER button to turn the Seek Thermal watermark present at the bottom left of the scanning screen ‘on’ or ‘off.’ 5.3.6 Restore Clicking on this will restore, then reboot your device back to its factory settings. -
Page 12: Capturing A Photo
6 Capturing a Photo Taking a Photo 1 To take a photo, press the RIGHT button to capture an image. 2 The camera will immediately freeze frame and form a white border around the perimeter of the image. Because photo capture occurs instantaneously, the quality of the image will not be degraded if you accidently or abruptly move your camera while the bar is still loading. -
Page 13: Cleaning The Lens
Images taken with Reveal FirePRO may be directly downloaded by removing the rubber back door from the end of your camera and connecting the USB cable from your computer to the device. You can copy or drag photos to your computer (Mac or PC) for storage. -
Page 14: Help And Customer Support
Help and customer support We’re here to help! If you still need customer support for an issue not addressed above with your product, you may directly contact support within the camera under ‘menu’ à About à Get updates at. You may also email your request (*Note: Please include the information in the ‘About’... -
Page 15: Troubleshooting
10 Troubleshooting The device will not power on. a. Try plugging the device in with the supplied wall charger or another 1-amp-rated charger to ensure there is enough battery remaining. b. Try performing a hard system reset by holding down the CENTER button for thirty seconds, release and wait. - Page 16 SEEK THERMAL RETURN AND WARRANTY POLICY FOR SEEK THERMAL CAMERA PRODUCT EFFECTIVE AS OF SEPTEMBER 25, 2014 (“Policy Date”) Seek Thermal, Inc. (“Seek”) provides the following return and warranty policy (the “Return and Warranty Policy”) for its products purchased directly from Seek via telephone or Seek’s website, and a limited warranty for its thermal camera...
- Page 17 This Return and Warranty Policy shall be in effect as of the date listed above and may be revised at any time by Seek. Any purchaser of a Covered Product will only be bound by the version of the Return and Warranty Policy in effect at the time such purchaser purchased the Covered Product.
- Page 18 If Seek determines it has breached the limited warranties offered under this Return and Warranty Policy, we will either repair or replace the Affected Covered Product and Seek may provide a repaired or replacement Covered Product that is a refurbished product. Any provisions of repair or replacement will not extend the limited warranty period.
- Page 19 Terms without the permission of your legal guardian. Use of the Seek Products and Services is also governed by Seek Thermal's Privacy Policy, the most current version IMPORTANT – PLEASE READ CAREFULLY – THESE TERMS CREATE A LEGALLY BINDING AGREEMENT WHICH GOVERNS YOUR USE OF THE SEEK PRODUCTS AND SERVICES.
- Page 20 Activity Prohibitions. You agree that you will not, under any circumstances: Engage in any act that Seek Thermal deems to be in conflict with the spirit or intent of the Services, including but not limited to circumventing or manipulating these Terms;...
- Page 21 Copy, modify or distribute rights or content from any Seek Thermal site, including but not limited to content that contains or is protected by Seek Thermal's copyrights or trademarks or use any method to copy or distribute the content of the Services, except as specifically allowed in these Terms;...
- Page 22 Seek Thermal does not have to give you access or copies of any content you have submitted as part of the Services. Cancellation of Account. You may cancel any Account registered to you at any time by emailing Products Related Terms.
- Page 23 Services or anyone using an Account registered to you. Any required fees will be specified as part of the Services or when you must register your Account. Seek Thermal reserves the right in the future to charge fees for any parts of the Services that may have previously been offered without a fee.
- Page 24 Services, any violation by you of these Terms or any breach of the representations, warranties and covenants made by you herein. Seek Thermal reserves the right, at your expense, to assume the exclusive defense and control of any matter for which you are required to indemnify Seek Thermal and you agree to cooperate with Seek Thermal's defense of these claims.
- Page 25 Seek Thermal or you. The arbitrator will make any award in writing but need not provide a statement of reasons unless requested by a party.
- Page 26 Services. No amendment to the Terms or Privacy Policy shall apply to any dispute of which Seek Thermal had actual notice before the date of the amendment. If Seek Thermal revises these Terms or its Privacy Policy and seeks your consent to be bound by such...
- Page 27 Equitable Remedies. You acknowledge that the rights granted and obligations made under these Terms to Seek Thermal are of a unique and irreplaceable nature, the loss of which shall irreparably harm Seek Thermal and which cannot be replaced by monetary damages alone, so that Seek Thermal shall be entitled to injunctive or other equitable relief (without the obligations of posting any bond or surety or proof of damages) in the event of any breach or anticipatory breach by you.
