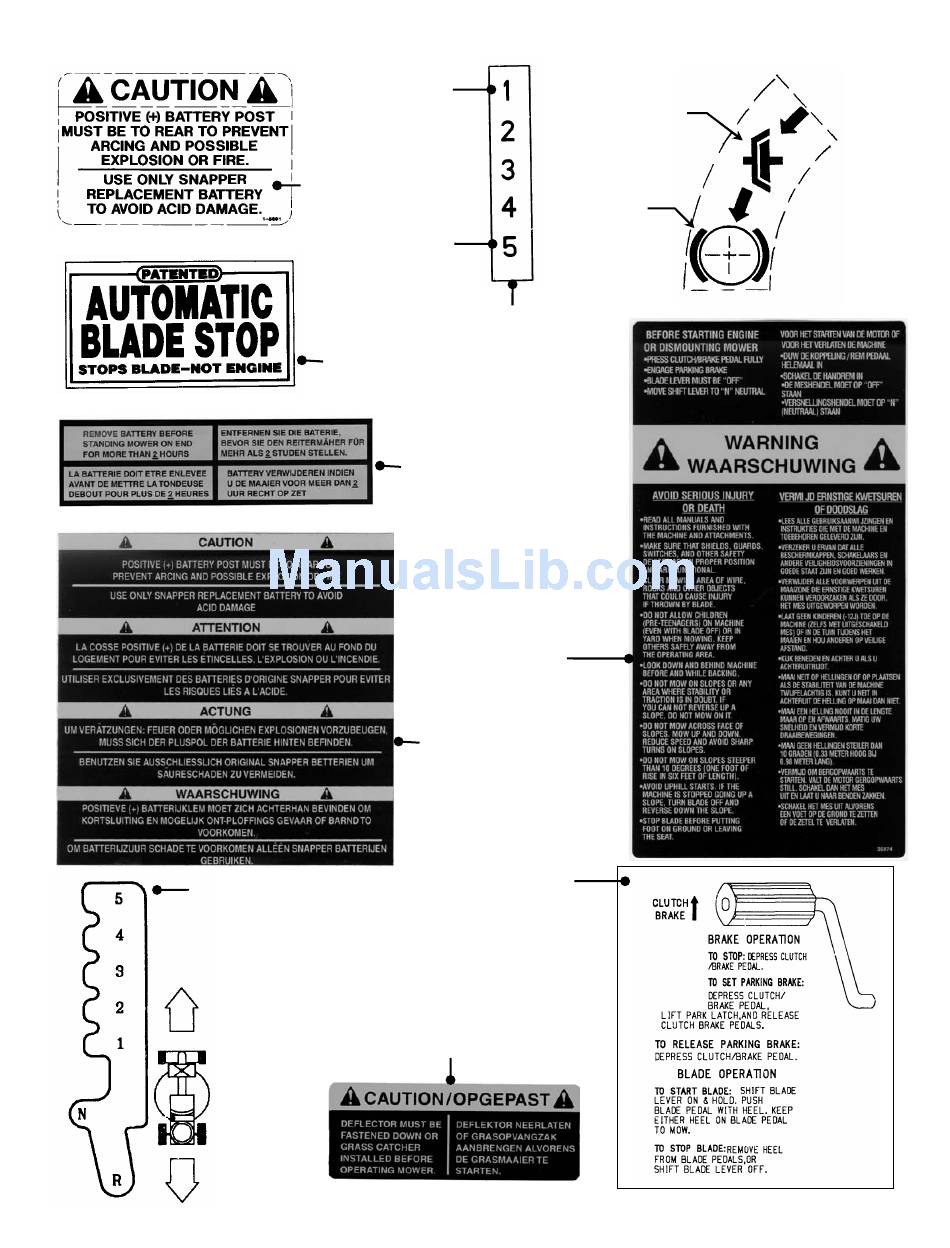

Section 1 – FAMILIARIZATION – DECALS / SYMBOLS
TRANSMISSION SHIFT
FAST
LEVER SYMBOLS
MACHINE FRONT
SLOW
NEUTRAL
REVERSE
MACHINE REAR
LOWEST
HEIGHT OF
CUT
BATTERY CAUTION
DECAL - 15691
HIGHEST
HEIGHT OF
CUT
HEIGHT OF CUT
DECAL - 46218
AUTOMATIC BLADE
STOP DECAL - 24072
BATTERY STORAGE
DECAL - 29948
SAFETY INSTRUCTION
DECAL - 35974
BATTERY CAUTION
DECAL - 29947
CLUTCH/BRAKE,
PARKING BRAKE,
BLADE OPERATION
DEFLECTOR CAUTION
DECAL 29839
8
TRACTION
CLUTCH
PARK
BRAKE
CLUTCH/BRAKE
DECAL - 2-8514
