Getting to Know the Adapter

This section contains a quick description of the

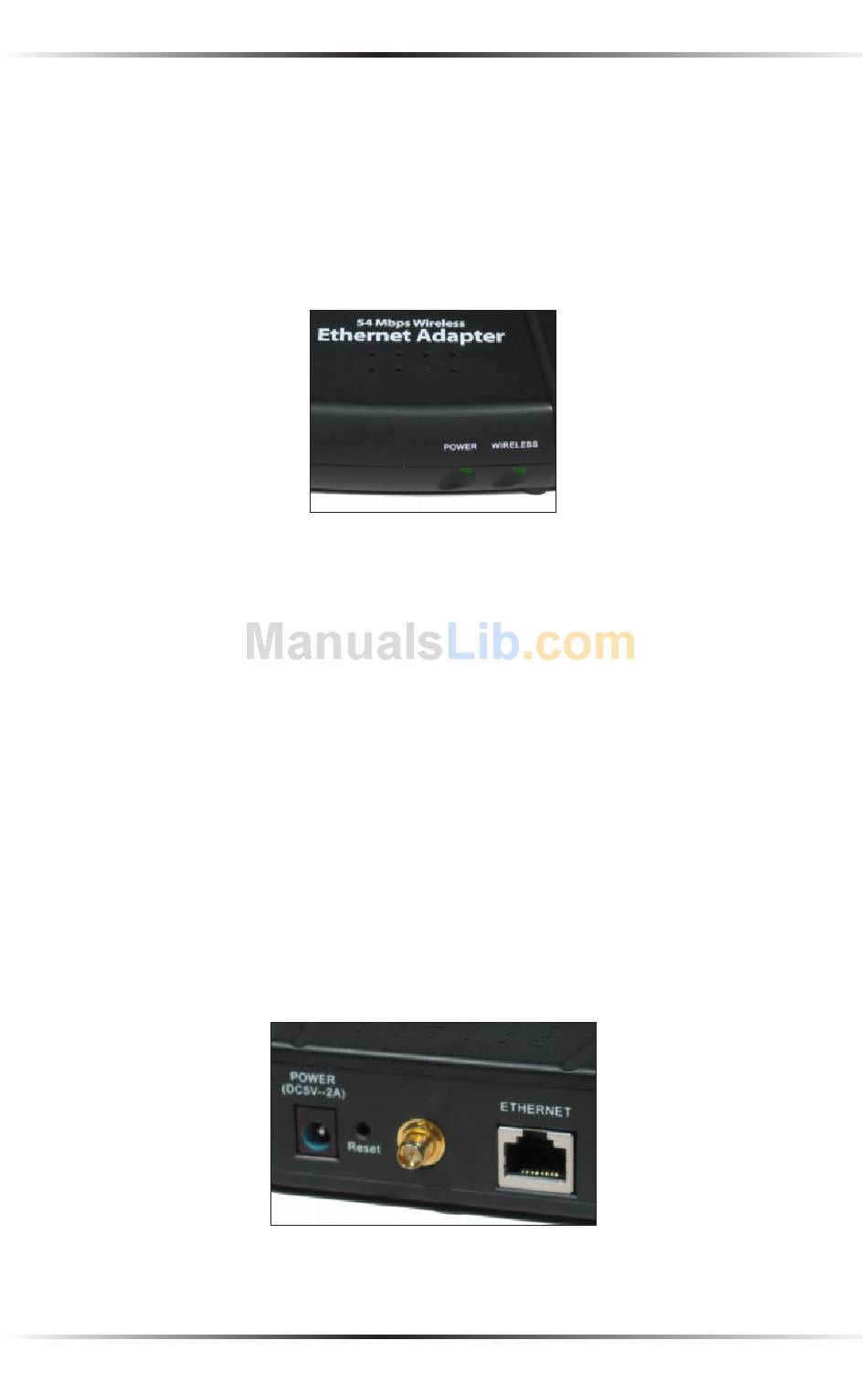

Front Panel
The Adapter's front panel contains two lights (
Power Light
The Power light glows green when the Adapter is powered on, and remains off
(or dark) when no power is present.
Wireless Light
The Wireless light glows solid green when the Adapter is connected to a wireless
network, and remains off (or dark) when not connected to a network. When the
Wireless light flickers, data traffic is moving across the wireless network
Rear Panel
The Adapter's rear panel contains three ports (Power, Antenna [unlabeled], and
Ethernet), as well as the Reset button.
Chapter 1 Introduction
LED
3
's external features.
Adapter
s): Power and Wireless.
.
