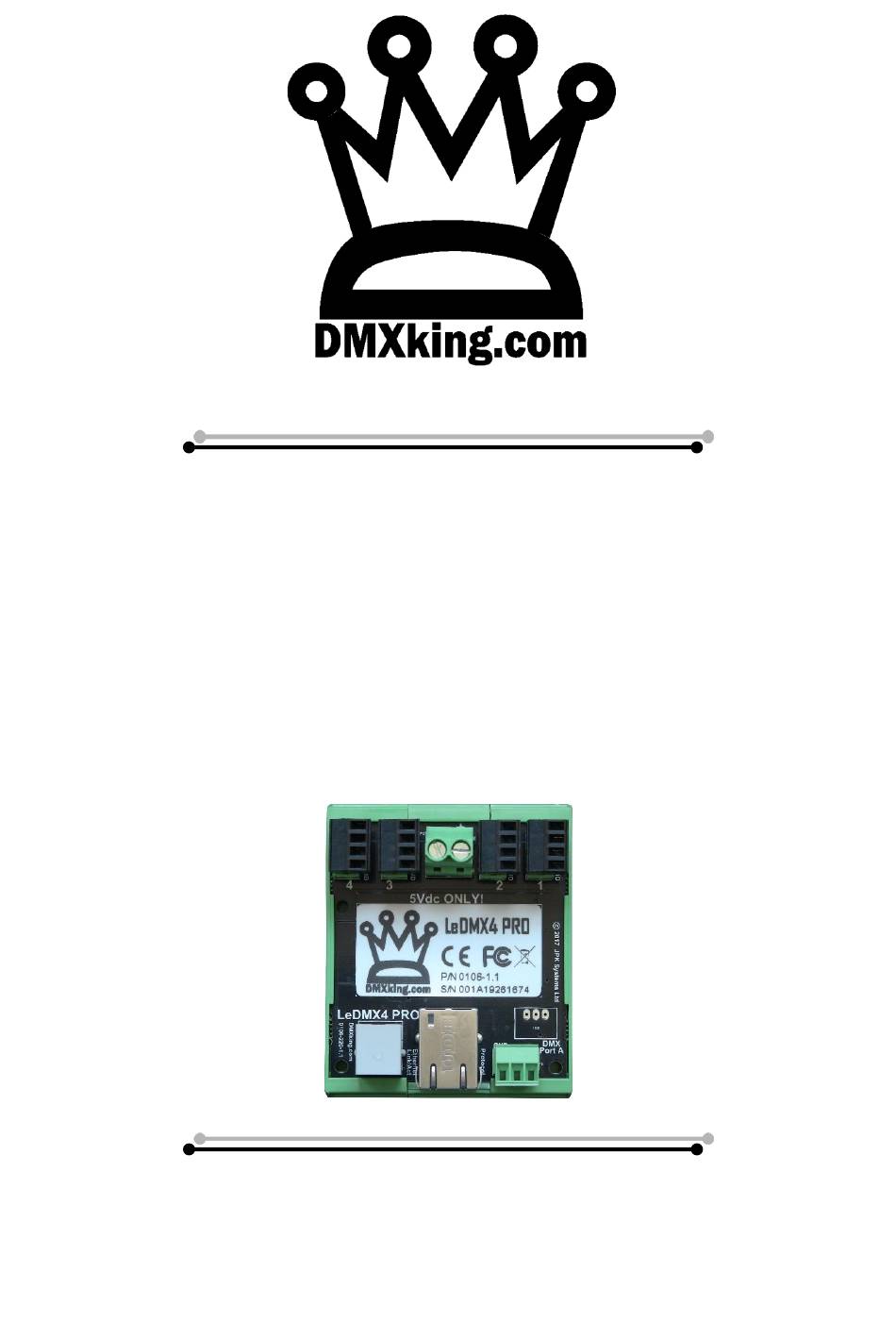

- Page 1 LeDMX4 PRO Interface USER MANUAL DMXking.com • JPK Systems Limited • New Zealand 0106-700-1.4...
-
Page 2: Table Of Contents
/ E1.31 Priority ..................................20 sACN / E1.31 Priority – DMX Receive ............................20 DMX512 In – Unicast / Broadcast / Multicast ..........................20 Compatible Software ................................21 Technical Specifications ................................22 DMXking.com • JPK Systems Limited • New Zealand 0106-700-1.4... - Page 3 Frequently Asked Questions ..............................22 Warranty ....................................23 DMXking.com Hardware Limited Warranty ..........................23 Declarations (FCC & CE) ............................... 23 Federal Communications Commission (FCC) Declaration of Conformity ..................23 EEC Declaration ..................................... 24 DMXking.com • JPK Systems Limited • New Zealand 0106-700-1.4...
-
Page 4: Introduction
In many LED pixel installations, especially where the majority of pixels may be running simultaneously at full brightness, it is necessary to inject DC power at various points along the pixel strip or string. Although the LeDMX4 PRO can only provide up to 5A per output port terminal block this is not a limitation since currents higher than that will require power injection along the strip anyhow. -
Page 5: Main Features
IMPORTANT: In many LED pixel installations, especially where the majority of pixels may be running simultaneously at full brightness, it is necessary to inject DC power at various points along the pixel strip or string. Although the LeDMX4 PRO can only DMXking.com •... - Page 6 5A per output port terminal block this is not a limitation since currents higher than that would require power injection along the strip anyhow. Contact DMXking technical support for additional advice. LeDMX4 PRO products consider Art-Net 00:0:0 to be Universe 1 (i.e. offset by 1) so there is an easy mapping between sACN/E1.31 and Art-Net.
-
Page 7: Connections
Warning not all pixel strips/products use the same wire color code. Double check the signal names match wire colors. − Optional DIN rail clips available for insulated board carrier supplied with unit. DMXking.com • JPK Systems Limited • New Zealand 0106-700-1.4... -
Page 8: Status Led Table
Network activity. Green = Link, Flash = Traffic TYPICAL APPLICATIONS LED Pixel Array LED Pixel Strip There are many pixel types and form factors available. Please check carefully when designing for your application. DMXking.com • JPK Systems Limited • New Zealand 0106-700-1.4... -
Page 9: Default Configuration
RGB 1 Universe Incoming Universes 1 thru 16 (Art-Net 00:0:0 – 00:0:F) LeDMX4 PRO products consider Art-Net 00:0:0 to be Universe 1 (i.e. offset by 1) so there is an easy mapping between sACN/E1.31 and Art-Net. Port Tabs (1-4) Parameter... -
Page 10: Configuration Utility
LeDMX4 PRO devices however we highly recommend using the latest version and updating firmware as well. OS X version 1.4+ is recommended for LeDMX4 PRO but may lag behind the Windows version when new features are added. Typically, parameters are set once during initial configuration and left untouched. If you are not confident in setting up network IP Address, Subnet Mask and Default Gateway parameters please get in touch with DMXking.com support and we’ll walk you... -
Page 11: Network Tab
Selecting “Firmware Update” will prompt for an appropriate firmware file and upload upon confirmation. A built in boot loader permits updating of the LeDMX4 PRO firmware. Note only signed encrypted firmware files from DMXking.com can be successfully loaded to ensure you won’t brick your device by accident. Future firmware releases for this product will be in the form 0106-500- VersionMajor.VersionMinor.enc... -
Page 12: Settings Tab - Firmware 3.3
SETTINGS TAB – FIRMWARE 3.3+ Make changes as required then click “Update” to save settings in your LeDMX4 PRO unit. The following table explains each of the settings parameters. Parameter Usage Update Rate Frequency LED strip receives updates from Incoming Universe data. Universe Sync takes precedence. - Page 13 Make changes as required then click “Update” to save settings in your LeDMX4 PRO unit. The following table explains each of the settings parameters. Parameter Usage Update Rate Frequency LED strip receives updates from Incoming Universe data. Universe Sync takes precedence.
-
Page 14: Settings Tab - Firmware 3.0 And Earlier
Art-Net wraps back to universe 00:0:0 again. Raw 1U/2U or RGB 1U/2U Pixel Mapping Modes are recommended unless your software package is not capable of re-mapping pixel locations. Most packages are now capable of this functionality which reduces processing requirements on the LeDMX4 PRO itself. -
Page 15: Port Tab - Pixel Outputs
DMX channel mapping to pixel elements. RGB, RBG, GRB, GBR, BRG, BGR, raw 1/2/3/4/5ch, 2ch swapped, RGBW, WRGB, WRBG, GRBW, Raw I+3ch, Raw 3ch 16bit, Raw 4ch 16bit, RGB 16bit, RGBW 16bit. Start Universe sACN/Art-Net Universe number pixels are mapped to. DMXking.com • JPK Systems Limited • New Zealand 0106-700-1.4... - Page 16 Raw 1U or Raw 2U mode is selected. Start Universe sACN/Art-Net Universe number pixels are mapped to. Note you must include this universe in your Incoming sACN/Art-Net universe table as well. DMXking.com • JPK Systems Limited • New Zealand 0106-700-1.4...
- Page 17 Pixel Count = 12, Null Pixels = 0, Start Universe = 1, Start Channel = 0. Pixel Group Size = 1 Pixel Group Size = 2 Reverse Order. Pixel Group Size = 1 DMXking.com • JPK Systems Limited • New Zealand 0106-700-1.4...
-
Page 18: Port Tab - Dmx512 Port
Art-Net protocol. When configured as DMX In a single Fixed IP address destination may be specified but in the majority of applications leaving this field at 0.0.0.0 is appropriate. Make changes to the applicable Port settings then click “Update”. DMXking.com • JPK Systems Limited • New Zealand 0106-700-1.4... - Page 19 0 = Force Art-Net broadcast mode, > 0 Art-Net II/3/4 unicast. Recall DMX snapshot at startup Recall snapshot scene at power on and output until Art-Net or sACN source received. Snapshot DMX button records current DMX output to snapshot memory. DMXking.com • JPK Systems Limited • New Zealand 0106-700-1.4...
-
Page 20: Recorder Tab
RECORDER TAB Please refer to the eDMX PRO Recorder manual for more information. This functionality is common to all eDMX PRO, LeDMX PRO and ultraDMX2 PRO devices. DMXking.com • JPK Systems Limited • New Zealand 0106-700-1.4... -
Page 21: Dmx Display Function
From firmware v3.3+ each node provides a brief status report indicating DMX frame rates, PIXel output rate, SYNC status, SHOW playback selection and RECorder status. Above an LeDMX4 PRO reports Port A at 0fps, Pixel output at 30fps with no synchronization present (Async mode) and the recorder state Idle. -
Page 22: Art-Net Node Name
Configure DMX In port universe to the same as a Pixel universe. Priority is 100. DMX In sACN Configure DMX In port universe to the same as a Pixel universe. Priority is defined by the Discovery Period slider (values of 0-200 valid). DMXking.com • JPK Systems Limited • New Zealand 0106-700-1.4... -
Page 23: Supported Merging Combinations
Art-Net I/II/3/4 device networks but still permit unicast only when Art-Net II/3/4 devices are used exclusively. For DMX IN sACN multicast frames will be generated when Fixed IP is 0.0.0.0 otherwise frames are unicast to the specified destination. DMXking.com • JPK Systems Limited • New Zealand 0106-700-1.4... -
Page 24: Compatible Software
These days almost any lighting or stage effect equipment may be controlled using DMX512 including LED pixels. The DMXking.com LeDMX4 PRO unit is a 4 Pixel Output + 1 DMX512 sACN/Art-Net device designed for use with computer-based show control and effect software. -
Page 25: Technical Specifications
By injecting power again (from the same power supply or another power supply) along the strip at intervals it is possible to mitigate the voltage drop effects. Higher voltage strips/pixels (12V or 24V) are usually less susceptible to color fade issues. DMXking.com • JPK Systems Limited • New Zealand 0106-700-1.4... -
Page 26: Warranty
Q: Can I use my LeDMX4 PRO 5V unit to run 12V pixels? A: Yes but you’ll need 2 power supplies. The first, a 5Vdc unit, powers only the LeDMX4 PRO unit. The second, a 12Vdc unit, powers only the LED pixels. Connect only DA/CLK and GND between the LED pixels and LeDMX4 PRO unit. Do not connect to V+ on the... -
Page 27: Eec Declaration
Pukekohe 2340 New Zealand declares that the product LeDMX4 PRO complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
