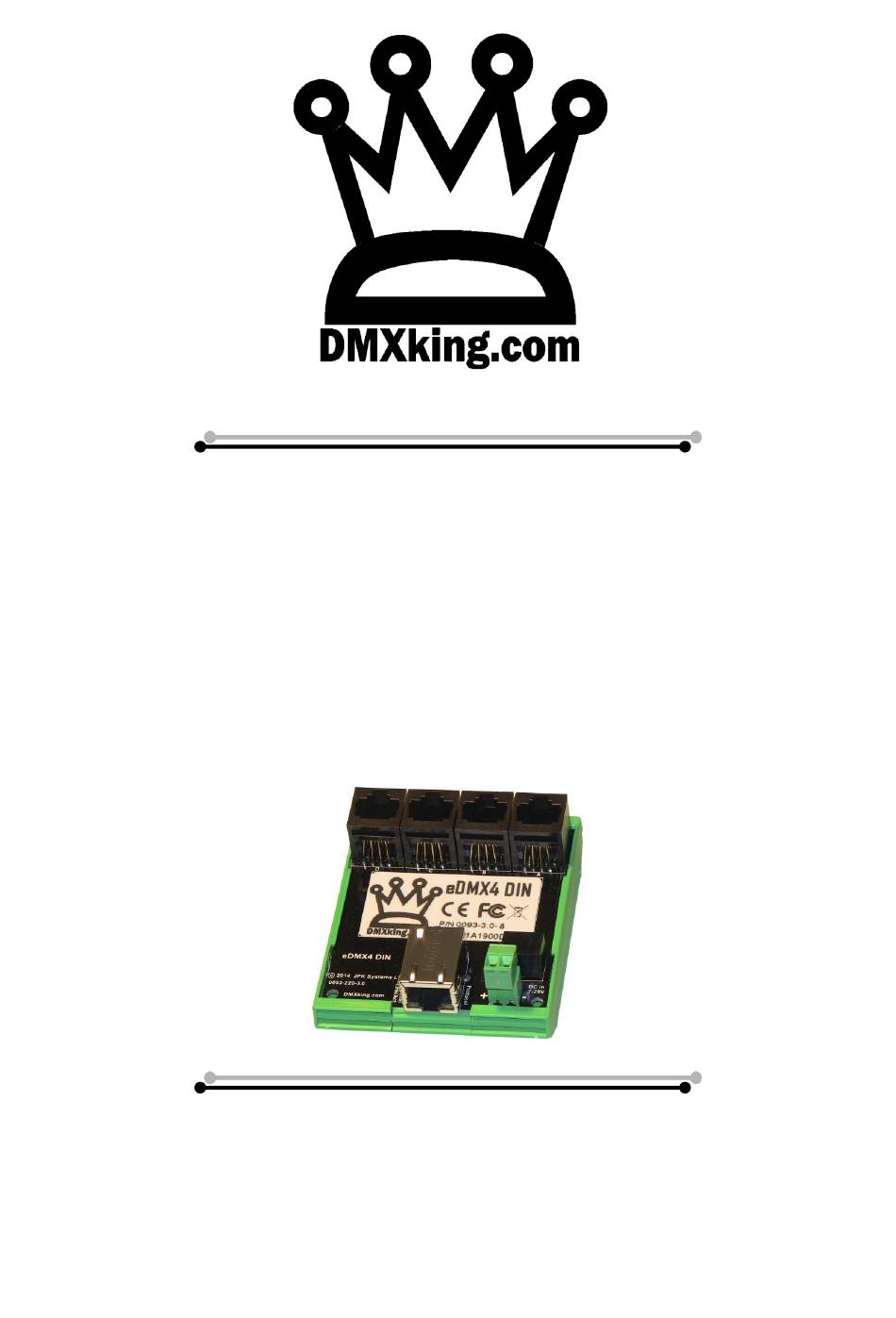

- Page 1 DIN Interface USER MANUAL DMXking.com • JPK Systems Limited • New Zealand 0093-700-3.1...
-
Page 2: Table Of Contents
Technical Specifications ................................13 Warranty ....................................13 DMXking.com Hardware Limited Warranty ..........................13 Declarations (FCC & CE) ............................... 13 Federal Communications Commission (FCC) Declaration of Conformity ..................13 EEC Declaration ..................................... 14 DMXking.com • JPK Systems Limited • New Zealand 0093-700-3.1... -
Page 3: Introduction
1. INTRODUCTION Thanks for purchasing a DMXking.com product. Our aim is to bring you high quality products with great features we know you’ll appreciate. We ship only what’s required which is why there’s no CD or printed manual in the box, this is part of our commitment to minimizing environmental impact which also translates into end user savings. -
Page 4: Status Led Table
If you are not confident in setting up network IP Address, Subnet Mask and Default Gateway parameters please get in touch with DMXking.com support and we’ll walk you through the process. DMXking.com • JPK Systems Limited • New Zealand... -
Page 5: Network Tab
Selecting “Firmware Update” will prompt for an appropriate firmware file and upload upon confirmation. A built in boot loader permits updating of the eDMX firmware. Note only signed encrypted firmware files from DMXking.com can be successfully loaded to ensure you won’t brick your device by accident. Future firmware releases for this product will be in the form 0083-500- VersionMajor.VersionMinor.enc... -
Page 6: Port Tab
0 = Force Art-Net broadcast mode, > 0 Art-Net II/III unicast. Recall DMX snapshot at startup Recall snapshot scene at power on and output until Art-Net or sACN source received. Snapshot DMX button records current DMX output to snapshot memory. DMXking.com • JPK Systems Limited • New Zealand 0093-700-3.1... -
Page 7: Dmx Display Function
Note Art-Net II unicast is not supported meaning only Art-Net broadcast streams are displayed. The DMX Display utility works with any manufacturers Art-Net hardware and can be useful for diagnostics and simple testing of DMX512 fixtures. DMXking.com • JPK Systems Limited • New Zealand 0093-700-3.1... -
Page 8: Art-Net Node Name
/ E1.31 Only sACN sources of the same Priority will be HTP or LTP merged. DMX In Configure DMX In port universe to the same as DMX Out port universe DMXking.com • JPK Systems Limited • New Zealand 0093-700-3.1... -
Page 9: Supported Merging Combinations
Art-Net I/II/3 device networks but still permit unicast only when Art-Net II/III devices are used exclusively. For DMX In sACN at present only multicast frames will be generated owing to a lack of sACN device discovery standard. DMXking.com • JPK Systems Limited • New Zealand 0093-700-3.1... -
Page 10: Compatible Software
LED screens, fog machines and laser displays. The DMXking.com eDMX4 DIN unit is a 4 universe Art-Net device designed for use with computer based show control software. It replaces an entire lighting console allowing the user to perform sophisticated shows with little more than a laptop. There are many free and commercial software packages available and by selecting Art-Net as your DMX device compatibility is guaranteed. -
Page 11: Media Servers / Vj
VISUALIZERS Capture http://www.capturesweden.com/ WYSIWYG http://www.cast-soft.com/ ESP Vision http://www.espvision.com/ SoftPlot http://www.stageresearch.com/products/SoftPlot9/SoftPlot9.aspx LD Assistant http://www.ldassistant.com/ MOBILE APPS Luminair (iPhone/iPad) http://www.synthe-fx.com/products/luminair LightingPad (iPhone/iPad) http://www.alcorn.com/products/lightingpad/index.html ArtNet DMX Remote (iOS) http://lightning-dmxcontrol.com/ LED Remote (iOS) http://arminarzani.com/en/ DMXking.com • JPK Systems Limited • New Zealand 0093-700-3.1... -
Page 12: Updating Firmware
7. UPDATING FIRMWARE A built in boot loader permits updating of the eDMX4 DIN firmware. Note only signed encrypted firmware files from DMXking.com can be successfully loaded. Firmware files are distributed with the eDMX Configuration Utility and are copied automatically to the installation directory. If a later firmware version hasn’t yet been packaged with the utility you can copy the .enc file into the installation directory manually. -
Page 13: Technical Specifications
Failure due to operator error or incorrect application of product. Opening the unit voids the warranty. What DMXking.com will do DMXking.com will repair or replace, at its sole discretion, the defective hardware. Return shipping costs from our service facility in New Zealand shall be free of charge. -
Page 14: Eec Declaration
Pukekohe 2340 New Zealand declare under our sole responsibility that our product eDMX4 DIN conforms to the requirements of Council Directives 89/336/EEC and 73/23/EEC and therefore complies with the requirements of Council Directive 73/23/EEC, (The Low Voltage Directive) on the...
