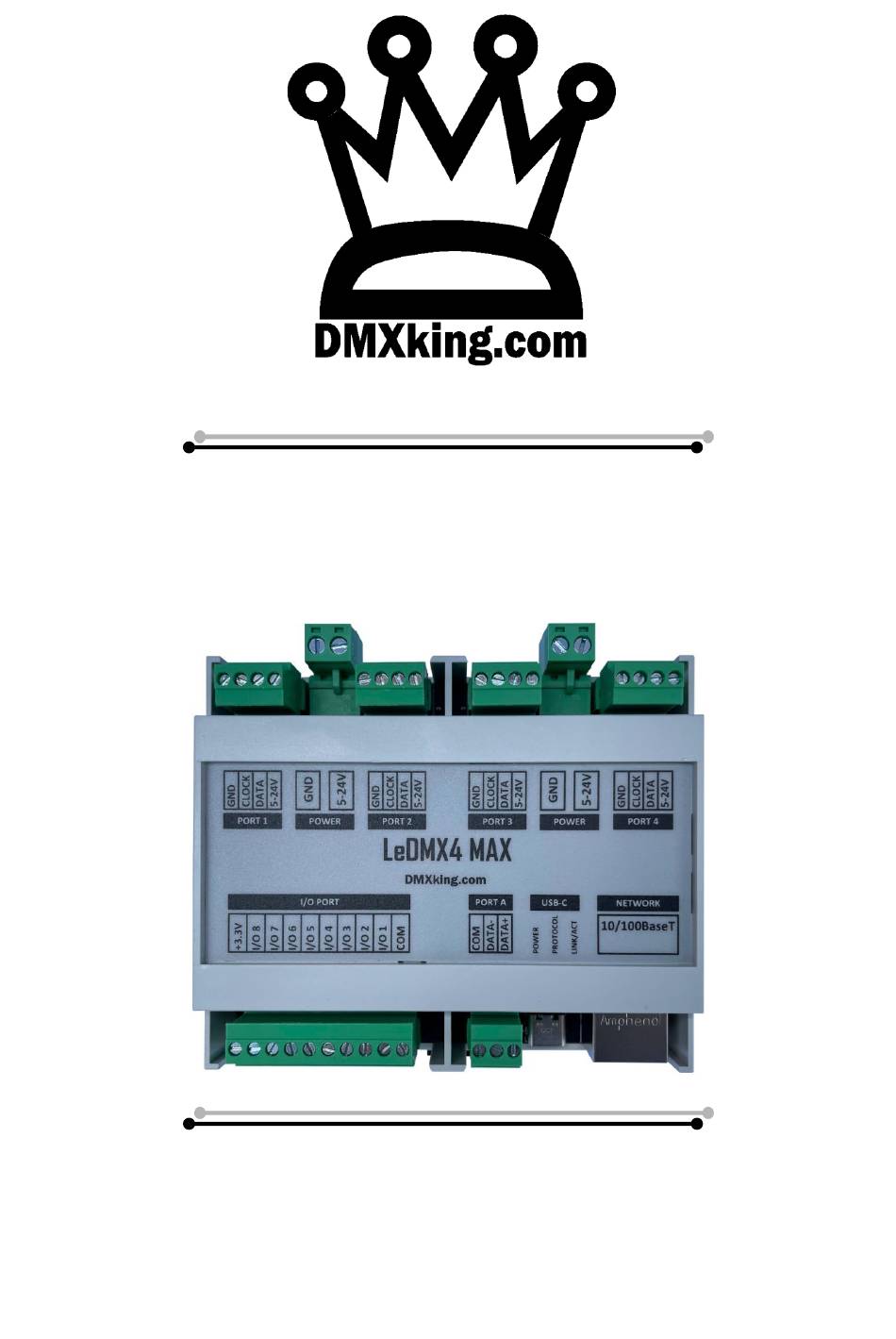

- Page 1 LeDMX4 MAX USER MANUAL DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.10...
-
Page 2: Table Of Contents
Hardware and Firmware versions ..............................1 Main Features ....................................3 Connections....................................5 LeDMX4 MAX ....................................5 LeDMX4 MAX Front Panel Label Error ............................5 Status LED Table ....................................6 USB DMX Operation ................................... 6 Software compatibility ..................................6 Device configuration ..................................6 DMX port mapping .................................. -
Page 3: Introduction
In many LED pixel installations, especially where the majority of pixels may be running simultaneously at full brightness, it is necessary to inject DC power at various points along the pixel strip/string/array. Although the LeDMX4 MAX can only provide up to 8A per output port terminal block this is not a limitation since currents higher than that will require power injection along the strip anyhow. - Page 4 ArtPollReply changes for mixed DMX-IN/OUT port configurations. Fixed issue with show playback of recorded ArtNet when initiated with network link down. *Firmware version has been withdrawn from distribution and upgrade to higher version is recommended. DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.10...
-
Page 5: Main Features
IMPORTANT: In many LED pixel installations, especially where the majority of pixels may be running simultaneously at full brightness, it is necessary to inject DC power at various points along the pixel strip or string. Although the LeDMX4 MAX can only provide up to 8A per output port terminal block this is not a limitation since currents higher than that would require power injection along the strip anyhow. - Page 6 MAX translates Art-Net 00:0:0 to Universe 1 (i.e. offset by 1) so there is an easy mapping between sACN/E1.31 and Art-Net. DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.10...
-
Page 7: Connections
LEDMX4 MAX FRONT PANEL LABEL ERROR Note earlier production units have incorrect I/O Port labelling where I/O 1 – 8 are flipped 8 – 1. Above image shows the incorrect label. Corrected label is shown above. DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.10... -
Page 8: Status Led Table
For software compatibility reasons a BCD serial number is calculated from the MAX device hardware MAC address using the lower 3 hexadecimal bytes converted to a decimal number. Software that has been updated for MAX series devices will display the hardware MAC address. DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.10... -
Page 9: Default Configuration
4. DEFAULT CONFIGURATION LeDMX4 MAX units ship with default static IP address settings. Please reconfigure for your local area network requirements before use. Default configuration is for WS2811/2812 pixel output with automatic RGB color order correction and 1 DMX universe mapping to 170 RGB pixels per output. - Page 10 RDM Packet Spacing [DMX-OUT] 1/20s DMX-OUT Failsafe Mode Hold Last Recall DMX Snapshot at startup Unchecked DMX512 Universe 1 [Net 00, Subnet 0, Universe 0] Note: sACN Universe 1 = Art-Net 00:0:0 DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.10...
-
Page 11: Configuration Utility
There are many sources for LED pixels in strip and other formats. Pretty much all of it comes out of China and it can be more cost effective to source through sites such as Aliexpress which provide individual item sales without much effort. Try these Aliexpress stores or direct from a manufacturer: • https://kinggreen.aliexpress.com/store/713947 DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.10... -
Page 12: Frequently Asked Questions
Of course using Full Mapping mode with >1 Pixel Group size it’s possible to stretch that 1 universe a little further. Just configure Port A as DMX-In sACN on the same universe you’ve configured a pixel output. DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.10... -
Page 13: Warranty
Failure due to operator error or incorrect application of product. What DMXking will do DMXking will repair or replace, at its sole discretion, the defective hardware. How to obtain service Contact your local distributor https://dmxking.com/distributors DMXking.com • JPK Systems Limited • New Zealand 0129-700-4.10... -
Page 14: Acknowledgements
10. ACKNOWLEDGEMENTS Art-Net™ Designed by and Copyright Artistic Licence 11. DECLARATIONS The LeDMX4 MAX has been tested against applicable standards and certified compliant as below. Standard IEC 62368-1 Audio/Video and ICTE Safety Requirements IEC 55032 Radiated Emissions IEC 55035 EMC Immunity Requirements...
