Snapper 5900683, 5900709, 5900734 Operator's Manual

S50x series zero-turn riding mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Model Number:
5900683
5900709
5900734
Briggs & Stratton Yard Power Products Group
5375 North Main Street
Munnsville, NY 13409
800-933-6175
Description
S50XKAV1936, 19HP Kawasaki, 36" Cut Zero-Turn Riding Mower
S50XBS2648, 26HP Briggs & Stratton, 48" Cut Zero-Turn Riding Mower
S50XKAV1948, 19HP Kawasaki, 48" Cut Zero-Turn Riding Mower

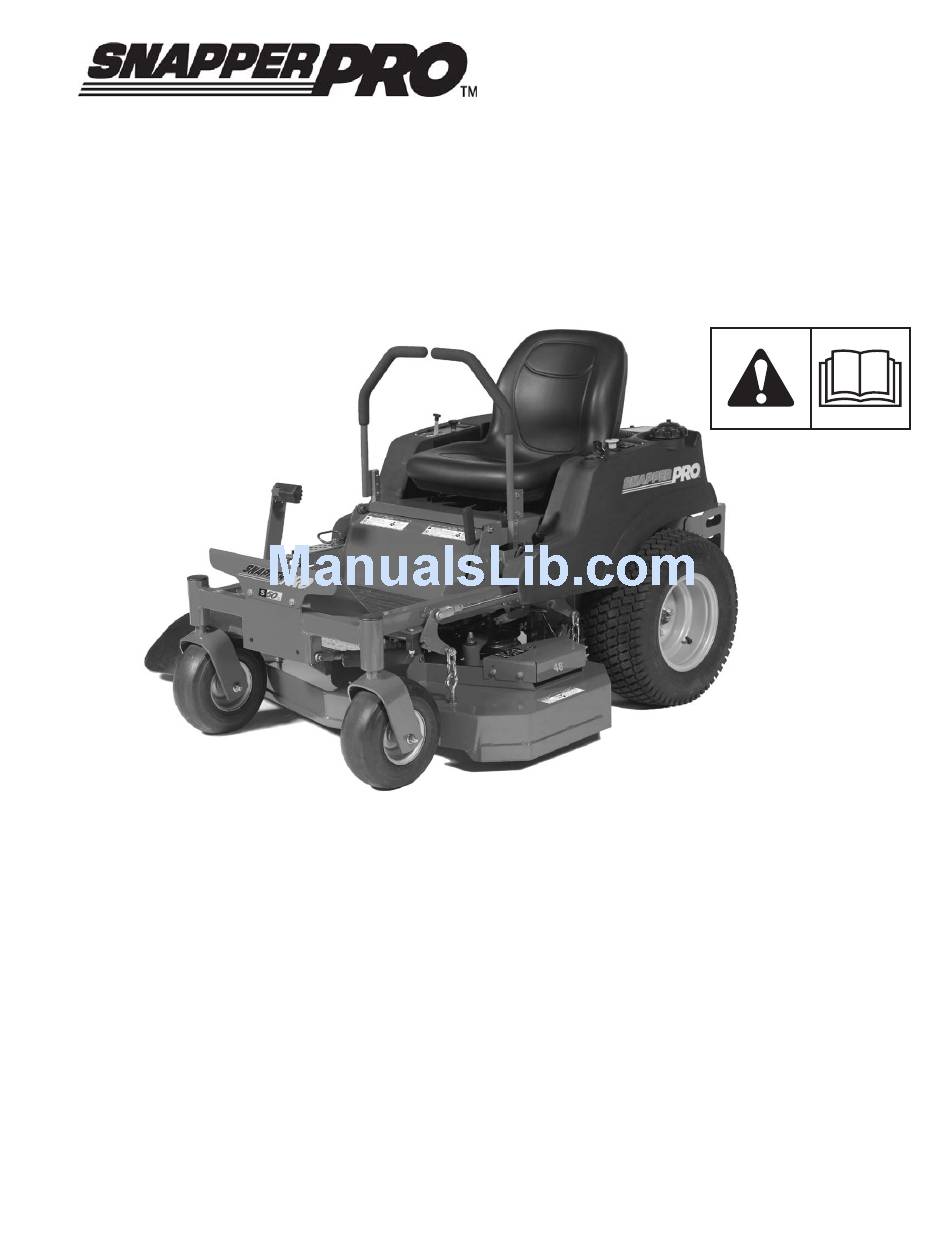

OPERATOR'S
MANUAL
S50X Series
Zero-Turn Riding Mower
5101098
Revision IR
Rev. Date: 12/2007
TP 100-7362-IR-M5-SP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5900683, 5900709, 5900734 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Snapper 5900683, 5900709, 5900734

Summary of Contents for Snapper 5900683, 5900709, 5900734

  • Page 1 Model Number: Description 5900683 S50XKAV1936, 19HP Kawasaki, 36” Cut Zero-Turn Riding Mower 5900709 S50XBS2648, 26HP Briggs & Stratton, 48” Cut Zero-Turn Riding Mower 5900734 S50XKAV1948, 19HP Kawasaki, 48” Cut Zero-Turn Riding Mower Briggs & Stratton Yard Power Products Group 5375 North Main Street Munnsville, NY 13409 800-933-6175 OPERATOR’S...
  • Page 2 Snapper Pro product. We’re pleased that you’ve placed your confidence in the Snapper Pro brand. When operated and maintained according to the instructions in this manual, your Snapper Pro product will provide many years of dependable service.

  • Page 3: Table Of Contents

    Table of Contents Operator Safety ...2 Safety Rules and Information ...2 Safety Decals ...8 Safety Interlock System...9 Features & Controls ...10 Identification Numbers ...10 Control Functions ...11 Operation ...13 General ...13 Checks Before Starting ...13 Checking Tire Pressures ...14 Seat Adjustment ...14 Mowing Height Adjustment ...15 Foot Pedal Adjustment...15 Starting the Engine ...16...

  • Page 4: Operator Safety

    Operator Safety Operator Safety Safety Rules and Information READ THE MANUAL The operator’s manual contains important safety information you need to be aware of BEFORE you operate your unit as well as DURING operation. Safe operating techniques, an explanation of the product’s features and controls, and maintenance information is included to help you get the most out of your equipment investment.
  • Page 5 THROWN OBJECTS This unit has spinning mower blades. These blades can pick up and throw debris that could seriously injure a bystander. Be sure to clean up the area to be mowed and remove objects that could be thrown by the blade BEFORE you start mowing.
  • Page 6 Operator Safety RETAINING WALLS, DROP-OFFS, AND WATER Retaining walls and drop-offs around steps and water are a common hazard. Give yourself a minimum of two mower widths of clearance around these hazards and hand-trim with a walk behind mower or string trimmer. Wheels dropping over retaining walls, edges, ditches, embankments, or into water can cause rollovers, which may result in serious injury, death, or drowning.
  • Page 7 Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. This mowing deck is capable of amputating hands and feet and throwing objects.
  • Page 8 Operator Safety spark arrester. It is a violation of California Public Resource Code Section 4442 to use or operate the engine on or near any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrester meeting any applicable local or state laws.
  • Page 9 SERVICE AND MAINTENANCE To avoid personal injury or property damage, use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Safe Handling of Gasoline 1. Extinguish all cigarettes, cigars, pipes, and other sources of ignition. 2.

  • Page 10: Safety Decals

    Operator Safety Safety Decals This unit has been designed and manufactured to provide you with the safety and reliability you would expect from an industry leader in outdoor power equipment manufacturing. Although reading this manual and the safety instructions it contains will provide you with the necessary basic knowledge to operate this equipment safely and effectively, we have placed several safety labels on the unit to remind...

  • Page 11: Safety Interlock System

    Safety Interlock System This unit is equipped with safety interlock switches. These safety systems are present for your safety, do not attempt to bypass safety switches, and never tamper with safety devices. Check their operation regularly. Operational SAFETY Checks Test 1 — Engine should NOT crank if: •...

  • Page 12: Features & Controls

    Features and Controls Features and Controls Identification Numbers When contacting your authorized dealer for replacement parts, service, or information you MUST have these numbers. Record your part number, serial number and engine serial numbers in the space provided on the inside front cover for easy access.

  • Page 13: Control Functions

    Figure 2. Control Locations Control Functions The information below briefly describes the function of individual controls. Starting, stopping, driving, and mowing require the combined use of several controls applied in specific sequences. To learn what combination and sequence of controls to use for various tasks see the OPERATION section.
  • Page 14 Features & Controls Parking Brake DISENGAGE Releases the parking brake. ENGAGE Locks the parking brake. Pull the parking brake lever up to engage the parking brake. Push the lever down to disengage the parking brake. NOTE: To start the unit the parking brake must be engaged. PTO (Power Take Off) Switch The PTO switch engages and disengages the mower.

  • Page 15: Operation

    Operation General Operating Safety Before first time operation: • Be sure to read all information in the Safety and Operation sections before attempting to operate this tractor and mower. • Become familiar with all of the controls and how to stop the unit.

  • Page 16: Checking Tire Pressures

    Operation Check Tire Pressures Tire pressure should be checked periodically, and maintained at the levels shown in the chart. Note that these pressures may differ slightly from the “Max Inflation” stamped on the side-wall of the tires. The pressures shown provide proper traction, improve cut quality, and extend tire life.

  • Page 17: Mowing Height Adjustment

    Mowing Height Adjustment The cutting height adjustment pin (A, Figure 6) controls the mower cutting height. The cutting height is adjustable between 1-1/2” (3,37 cm) and 4-1/2” (11,47 cm) in 1/4” (0,64 cm) increments. 1. Depress the deck lift foot pedal (B) until it locks into the 4-1/2”...

  • Page 18: Starting The Engine

    Operation Starting the Engine WARNING If you do not understand how a specific control functions, or have not yet thoroughly read the FEATURES & CONTROLS section, do so now. Do NOT attempt to operate the tractor without first becoming familiar with the location and function of ALL controls.

  • Page 19: Zero Turn Driving Practice

    Zero Turn Driving Practice The lever controls of the Zero Turn rider are responsive, and learning to gain a smooth and efficient control of the rider’s forward, reverse, and turning movements will take some practice. Spending some time going through the maneuvers shown and becoming familiar with how the unit accelerates, travels, and steers —...
  • Page 20 Operation Practice Turning Around a Corner While traveling forward allow one lever to gradually return back toward neutral. Repeat several times. NOTE: To prevent pivoting directly on the tire tread, it is best to keep both wheels going at least slightly forward. Executing Turns Figure 12.

  • Page 21: Mowing

    Mowing 1. Engage the parking brake. Make sure the PTO switch is disengaged, the ground speed control levers are locked in the NEUTRAL position and the operator is on the seat. 2. Start the engine (see Starting The Engine ). 3.

  • Page 22: Mowing Methods

    Operation When and How Often to Mow The time of day and condition of the grass greatly affect the results you’ll get when mowing. For the best results, follow these guidelines: 1. Mow when the grass is between three and five inches high.

  • Page 23: Attaching A Trailer

    Proper Mulching Mulching consists of a mower deck which cuts and recuts clippings into tiny particles and which then blows them down INTO the lawn. These tiny particles decompose rapidly into by-products your lawn can use. UNDER PROPER CONDITIONS, your mulching mower will virtually eliminate noticeable clippings on the lawn surface.

  • Page 24: Regular Maintenance

    Regular Maintenance Regular Maintenance Maintenance Schedule The following schedule should be followed for normal care of your rider and mower. You will need to keep a record of your operating time. Determining operating time is easily accomplished by observing the elapsed time recorded by the hour meter. Safety Items Check Safety Interlock System Check Rider Brakes...

  • Page 25: Checking/Adding Fuel

    Checking / Adding Fuel To add fuel: 1. Remove the fuel cap. 2. Fill the tank to about 1-1/2” (3,81 cm) of the bottom of the filler neck. This will allow for fuel expansion. NOTE: Do not overfill. Refer to your engine manual for specific fuel recommendations.

  • Page 26: Lubrication

    Regular Maintenance Lubrication Lubricate the unit at the locations shown in Figures 20 through 23 as well as the following lubrication points. Grease: • front caster wheel axles & yokes • deck lift pivot blocks • mower deck spindles • mower deck idler arm Use grease fittings when present.

  • Page 27: Check Transmission Oil Level

    Check / Fill Transmission Oil Oil Type: 20W-50 conventional detergent motor oil. 1. Check the oil level when the unit is cold. Locate the transmission oil reservoirs (A, Figure 24) located on the seat support plate. The oil should be up to the “FULL COLD”...

  • Page 28: Servicing The Mower Blades

    Regular Maintenance Servicing The Mower Blades Removing the Mower Blade CAUTION Avoid injury! Mower blades are sharp. • Always wear gloves when handling mower blades or working near blades. 1. To remove the mower blade, use a 1” wrench on the flats of the spindle shaft and remove the mower blade mounting bolt with a 15/16”...
  • Page 29 Sharpening the Mower Blade CAUTION Avoid injury! Mower blades are sharp. • Always wear gloves when handling the mower blades. • Always wear safety eye protection when grinding. 1. Sharpen the mower blades with grinder, hand file, or electric blade sharpener. 2.

  • Page 30: Ground Speed Control Lever Adjustment

    Regular Maintenance Ground Speed Control Lever Adjustment The control levers can be adjusted in three ways. The alignment of the control levers, the placement of the levers (how close the ends are to one another) and the height of the levers can be adjusted. To Adjust the Handle Alignment Loosen the mount bolts (A, Figure 32) and pivot the lever(s) (B) to align with each other.

  • Page 31: Parking Brake Adjustment

    .375” (0,95 cm). If not, position the set collar until the measurement equals .375” (0,95 cm). If this does not correct the braking problem, see your Snapper Pro dealer. Regular Maintenance Figure 34. Parking Brake Adjustment A. Brake Spring B.

  • Page 32: Return To Neutral Adjustment

    Regular Maintenance Return-to-Neutral Adjustment To determine if it is necessary to adjust the neutral return, perform the following steps. 1. Disengage the PTO, engage the parking brake and turn off the engine. 2. Move the ground speed control levers into the operating position, pull the levers rearward and release.

  • Page 33: Deck Rod Timing Adjustment

    Deck Rod Timing Adjustment 1. Park the machine on a flat, level surface. Disengage the PTO, engage the parking brake, turn off the engine, and remove the ignition key. Rear tires must be inflated to 15 psi (1,03 bar); front tires to 40 psi (2,76 bar). 2.

  • Page 34: Mower Belt Replacement

    Regular Maintenance Mower Belt Replacement - 36” Deck Models NOTICE To avoid damaging belts, DO NOT PRY BELTS OVER PULLEYS. 1. Park the tractor on a smooth, level surface such as a concrete floor. Disengage the PTO, engage the parking brake, turn off the engine, and remove the ignition key.
  • Page 35 7. Install the new chevron belt on the right-hand sprocket and make sure that the belt is properly seated in the chevron of the sprocket. 8. Refer to Figure 42. Align the holes in the sprockets with the spindle mounting hardware as shown. The blades will be perpendicular to each other.
  • Page 36 Regular Maintenance Mower Belt Replacement - 48” Deck Models NOTICE To avoid damaging belts, DO NOT PRY BELTS OVER PULLEYS. 1. Park the tractor on a smooth, level surface such as a concrete floor. Disengage the PTO, engage the parking brake, turn off the engine, and remove the ignition key.

  • Page 37: Hydraulic Pump Drive Belt Replacement

    Hydraulic Pump Drive Belt Replacement 1. Park the tractor on a smooth, level surface such as a concrete floor. Disengage the PTO, engage the parking brake, turn off the engine, and remove the ignition key. 2. Remove the PTO drive belt (see MOWER BELT REPLACEMENT for removal instructions).

  • Page 38: Battery Maintenance

    Regular Maintenance Battery Maintenance NOTE: This unit is equipped with a maintenance-free BCIU1 battery. Cleaning the Battery and Cables WARNING Be careful when handling the battery. Avoid spilling electrolyte. Keep flames and sparks away from the battery. When removing or installing battery cables, disconnect the negative cable FIRST and reconnect it LAST.

  • Page 39: Battery Service

    Battery Service Checking Battery Voltage WARNING Keep open flames and sparks away from the battery; the gasses coming from it are highly explosive. Ventilate the battery well during charging. A voltmeter can be used to determine condition of battery. When engine is off, the voltmeter shows battery voltage, which should be 12 volts.
  • Page 40 Regular Maintenance THIS HOOK-UP FOR NEGATIVE GROUND VEHICLES Starter Switch Starting Vehicle Battery To Ground MAKE CERTAIN VEHICLES DO NOT TOUCH Figure 48. Jump Starting WARNING Any procedure other than the preceding could result in: (1) personal injury caused by electrolyte squirting out the battery vents, (2) personal injury or property damage due to battery explosion,...

  • Page 41: Storage

    Storage Temporary Storage (30 Days Or Less) Remember, the fuel tank will still contain some gasoline, so never store the unit indoors or in any other area where fuel vapor could travel to any ignition source. Fuel vapor is also toxic if inhaled, so never store the unit in any structure used for human or animal habitation.

  • Page 42: Troubleshooting

    Troubleshooting Troubleshooting Troubleshooting Chart While normal care and regular maintenance will extend the life of your equipment, prolonged or constant use may eventually require that service be performed to allow it to continue operating properly. The troubleshooting guide below lists the most common problems, their causes and remedies.

  • Page 43: Troubleshooting The Mower

    Rider Troubleshooting Continued. Problem Engine runs, but rider will not drive. Rider drive belt slips. Brake will not hold. Rider steers or handles poorly. Troubleshooting the Mower Problem Mower will not raise. Engine stalls easily with mower engaged. Excessive mower vibration. Excessive belt wear or breakage.

  • Page 44: Troubleshooting Common Cutting Problems

    Troubleshooting Troubleshooting Common Cutting Problems Problem Streaking. Scalping. Stepped Cutting. Uneven Cutting. Stingers. Cause Blades are not sharp. Blades are worn down to far. Engine speed is too slow. Ground speed is too fast. Deck is plugged with grass Not overlapping cutting rows enough.

  • Page 45: Specifications

    Specifications NOTE: Specifications are correct at time of printing and are subject to change without notice. ENGINE: 19 HP Kawasaki Make Kawasaki Model FH580V Horsepower 19 @ 3600 rpm Displacement 35.7 Cu. in (585 cc) Electrical System 12 Volt Starter, 13 amp. Alternator, Battery: 340 CCA Oil Capacity 1.9 US qt.

  • Page 46: Slope Identification Guide

    ETC) BUILDING, POST, FENCE POLE, (TREE, SURFACE VERTICAL WITH EDGE THIS ALIGN www.SnapperPro.com...
  • Page 47 Ferris Industries - a division of Simplicity Manufacturing Inc. Thank you for purchasing Ferris commercial mowing equipment. Please take a few minutes to read this limited warranty information. It contains all the information you will need to have your Ferris mower repaired in the unlikely event that a breakdown covered by this limited warranty should occur. Owner's Responsibilities - As a condition to our obligations under this limited warranty, you shall have read the operator's manual and you shall have completed and submitted to Ferris, within 20 days from the date of purchase, the Ferris Product Registration.

  • Page 48: Product Specifications

    Product Specifications: ENGINE: 19 HP Kawasaki Make Kawasaki Model FH580V Oil Capacity 1.9 US qt. ( 1,8 L) w/ Filter 26 HP Briggs & Stratton Make Briggs & Stratton Model 44P777-0124-G1 Oil Capacity 2.0 US qt. (1,9 L) w/ Filter CHASSIS: Fuel Tank Capacity: 8 Gallons (30,3 L)
