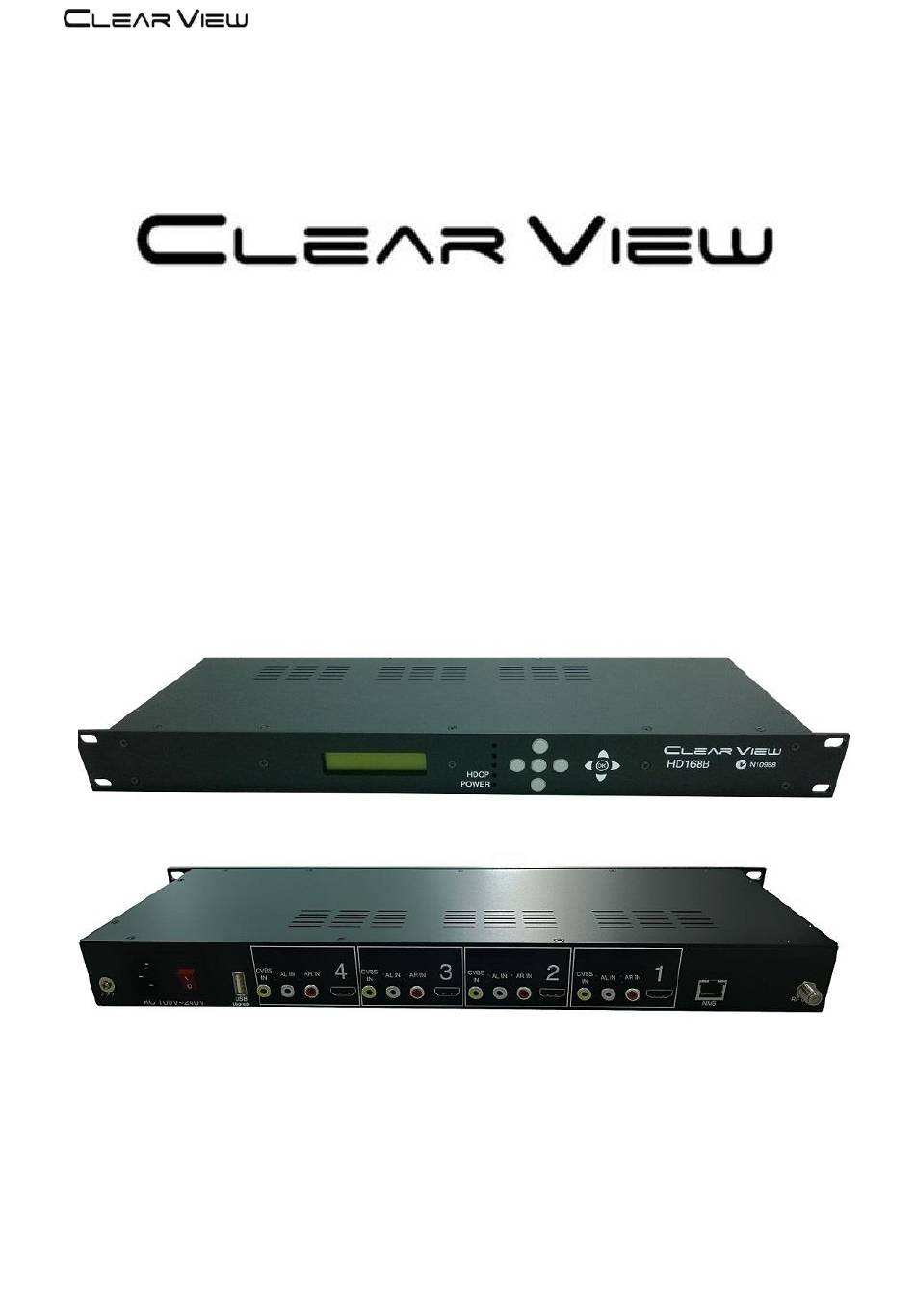

- Page 1 HD168Bi Quad CVBS/HDMI HD DVBT Encoder Modulator U S E R M A N U A L HD168Bi Manual Rev 1.0...
-
Page 2: Table Of Contents
3.2 Starting 3.2.1 Beginning Setup 3.2.2 Step 1: Login and Adjust RF and stream settings 3.2.3 Step 2: Adjust System Settings 3.2.4 Step 3: Adjust TS Settings 4. MENU TREE 4.1 Menu Tree of Front panel HD168Bi Manual Rev 1.0... -
Page 3: General
1. GENERAL 1.1 Description The HD168Bi modulator is able to generate a signal in DVB-T format (Digital Terrestrial Television) from 4 x CVBS or HDMI inputs. HD168Bi is MPEG-4 encoding, DVB-T modulation integrated into one device to convert 4 x CVBS or HDMI signals to one DVB-T RF out. -
Page 4: Specifications
6 Local keys on front panel Web Management RJ-45 Ethernet port GENERAL Power Supply AC 100~240V 50/60Hz Consumption 20 W Languages English Dimensions 19” x 12.5” x 1.75” Weight 1.8Kg *Specifications subject to change without prior notice. HD168Bi Manual Rev 1.0... -
Page 5: Installation
One power cable 2.2 Connection The HD168Bi unit comes standard with 4 x CVBS and HDMI inputs. Use a quality 75Ω coaxial cable with “F” connectors from the unit’s RF OUT jack to the distribution system or directly to a television. -
Page 6: Operating Instructions
3. OPERATING INSTRUCTIONS 3.1 Description of controls and components HD168A Description LCD Display Configuration and system status Key PAD / Left Exit from previous menu. Key PAD / Up Move between menu selections. Key Centre OK Button to select item Key PAD / Down Move between menu selections. -
Page 7: Starting
If the name contains less than 15 characters. You need to press Save Settings to the left of each group. After setting all these parameters, you need to press the- Store Settings and Reboot System for them to be saved completely. HD168Bi Manual Rev 1.0... -
Page 8: Step 2: Adjust System Settings
If the buttons turn grey while you are adjusting settings log out then back in again To activate them. STATUS but only shows you status of the device and changes cannot be made in this menu. HD168Bi Manual Rev 1.0... -
Page 9: Step 3: Adjust Ts Settings
If it does this Total bitrate field will turn red. Be sure to press Save Settings when you are finished making adjustments and after all adjustments are complete press Store Settings and Reboot System so the changes are permanent. HD168Bi Manual Rev 1.0... -
Page 10: Menu Tree
< Set HDPC> HDCP ON or OFF Once all settings are made press left arrow 3 times to EXIT to Save screen When Prompted Saving Changes & Setting Reset arrow down until you see y Then press OK HD168Bi Manual Rev 1.0...
