Seametrics PD10 Instructions page 4

SETTING
The four numbered rotary switches marked "1000", "100",
"10", and "1" control the ratio of meter pulses to pump
strokes. Before setting the switches, disconnect power
to the unit by removing the connector from the pump or
unplugging the power adapter.
Setting Examples
0 0
TROUBLESHOOTING
Problem
Metering pump not stroking
Pump strokes continually
Pump doesn't stroke often enough
or too often
S eamet rics In corporat ed • 1 9 02 6 72n d A v en ue South • Ke n t, W ash i n g ton 98 03 2 • USA
( P) 2 5 3 .8 7 2 . 0 28 4 • ( F) 2 5 3 . 872 . 0285 • 1 . 80 0. 97 5. 8 15 3 • ww w . se am etr i cs . c om
Page 4
0 0
Probable Cause
Meter dials not turning
Meter pickup not working
Pump connector not plugged in all the way
Pump doesn't supply power to the PD10
PD10 set to large number or all zeroes
Pump not set for external pacing
PD10 set for wrong number
Multiple contacts from meter
Meter ordered with wrong pulse rate

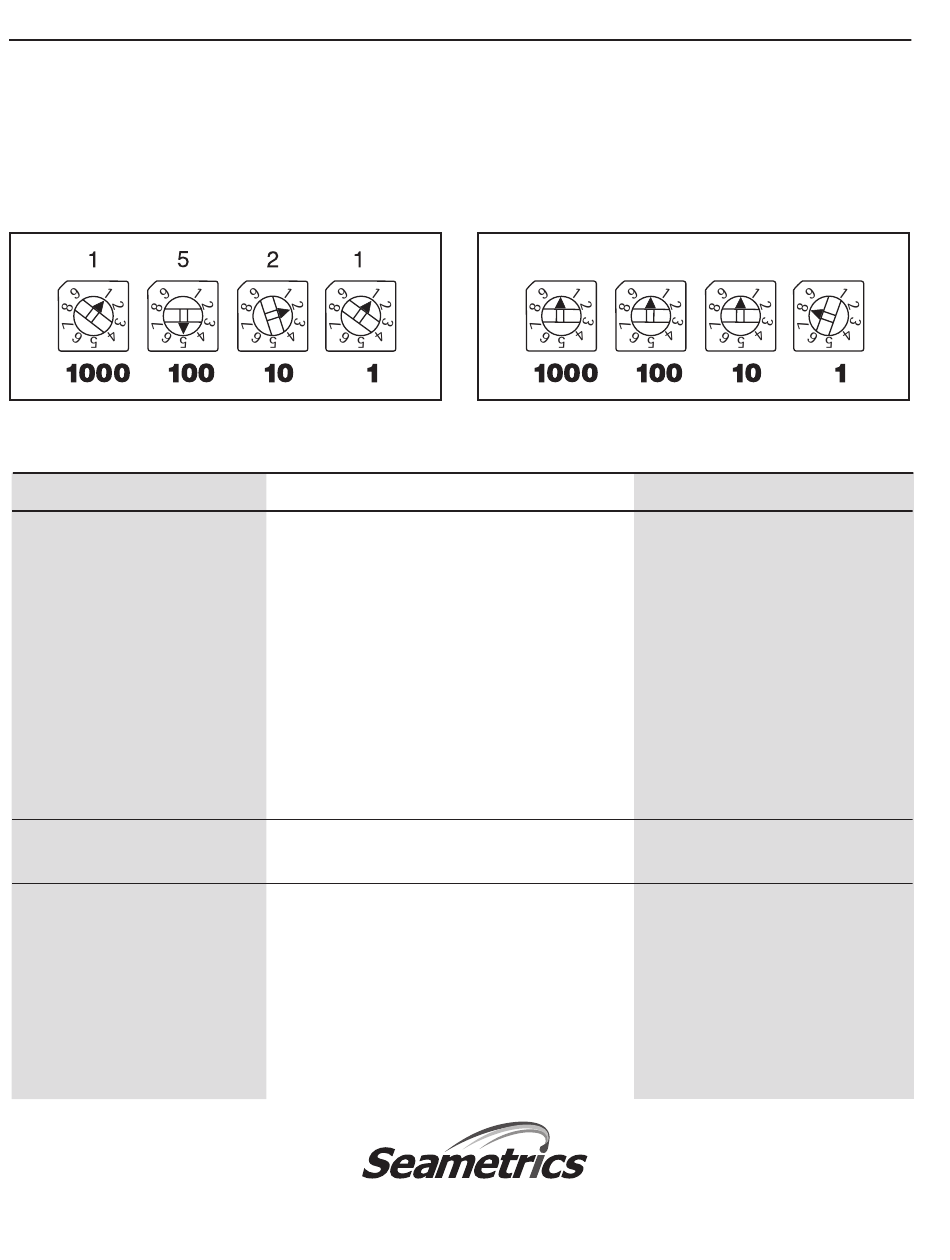

To set any four-digit number, rotate the dials to the appropri-
ate numbers. For example, to set 1521, set the four switches
to "1", "5", "2", and "1". Any unused switches should be set to
zero. For example, to set 8, position the dials to "0", "0", "0",
"8". See samples below.
(Set Leading Switches To Zero)
0 0
8
0 0
Try...
Check visually, then check for
adequate flow
Remove from meter, check with a
magnet
Check or tighten threaded locking
ring (LMI)
Check pump manual, add power
supply
Check rotary switches, esp. for
leading zeroes
Check pump manual and selector
switch
Review setting on this page, check
rotary switches
Set PD10 to 1 contact/pump stroke
(0001) and see if the pump strokes
once for each magnet revolution
Check meter model/serial tag
