Seametrics PD10 Instructions page 2

GENERAL INFORMATION & SPECIFICATIONS
Designed for use as a meter accessory, the PD10 divider is
used primarily for pacing electronic metering pumps. Any
number from one to 9999 can be set on rotary switches.
Each time the divider has received the set number of pulses
from the meter, it puts out one pulse to stroke the pump.
The PD10 is also useful in boiler and cooling tower feed and
bleed operations, and for lowering frequency output of high
frequency meters. Compatible with all Seametrics flow meters,
the PD10 creates a programmable pulse meter with an easily
adjustable pulse rate.

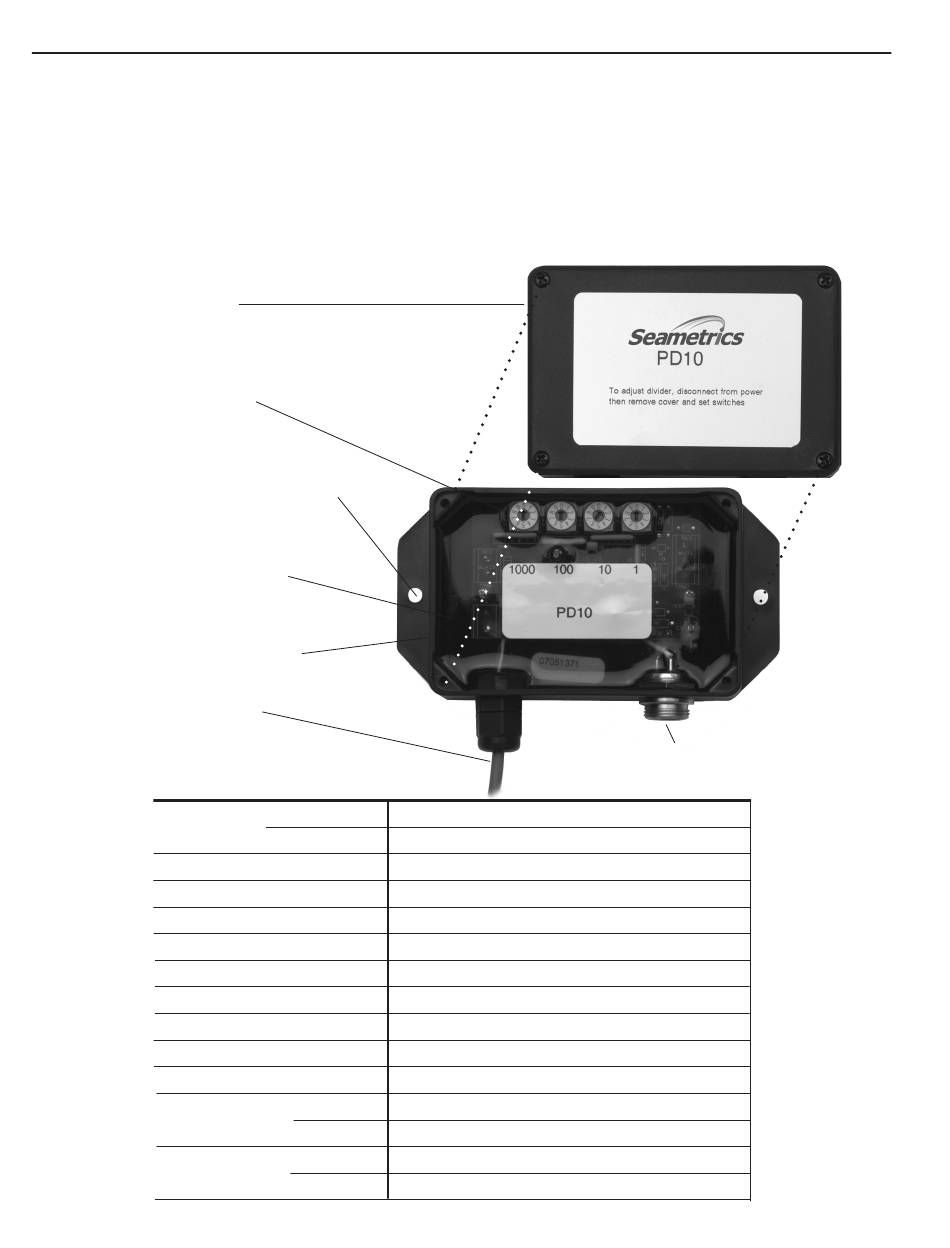

FEATURES
Protective cover
Rotary Switches (4)
Mounting Holes:
(Double-backed pressure-sensitive
tape also supplied standard)
Potted for environmental
protection
Wall (Pump) housing shown
(Meter mount also available)
To leads or metering
pump connector
SPECIFICATIONS*
Enclosure
Temperature
Divider Range
Setting Mechanism
Power
Maximum Sensor Load
Maximum Input Frequency
Maximum Output Frequency
Output
Output Pulse Width
Input Connection
Output Connection
*Specifications subject to change • Please consult our website for current data (www.seametrics.com).
Page 2
Wall (Pump) Mount Epoxy-encapsulated ABS housing with cover
Meter Mount Cast aluminum sealed housing
0˚ to 130˚ F (-18˚ to 55˚ C)
1 to 9999
Rotary switches
7 - 30 Vdc @ 4 mA
20 mA
350 Hz (pulses/second)
8 Hz (pulses/second)
Solid state relay; 0-250 V, 170 mA max AC/DC
0.1 second
Wall Mount Seametrics connector
Meter Mount Terminal
Wall Mount Pump connector on 24 inch lead
Meter Mount Comes with 18 foot lead
The PD10 comes in two different housings: an enclosure that
can be mounted near the pump, and a watertight housing for
mounting on the meter.
Input connector for
Seametrics meter connector
