KIDSMILL UP! User Manual

Newborn rocker
Hide thumbs Also See for UP!:

Advertisement

Table of Contents

See also: User Manual
Newborn Rocker - User manual AUS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UP! and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KIDSMILL UP!

Summary of Contents for KIDSMILL UP!

  • Page 1 Newborn Rocker - User manual AUS...
  • Page 2 INDEX CONGRATULATIONS WARNINGS SAFETY MEASURES MAINTENANCE PARTS INSTALLATION WARRANTY IMPORTANT! RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE AND READ CAREFULLY...

  • Page 3: Congratulations

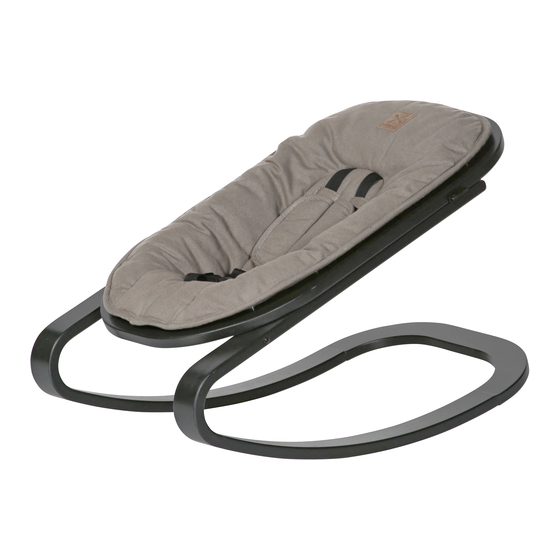

    KIDSMILL Rocker UP! CONGRATULATIONS Congratulations on the purchase of this Kidsmill Up! Rocker. This product meets the most stringent safety requirements. Using this baby rocker can only be safe when used according to these instructions. The child may be hurt if you do not follow these instructions.

  • Page 4: Parts

    PARTS 5. Pin M6 (2x) 3. Screw M5(2x) 7. Set screw M6(2x) 8. Hex Key 4 (1x) 6. Housing (2x) 2. Cilinder stop (2x) 13. Hex Key 3 (1x) 1. Screw 3x13 (2x) 4. Dowel(2x) 12. Rear section (1x) 9. Left part (1x) 10.
  • Page 5 ASSEMBLY Step 1: Screw (1) the cylinder stops (2) to the left and right part (9+10) of the rocker. Step 2: Place the metal tension rod (11) between the two sides (9+10) of the rocker and tighten the screws (3) by hand. Step 3: Place the dowels (4) and the pins (5) in the rear section (12) of the rocker.

  • Page 6: Installation

    INSTALLATION Step 4a: Attach the rear section(12) of the rocker to the two sides (9+10). Step 4b: Insert the housing (6) into the side (9 + 10). Slide the pin (5) into the housing and tighten the connection with the set screw (7). Step 5: Make sure the rocker is leveled and tighten the screws (3).
  • Page 7 Step 1a: Slide the Up! Newborn seat on the rocker from the upper side. Step 1b: Push the seat until it locks with a clear audible "Click" on both sides. Step 2: To unlock the seat, pull up both buttons, at the sides of the seat, at the same time and slide the seat off the rocker.

  • Page 8: Warranty

    WARRANTY Validity: 2 years from date of purchase. The warranty is only valid in conjunction with proof of purchase. The warranty covers the replacement of the entire product or parts when there a manufacturing defect. After the expiration of the warranty there are costs attached to any repairs. The supplier takes no responsibility for any damage or injury to persons, animals and belongings due to misuse of the harness or by failure to follow the accompanying instructions.
  • Page 9 WARRANTY FORM In case of damaged or missing parts, please fill in this form and send to the following E-mail address: info@kidsmill.com.au Product:..................................Article number:................................Serial number:................................Part number (p. 4) Quantity Damaged Missing ........................
  • Page 10 The information contained herein is subject to change without notice. Timgro BV shall not be liable for technical errors or omissions contained herein. The purchased product may differ from the product as described in this user guide. Anstel Brands Pty Ltd 36 Sunline Drive Truganina VIC 3029 Australia Email: info@kidsmill.com.au Version: October 2018...
