Vinotemp VT-6TED-WB Owner's Manual

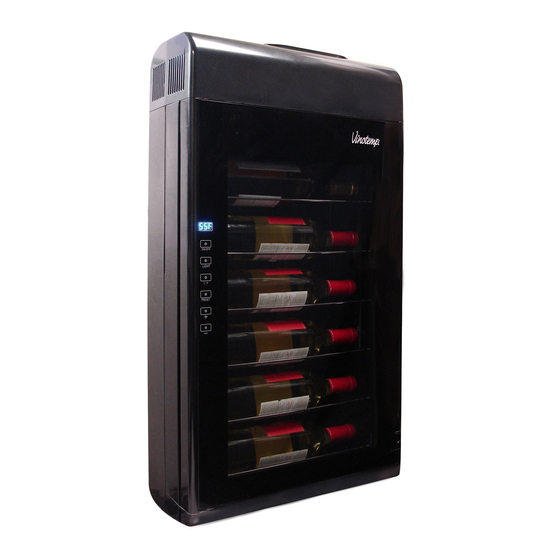

Wall-mounted wine cooler
Hide thumbs Also See for VT-6TED-WB:
Table of Contents

Advertisement

Quick Links

A P R O U D H E R I T A G E O F E X P E R I E N C E & Q U A L I T Y
W a l l - M o u n t e d W i n e
C o o l e r
V T - 6 T E D - W B
O W N E R ' S
M A N U A L
W W W . V I N O T E M P . C O M
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT-6TED-WB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vinotemp VT-6TED-WB

Summary of Contents for Vinotemp VT-6TED-WB

  • Page 1 A P R O U D H E R I T A G E O F E X P E R I E N C E & Q U A L I T Y W a l l - M o u n t e d W i n e C o o l e r V T - 6 T E D - W B O W N E R ’...
  • Page 2 W W W . V I N O T E M P . C O M...
  • Page 3 Y o u r W i n e C o o l e r This unit can be used for storage and/or service. The unit has a glass door to elegantly display your wine. S e r v i n g W i n e s Storing wines at the proper temperature is important.
  • Page 4 Upon receipt and inspection of the unit, the supply cord must be replaced if it is damaged. Contact our customer service at 1-800-777-8466 or info@vinotemp.com. READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE -Save these instructions- To register your product, visit: http://www.vinotemp.com/Warranty.aspx...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ........... 6 ELECTRICAL CONNECTION ..............7 PARTS AND SPECIFICATIONS ............. 8 INSTALLATION ................. 9 OPERATING YOUR WINE COOLER ............. 10 CARE AND MAINTENANCE ..............10 TROUBLESHOOTING ............... 13 TERMS OF SALE AND WARRANTY ............. 14 SERVICE &...

  • Page 6: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock or injury when using your appliance, follow these basic precautions: Do not operate this or any other appliance with a damaged cord. Do not operate if housing is removed or damaged. Do not lift or carry the unit by the cord.

  • Page 7: Electrical Connection

    ELECTRICAL CONNECTION Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, frayed or shows cracks or abrasions across its length, have it replaced at an authorized service center. For your protection, this unit is equipped with a 2-conductor cord set that has a molded 2-pin plug, and should be used in combination with a properly connected outlet.

  • Page 8: Parts And Specifications

    PARTS AND SPECIFICATIONS Model No. VT-6TED-WB Voltage AC 110-120V Frequency 60 Hz Power Consumption .85 kWh/24 hr. Input Power Ambient Temperature Range 50°- 80°F Control Temperature Range 45°- 68°F Capacity 6 Bottles Net Weight 28.6 LBS 16.75” x 7.75” x 30.25”...

  • Page 9: Installation

    INSTALLATION BEFORE USING YOUR APPLIANCE Remove all packing material before using your appliance. IMPORTANT: Before connecting the unit to a power source, let it stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

  • Page 10: Operating Your Wine Cooler

    OPERATING YOUR WINE COOLER CONTROLS POWER To turn the unit ON or OFF when in the default program display, press ON/OFF LIGHT Controls the LED display. Press for three seconds to display the temperature inside the cooler. It will flash the number for 4 seconds and then return to the setting temperature display.
  • Page 11 Do not connect or disconnect the electric plug when your hands are wet. Do not store chemicals in or near your wine cooler. Be especially mindful that the rear of your wine cooler is the hottest part. Do not place any electrical appliance on top of your wine cooler.
  • Page 12 ENERGY SAVING TIPS The unit should be located in the coolest area of the room away from heat sources or direct sunlight. Ensure that the unit has proper allowances on all sides for proper ventilation. Never cover any air vents. Only open the cooler door for as long as necessary.

  • Page 13: Troubleshooting

    TROUBLESHOOTING You can solve many common cooler problems easily, saving you the cost of a possible service call. Try the following suggestions to see if you can solve the problem before contacting Vinotemp at info@vinotemp.com. SOLUTIONS PROBLEM POSSIBLE CAUSE Wine cooler does not...

  • Page 14: Terms Of Sale And Warranty

    Note: Unfinished wood is subject to warping; all wood surfaces must be sealed before placing cellar into service. Improper placement of the unit will void the warranty. By Vinotemp in writing, any third party repair facility must be pre- approved before providing parts free of charge.
  • Page 15 1 7 6 2 1 S o u t h S u s a n a R o a d , R a n c h o D o m i n g u e z , C a l i f o r n i a 9 0 2 2 1 i n f o @ v i n o t e m p .

  • Page 16: Service & Important Notice

    Rancho Dominguez, CA 90221 www.vinotemp.com Vinotemp is a registered trademark of Vinotemp International. All products, features, and services are subject to change without notice. We cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes.
