Summary of Contents for WinSystems SBC35-427

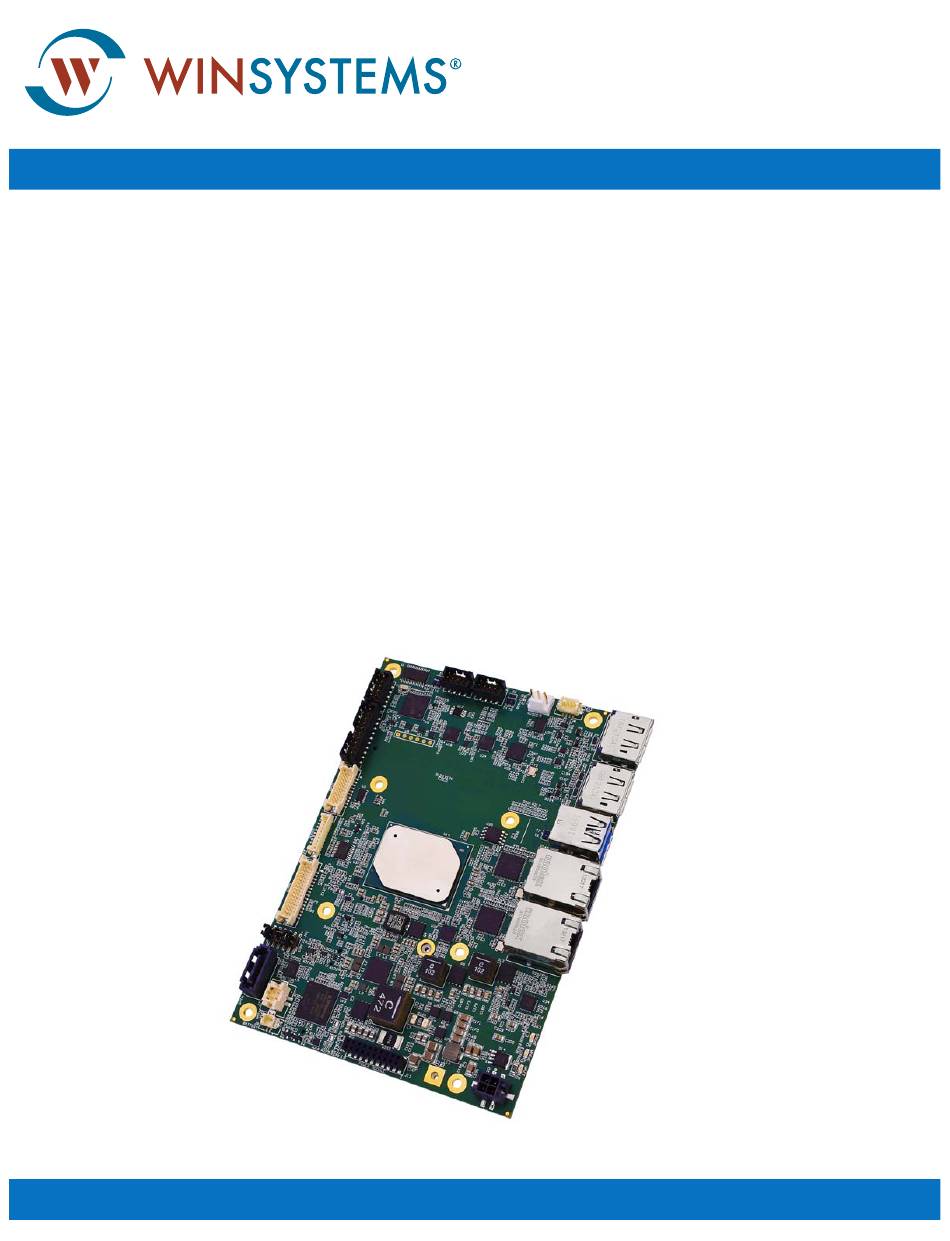

- Page 1 SBC35-427 Industrial Single Board Computer with ® Intel Atom™ E3900 processor, Dual Ethernet, Multi-Display, and Expansion Product Manual WinSystems, Inc. | 715 Stadium Drive, Arlington, Texas 76011 | 817-274-7553 | info@winsystems.com | www.winsystems.com...
- Page 2 Copyright 2019, WinSystems, Inc. No part of this document may be copied or reproduced in any form or by any means without the prior written consent of WinSystems, Inc. The information in the document is subject to change without notice. The information furnished by WinSystems, Inc.
-
Page 3: Table Of Contents
SBC35-427 Table of Contents Before You Begin........... 1 1.1 Warnings . - Page 4 7.5.20 J502 - WinSystems Modular IO80........
-
Page 5: Before You Begin
(including cable drawings and pinouts) that can be used with your SBC35-427. Functionality The SBC35-427 board is a small form factor 3.5-inch single board computer (SBC) featuring the latest generation Intel Apollo Lake-I SOC processor. This full-featured SBC supports three independent video displays (two DisplayPort and one LVDS video), dual Ethernet, two USB 3.1 Gen 1 ports,... -
Page 6: Features
Expansion options are provided through the M.2 Socket 1 with E key, Mini PCIe socket (with mSATA support) and WinSystems Modular IO80 interface. The SBC35-427 board supports up to 8 GB of socketed SODIMM DDR3L Error Correcting Code (ECC) SDRAM. Features The SBC35-427 provides the following features. - Page 7 2x USB 3.1 Gen 1 ports • 9x USB 2.0 ports – 4x USB 2.0 available on USB header – 2x USB 2.0 on WinSystems Modular IO80 – 1x USB 2.0 on M.2 – 1x USB 2.0 on Mini PCIe card –...
- Page 8 SBC35-427/Features Industrial Operating Temperature • -40 to +85°C (-40 to +185°F) Additional Features • Hardware security - Trusted Platform Module (TPM) enabled • Watchdog timer adjustable from 1 second to 255 minute reset • RoHS compliant • Backlight power supported •...
-
Page 9: General Operation
SBC35-427/General Operation General Operation System Block Diagram WinSystems’ SBC35-427 is a small form factor single board computer (SBC) featuring the latest generation Intel Apollo Lake-I SOC processor. Its small size, low power, rugged design, and extended operational temperature make it a great fit for rugged embedded systems in the industrial control, transportation, energy, and industrial IoT markets. -
Page 10: Specifications
The board has expansion capabilities via a M.2 Socket 1 with E key, Mini PCIe socket (with mSATA support) and WinSystems Modular IO80 interface. The SBC35-427 supports Linux, Windows 10, DOS, and other x86- compatible real-time operating systems. Drivers are available from the WinSystems website. -
Page 11: Configuration
SBC35-427/Configuration Configuration This section describes the SBC35-427 components and configuration. Component Layout 7.1.1 Top View 2x USB 2.0 2x USB 2.0 DisplayPort 1X RS232 DisplayPort 2X RS232/ 422/485 2x USB 3.0 8x GPIO ENET AUDIO ENET LVDS and Backlight SATA... - Page 12 SBC35-427/Configuration Table 2: Top view components Item Description Reference Legacy RS232 Header page 16 HD Audio Header page 16 SATA 6Gb/s Port page 19 Serial Ports (RS232/422/485) Header page 17 GPIO General-Purpose Input/Output Header page 20 LVDS Data and Backlight Header...
-
Page 13: Bottom View
Item Description Reference J500 System Memory page 19 J501 Mini PCIe (with mSATA Support) page 23 J502 WinSystems Modular IO80 page 22 J503 M.2 Socket 1, with E key page 23 J504 USB Touchscreen Header page 15 v1.0 www.winsystems.com Page 9... -
Page 14: Watchdog Timer (Wdt)
The WDT is controlled through a set of virtual registers that are exposed to Apollo Lake applications by the EC on the SBC35-427 board. The WDT can be programmed to count in either seconds or minutes; it has a minimum granularity of 1 second, and a maximum granularity of 255 minutes. -
Page 15: Connectors
SBC35-427/Configuration Connectors 7.5.1 J20 - Input Power Header Use this connection to supply power to the SBC35-427. This computer supports a wide range DC input power from 9V to 50V. Layout and Pin Reference Name Name Voltage In (VIN) Voltage In (VIN) -
Page 16: J12 - Power Module Header
SBC35-427/Configuration 7.5.2 J12 - Power Module Header This connection accepts WinSystems power modules providing additional power options such as PoE PD, and UPS backup. Contact a WinSystems Applications Engineer at +1-817-274-7553. Layout and Pin Reference Diagram Name Name V12_RUN PM_GPIO0... -
Page 17: J7 - Sata Power Header
SBC35-427/Configuration Part Number: DF13C-2P-1.25V (51) Matching Connector • Hirose DF13C 1.25 mm 2-pin Part Number: DF13C-2S-1.25C 7.5.4 J7 - SATA Power Header Power is supplied to the SATA device via the connector at J7. Layout and Pin Reference Name Name... -
Page 18: J6 - Lvds Data And Backlight Header
Part Number: DF13C-2S-1.25C 7.5.6 J6 - LVDS Data and Backlight Header The SBC35-427 supports single channel LVDS flat panel displays with resolutions up to 1920x1200 at 24 bpp. The LVDS output signals are odd bus, differential signals to the LVDS receiver. -
Page 19: J504 - Usb Touchscreen Header
SBC35-427/Configuration Part Number: DF13EA-30DP-1.25V(51) Matching Connectors • Hirose DF13C 1.25 mm double row 30-pin Part Number: DF13-30DS-1.25C 7.5.7 J504 - USB Touchscreen Header J504 provides plug-and-play support for a USB touchscreen. Aside from a simpler and faster interface, it also provides power within the USB cable, eliminating the need for a separate, dedicated cable to power the touchscreen. -
Page 20: Sp500 - Speaker
Part Number: DF13C-10S-1.25C 7.5.11 J1 - Legacy RS232 Header The legacy RS232 header provides port IO addresses defined in the original PC specification. The legacy UART allows software originally designed for older PCs to function on the SBC35-427. v1.0 www.winsystems.com Page 16... -
Page 21: J4 - Serial Ports (Rs232/422/485) Header
SBC35-427/Configuration Layout and Pin Reference Diagram Name Name Connector • Molex Milli-Grid header, shrouded with locking window Part Number: 87832-1006 Matching Connectors • Molex Milli-Grid receptacles (with locking ramp) Part Number: 51110-1060 Warning Do not use receptacle with center polarization key. -
Page 22: J10/J11 - Usb 2.0 Port 2X Headers
SBC35-427/Configuration Connector • Molex Milli-Grid header, shrouded with center polarization slot and locking windows Part Number: 87832-2020 Matching Connectors • Molex Milli-Grid receptacles with center polarization key and locking ramps Part Number: 51110-2051 7.5.13 J10/J11 - USB 2.0 Port 2x Headers J10 and J11 provide four USB 2.0 ports supplying 500 mA minimum... -
Page 23: J17 - Usb 3.1 Gen 1 Ports
SBC35-427/Configuration 7.5.14 J17 - USB 3.1 Gen 1 Ports J17 provides two USB 3.1 Gen 1 Type A ports. These ports supply 1A minimum continuous current per channel and 5 Gbps transfer speeds. Connector • Dual-port stacked standard USB 3.1 Gen 1 Type A Matching Connector •... -
Page 24: J5 - Gpio General-Purpose Input/Output Header
SBC35-427/Configuration 7.5.18 J5 - GPIO General-Purpose Input/Output Header The SBC35-427 supplies eight 5V-tolerant GPIO lines with rising/falling edge event sense interrupt generation. Layout and Pin Reference Name Name GPIO_0 GPIO_1 GPIO_2 GPIO_3 GPIO_4 GPIO_5 GPIO_6 GPIO_7 Connector • Hirose DF13 series 1.25 mm double row 30-pin Part Number: DF13EA-20DP-1.25V(51) -
Page 25: J14 - Analog Inputs (Analog To Digital) Header
SBC35-427/Configuration 7.5.19 J14 - Analog Inputs (Analog to Digital) Header Layout and Pin Reference Name ADC_CH0 ADC_CH1 Connector • Hirose DF13 series 1.25 mm 4-pin Part Number: DF13C-4P-1.25V (51) Matching Connector • Hirose DF13C 1.25 mm 4-pin Part Number: DF13C-4S-1.25C v1.0... -
Page 26: J502 - Winsystems Modular Io80
SBC35-427/Configuration 7.5.20 J502 - WinSystems Modular IO80 Layout and Pin Reference Name Name Name Name PCIE4_TX+ USB3_TX+ PCIE4_TX- USB3_TX- RESERVED LPC_CLK (3.3V) RESERVED LPC_FRAME (3.3V) PCIE4_RX+ USB3_RX+ LPC_AD3 (3.3V) PCIE4_RX- USB3_RX- RESERVED LPC_AD2 (3.3V) RESERVED LPC_AD1 (3.3V) PCIE5_TX+ USB2_D0+ LPC_AD0 (3.3V) -
Page 27: J503 - M.2 Socket 1, With E Key
7.5.22 J501 - Mini PCIe (with mSATA Support) The SBC35-427 Mini PCIe socket supports a variety of peripherals as available in this format. Though the sockets support other devices, they are most often used to add mSATA SSD, wireless Ethernet cards from Broadcom, Foxconn (Atheros), or others. -
Page 28: Led Indicators
If the EC_LED is toggling, the chip is in full on running state. If the EC_LED is not toggling, then the chip has entered the programmed sleep state. BIOS Functionality The SBC35-427 BIOS settings and option descriptions can be found in our supplemental SBC35-427 BIOS Manual. Software Description This section provides details on the AMI BIOS components to be used in the implementation of the SBC35-427 BIOS firmware. -
Page 29: Software Design Specification: Boot Device Configuration
SBC35-427/BIOS Functionality 8.1.3 Software Design Specification: Boot Device Configuration The BIOS supports booting an OS from the following devices: • USB mass storage device • Serial ATA (SATA) device • Network boot - PXE • eMMC • M.2 mass storage device 8.1.4 Software Design Specification: BIOS Update Mechanisms... -
Page 30: Bios Update With Uefi Shell
1. Insert a USB flash drive containing the BIOS update program into a USB socket on the SBC35-427 platform. 2. Turn on the SBC35-427 and press the ESC or DEL key during the boot process, which starts the BIOS setup utility. -
Page 31: Embedded Controller (Ec) Update With Uefi Shell
SBC35-427/BIOS Functionality 5. Press Enter. The SBC35-427 executes the built-in UEFI shell, and displays a list of attached storage devices. The USB flash drive shows up in the list; depending on other boot devices attached, it may be listed as fs0, fs1, etc. -
Page 32: Process
1. Insert a USB flash drive containing the EC update program into a USB socket on the SBC35-427 platform. 2. Turn on the SBC35-427 and press the ESC or DEL key during the boot process, which starts the BIOS setup utility. -
Page 33: Accessories And Cables
J8 - External Battery Header on Hirose DF13C 1.25 mm 2-pin page 12 Standoff kits are available and recommended for use with the SBC35-427. The following table lists the items contained in each kit. Table 5: Standoff kits Component... -
Page 34: Software Drivers
SBC35-427/Software Drivers 10. Software Drivers Go to www.winsystems.com for information on available software drivers. v1.0 www.winsystems.com Page 30... -
Page 35: Best Practices
The SBC35-427 requires 9V to 50V to operate. Verify the power connections. Incorrect voltages can cause catastrophic damage. The SBC35-427 has a single power connector at J20. A single 9V-50V DC input and ground is required to power the board. - Page 36 Power Supply OFF—Always turn off the power supply before connecting to the I/O Module. Do not hot-plug the SBC35-427 on a host platform that is already powered. I/O Connections OFF—Turn off all I/O connections before connecting them to the embedded computer modules or any I/O cards.
- Page 37 SBC35-427/Best Practices Do not bend or flex the SBC35-427—Bending or flexing can cause irreparable damage. Embedded computer modules are especially sensitive to flexing or bending around ball grid array (BGA) devices. BGA devices are extremely rigid by design, and flexing or bending the embedded computer module can cause the BGA to tear away from the printed circuit board.
- Page 38 SBC35-427/Best Practices Adding WinSystems Modular IO80 Boards Be careful when adding Modular IO80 boards to the SBC35-427— Never allow the power to be turned on when a Modular IO80 board has been improperly plugged onto the SBC35-427. Conformal Coating Applying conformal coating to a WinSystems product does not in itself void the product warranty, if it is properly removed prior to return.
-
Page 39: Mechanical Drawings
SBC35-427/Mechanical Drawings Appendix B. Mechanical Drawings SBC35-427 Mechanical Drawing v1.0 www.winsystems.com Page 35... -
Page 40: Warranty Information
Customer for the purchase of Products or licensing of Software hereunder. In the event this Order is placed in the hands of an attorney or collection agency by WinSystems to collect any sums due hereunder to WinSystems, Customer shall pay all reasonable attorney's fees, expenses, collection and court costs incurred by WinSystems.
