SMART Fortwo 451 Series Introduction Into Service Manual page 11

Overview
smart fortwo electric drive coupé
smart fortwo electric drive cabrio
smart fortwo electric drive coupé

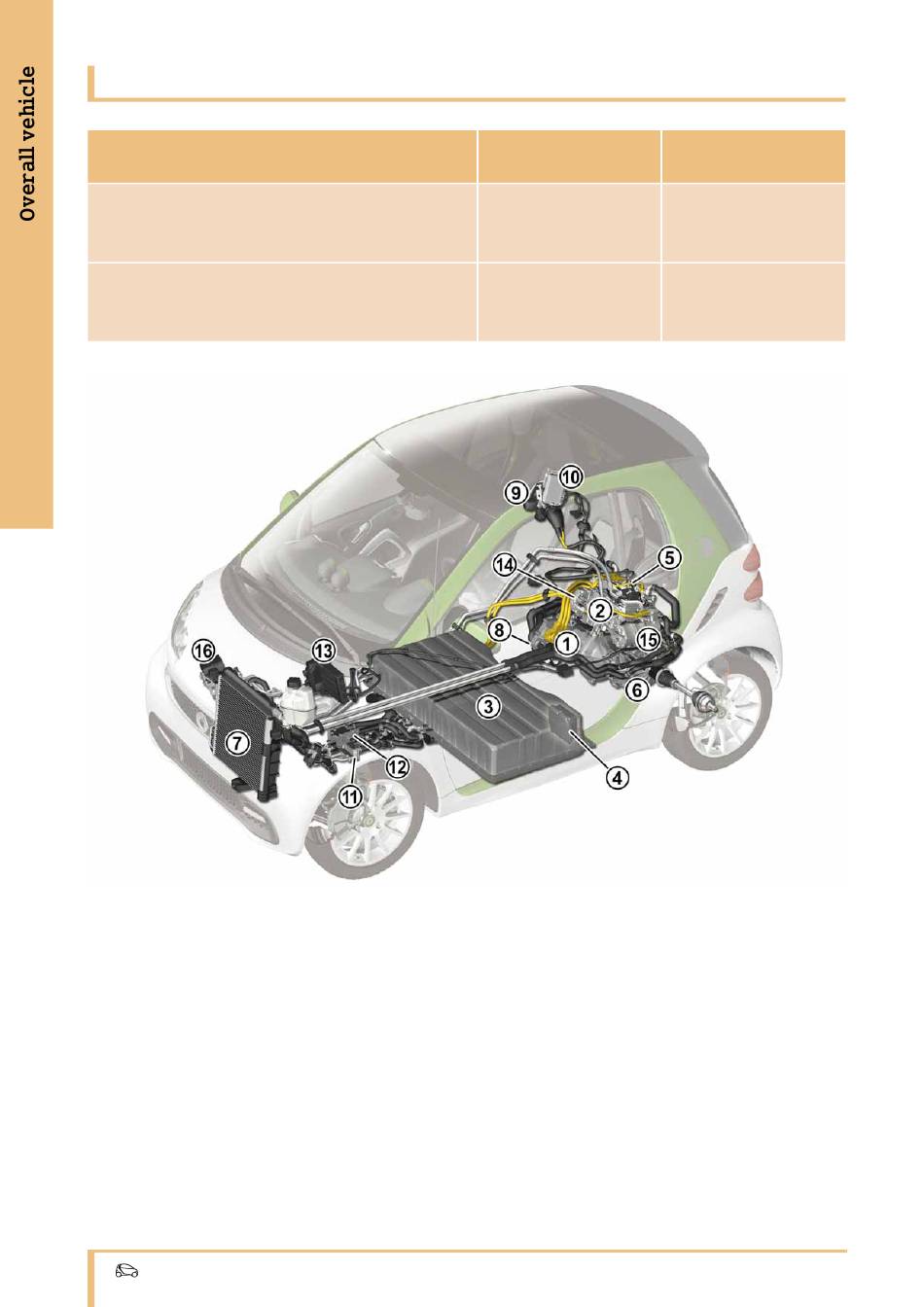

1 Electric motor
2 Power electronics control unit
3 High-voltage battery
4 Battery management system control unit
5 On-board charger
6 Transmission
7 Cooling module
8 Brake booster vacuum pump
9 Charger feed-in socket
10 Introduction of smart fortwo electric drive (3rd Generation) • Model Series 451
Model 451 Model
451.390
451.490
10 Drivetrain control unit
11 High-voltage battery heat exchanger (chiller)
12 High-voltage battery heater
13 Interior high-voltage PTC heater
14 High-voltage adapter plate fuse box
15 Electric refrigerant compressor
16 Electric vehicle sound generator
Motor
780.993
780.993
P00.00-4813-00
