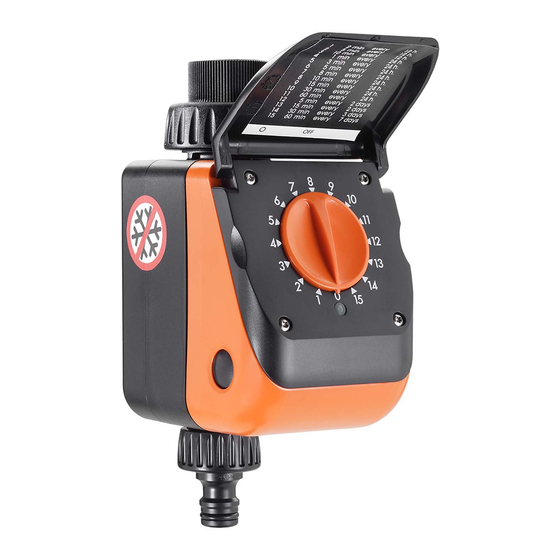

claber aquauno LOGICA PLUS Instruction Manual

Automatic timer with pre-set watering cycles
Hide thumbs Also See for aquauno LOGICA PLUS:

Advertisement

Quick Links

Download this manual
a q u a u n o
UK
AUTOMATIC TIMER
W I T H
P R E - S E T
W A T E R I N G
C Y C L E S
I N S T R U C T I O N S
M A N U A L
8411

Advertisement

loading
Need help?

Need help?

Do you have a question about the aquauno LOGICA PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for claber aquauno LOGICA PLUS

Summary of Contents for claber aquauno LOGICA PLUS

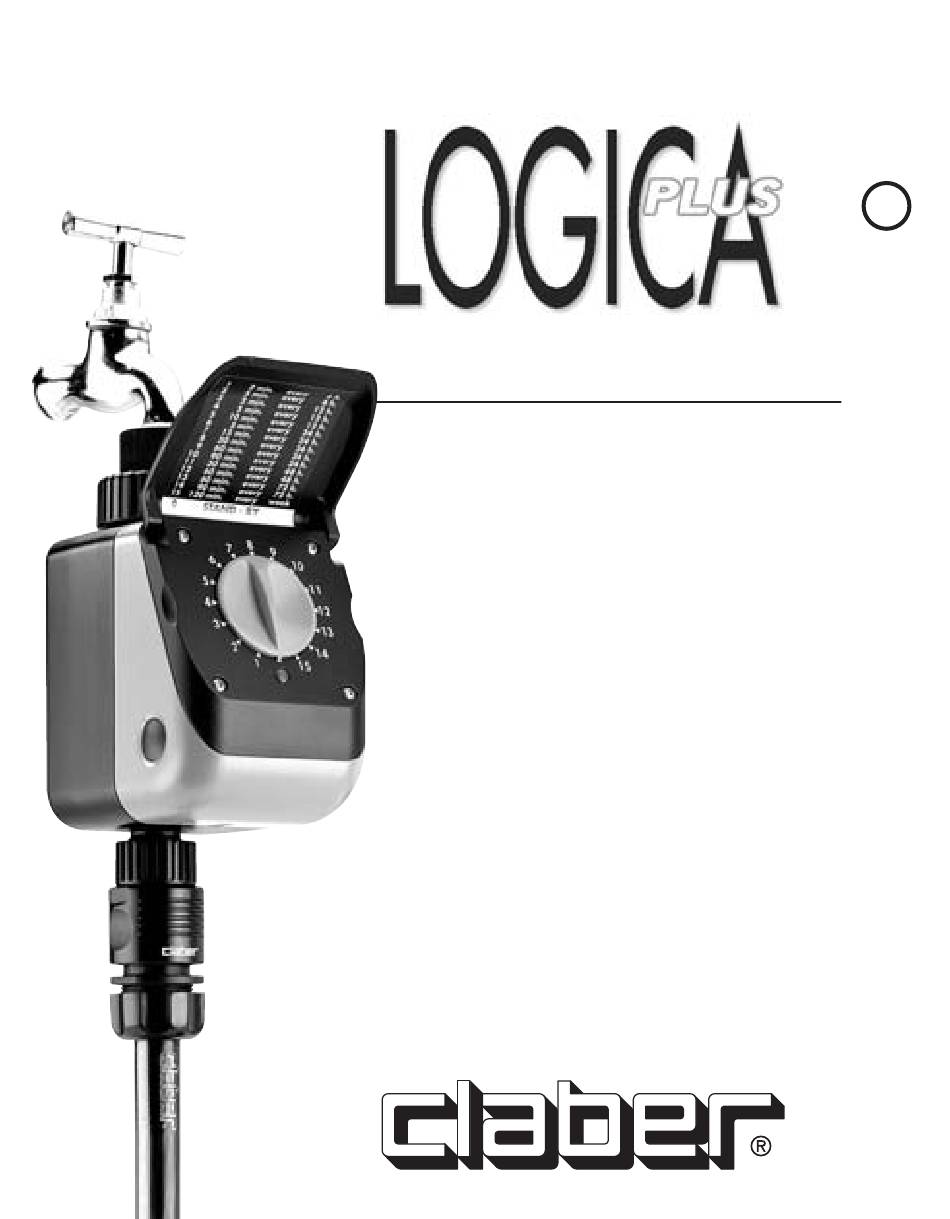

  • Page 1 a q u a u n o AUTOMATIC TIMER W I T H P R E - S E T W A T E R I N G C Y C L E S I N S T R U C T I O N S M A N U A L 8411...

  • Page 2: Declaration Of Conformity

    AQUAUNO LOGICA PLUS THANK YOU FOR CHOOSING OUR TIMER. CAREFULLY READ THE INSTRUCTIONS MANUAL BEFORE PROGRAMMING. EACH SECTION CONTAINS ALL THE INFORMATION REQUIRED FOR THE CORRECT EXECUTION OF EACH OPERATION. LEGENDA: WASHABLE FILTER 0 = STAND BY = WAITING POSITION 3/4"...
  • Page 4 CONNECTION TO THE TAP UNSCREW EXTERNAL RING NUT C AND TIGHTEN 3/4" FEMALE CONNECTOR A ON 3/4" TAB B. FIX THE TIMER TO THE TAP BY TIGHTENING RING NUT C.
  • Page 5 WAT E R P R E S S U R E TA B L E l/min 11 16 22 27 31 35 VOLTAGE -POWER TABLE 1x 9 VOLT ALKALINE BATTERY. DURATION: THIS BATTERY IS SUFFICIENT TO POWER THE TIMER FOR AN ENTIRE SEASON WITH AN AVERAGE OF 4 DAILY WATERING CYCLES.
  • Page 6 SINGLE-CONTROL KNOB...
  • Page 7 SIMPLY ROTATE THE SINGLE-CONTROL KNOB TO ONE OF THE 15 NUMBERED NOTCHES (1 TO 15) TO SELECT ANY OF THE 15 PRESET WATERING PROGRAMS. IF THE LED FLASHES ABOUT EVERY 2 SECONDS, THE BATTERY IS CHARGED; IF IT REMAINS OFF, THE BATTERY HAS TO BE CHANGED (WE ADVISE YOU ALWAYS TO CHANGE THE BATTERY ONCE A YEAR).
  • Page 8 FITTING THE BATTERY USING THE TWO SIDE BUTTONS ON THE FRONT PANEL, SIMPLY DISCONNECT AND PRESS-FIT THE BATTERY TERMINALS. MAKE SURE THAT THE BATTERY (9 V.) IS CORRECTLY POSITIONED IN ITS HOUSING.

  • Page 9: For Example

    PROGRAMMING THE WATERING TIMES OF THE 15 PRESET CYCLES PERMIT CALIBRATED WATERING TO SUIT THE DIFFERENT REQUIREMENTS OF THE PLANTS ACCORDING TO THE SPECIES AND ENVIRONMENT. 1 WARNING: THE SELECTED PROGRAM STARTS IMMEDIATELY (WITH A DELAY OF 10 SECONDS) 2 WARNING: IF THE NEW PROGRAM IS SET THE VALVE CLOSES IF OPEN, THE NEW WATERING CYCLE COUNT STARTS.
  • Page 10 FUNZIONE MANUALE/STAND-BY IF THE KNOB IS SET TO ONE OF THE 15 SELECTABLE PROGRAMS, AFTER 10 SECONDS THE TIMER ACTS LIKE AN ORDINARY TAP. TO STOP THE WATER SIMPLY TURN THE KNOB TO 0 (STANB-BY). IMPORTANT: THIS FUNCTION CANCELS THE PROGRAM PREVIOUSLY SET, THEREBY MAKING IT NECESSARY TO RE-PROGRAM THE TIMER (SEE PAGE 21).
  • Page 11 CONNECTING TO A RAIN SENSOR THE AQUAUNO LOGICA CAN BE CONNECTED TO A RAIN SENSOR (CLABER CODE 90915). THE RAIN SENSOR CUTS OFF THE AQUAUNO LOGICA WATERING PROGRAM IN CASE OF RAIN, RESTORING IT AUTOMATICALLY WHEN THERE IS NO MORE WATER LEFT IN THE SENSOR.
  • Page 12 THE SYMBOL IN QUESTION, APPLIED TO THE PRODUCT OR TO THE PACKAGE, INDICATES THAT THE PRODUCT SHOULD NOT BE CONSIDERED NORMAL DOMESTIC WASTE, BUT MUST BE TAKEN TO THE APPROPRIATE COLLECTION POINT FOR THE RECYCLING OF ELECTRIC AND ELECTRONIC DEVICES. ENSURING THAT YOU DISPOSE OF THE PRODUCT IN THE APPROPRIATE WAY CONTRIBUTES TO AVOID POTENTIAL NEGATIVE...

  • Page 13: Warranty

    EMPLOYED IN NORMAL WORKING CONDITIONS, IF MAINTENANCE HAS BEEN CARRIED OUT BY AUTHORIZED PERSONNEL AND IF IT HAS NOT BEEN MODIFIED IN ANY WAY. CLABER SHALL NOT BE LIABLE FOR DAMAGE DUE TO THE CUSTOMER’S MISUSE OR TO ERRORS OCCURED DURING INSTALLATION.
