UNPACKING & INSTALLATION

Air Supply Connection

The MEK Rub Test machine is supplied with a 2 stage air filter assembly pre-installed on the back of the unit,
bypassing or removal of these filters will void the machine warranty, if problems due to filters plugging up occur
the air supply problem should be addressed before continuing use of the machine.
Once the air supply has been connected push the handle on the top of the filter assembly down to supply air the
machine pneumatics, check the pressure gauge (located in regulator) on the tower face on the front of the machine.
The correct operating pressure is 80 psi (550 Kpa). If the pressure is not correct adjust the regulator to the correct
pressure.
Correct operating pressure is important to achieving accurate test results, incorrect pressure
NOTE
will effect the number of strokes/min. Set pressure to 80 psi (550 Kpa) setting is done statically
do not try to adjust the pressure while the machine is running.
CAUTION

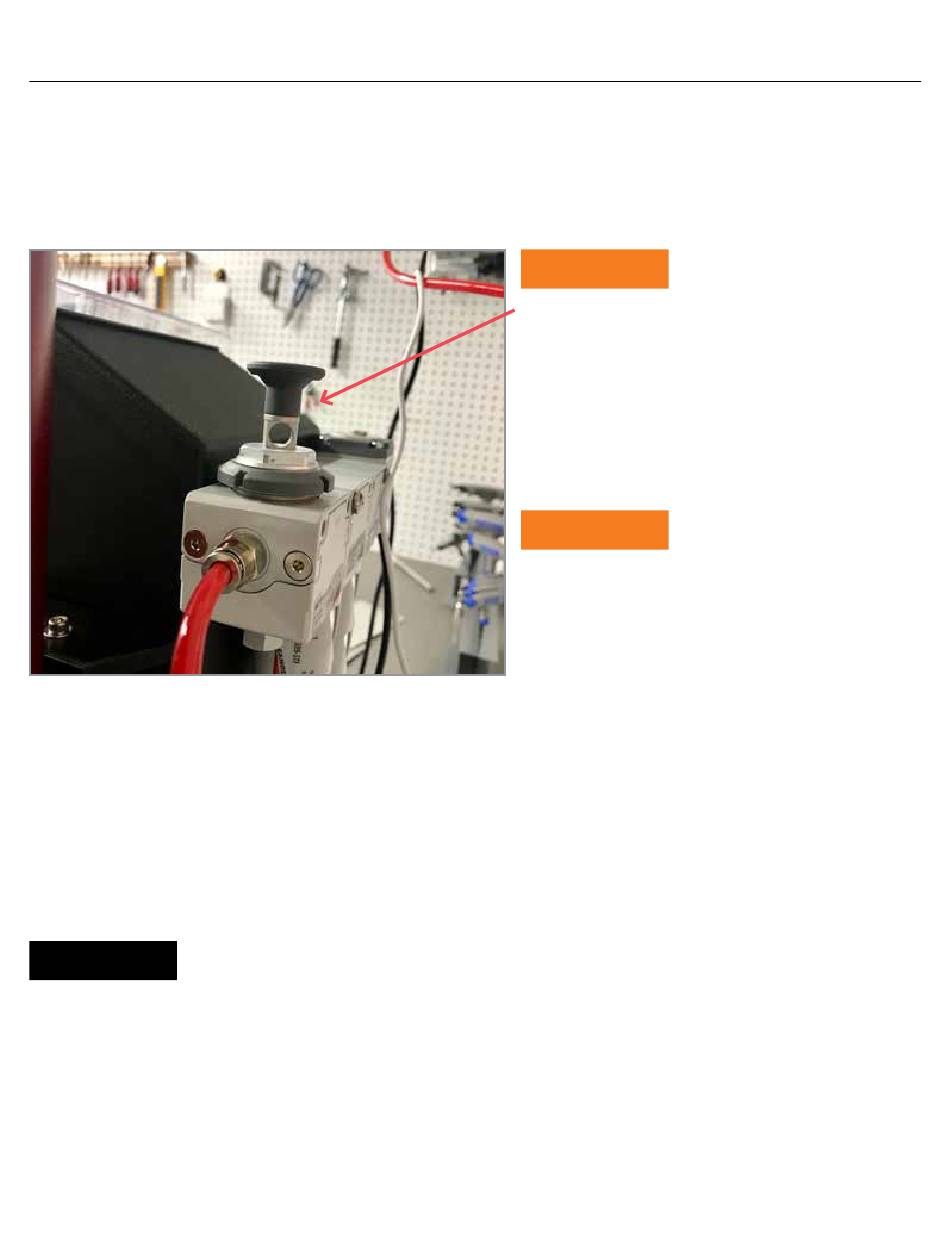

Air Supply shutoff, before connecting the airsupply
to the machine make sure that the machine airshut
off valve is in the closed position. (Pull up on the
handle to shutoff air supply)
Connect the air supply to the inlet side of the filter
assembly
CAUTION
Clean, dry, oil free air only, any use of oiler's or dirty
air supply will void your warranty. Use of synthetic
oils in the air supply can cause severe damage to
the internal valve seals and must be avoided
