Real application example
After connecting the sensor, you only have to upload one of the example codes included in the Waspmote IDE, for instance the
example number one:
http://www.libelium.com/development/waspmote/examples/4-20ma-01-current-loop-basic-example
In the serial monitor you should see that the sensor is transmitting 4 mA. The 4 mA "bottom of span" signal allows the receiver
to detect a broken wire or failed instrument. Remember that in normal operation, a 4-20 mA sensor delivers between 4 and
20 mA. Any current above or below means malfunction.
The constant-current feature of a current loop cancels out voltage drop errors due to long wiring runs (of course this would also
be true if you selected different current values for zero and span [e.g., 5-30 mA]).

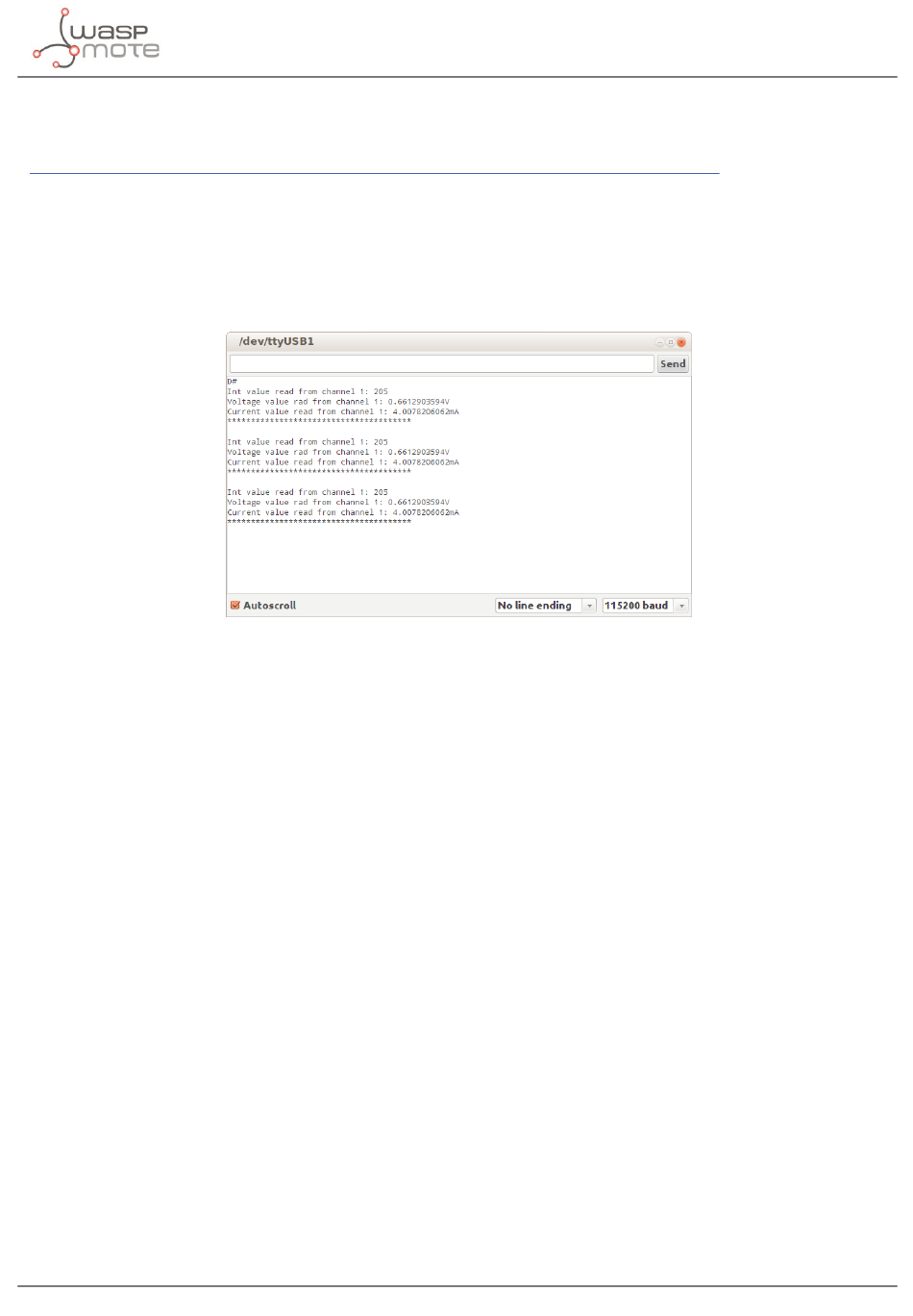

Figure : Data reception from the 4-20 mA sensor
-34-
