Introduction

9.3.3. Type 4 loop current

Type 4 transmitters have 4 wires powered by the source voltage in them. The transmitter powers the current loop and the
receptor acts a floating load.

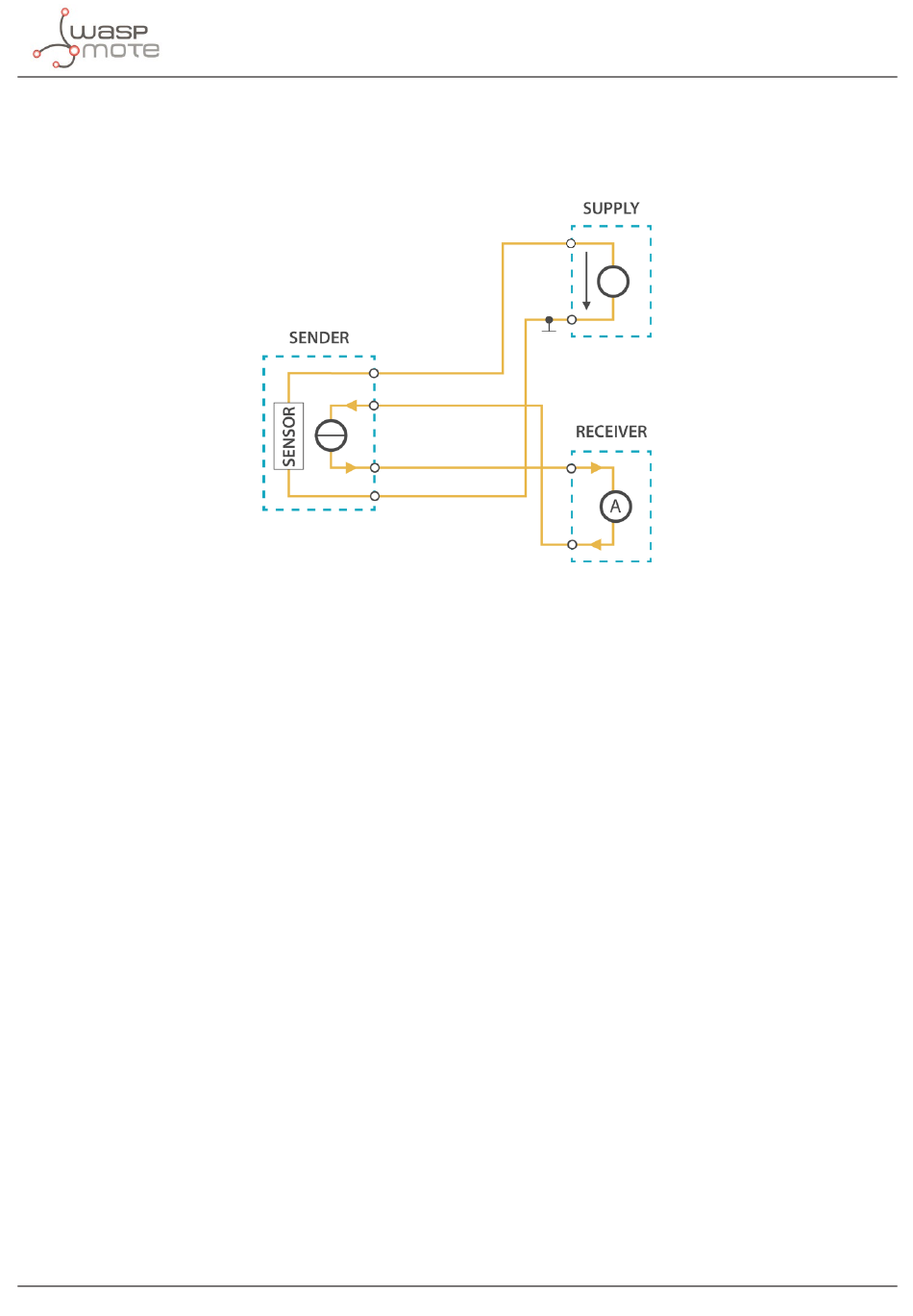

Figure : 4-20 mA type 4 connection
-22-
v7.1
