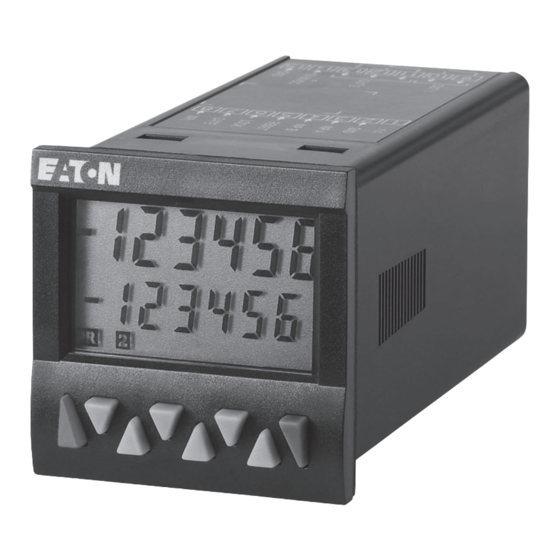

- Page 1 Instruction leaflet IL05407002E Effective October 2010 E5-648-C242x electronic preset counter with two presets Downloaded from Elcodis.com electronic components distributor...
-
Page 2: Table Of Contents
7 .9.3 Setting the tracking presets ..13 7 .10 Set function ..... . 13 eaton corporation www.eaton.com Downloaded from Elcodis.com... -
Page 3: Preface
MPI input for Display Latch, Teach-In function or Set function • lOw-vOlTAGe NeTwOrk vIA A swITCh Or CIrCUIT breAker. Supply voltage 90–260 Vac or 10–30 Vdc INsTAllATION Or MAINTeNANCe wOrk MUsT ONly be CArrIed • OUT by qUAlIfIed persONNel. eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor... -
Page 4: Display/Operating Elements
Pulse counter: no counting while active • is displayed Frequency meter: no counting while active • Timer: no time measurement while active (Gate.hi); • no time measurement while not active (Gate.Lo) eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor... -
Page 5: Selecting The Menu Items
Pr.Out 1 settings are saved in the EEPROM. t.Out — 00.10 — The text SAVE is displayed for 2s Pr.Out 2 t.Out 2 — 00.10 00.10 eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor... -
Page 6: Setting The Basic Function
See also 7 .9 When the MPI input is activated, the preset counter will be set to the value specified in the parameter SEtPt. See also 7 .10 eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor... - Page 7 Manual reset sets both counters to zero. Electrical reset only sets the main counter to zero Multiplication factor Multiplication factor can be programmed from 00.0001 to 99.9999. The setting 00.0000 will not be accepted eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor...
-
Page 8: Tacho/Frequency Meter
When the MPI input is activated, the current frequency for the preset that has just been selected will be adopted as the new preset value. See also 7 .9 eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor... -
Page 9: Timer
2 decimal places 0.000 3 decimal places Moving average Moving average calculated AVG 2: over 2 measurements AVG 5: over 5 measurements AVG 10: over 10 measurements AVG 20: over 20 measurements eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor... - Page 10 Batch counter counts the number of automatic repetitions of preset 2 Output 1 active when batch counter ≥ preset 1 Manual reset sets both counters to zero electrical reset sets only main counter to zero eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor...
- Page 11 For the subtracting modes (SUB, SUBAR, SUBBAT and SUBTOT), a “Reset” (via the key or input) resets the counter/the time counter to a new preset value 2. Only electrical reset possible (reset input) Only manual reset possible (red key) eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor...
- Page 12 Relay becomes de-energized when the preset value is reached. preset 1 and subsequently passive with positive direction and when count ≥ preset 1 Duration of timed signal of output 1, programmable from 00.01 to 99.99s. Timed signal is post-triggered eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor...
-
Page 13: Setting The Presets
2 can be set either via the decade keypad or via the Teach-In function. However the value for preset 1 must be entered via the decade keypad. In this instance, it is not possible to use the Teach-In function. eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor... -
Page 14: Connections
Response time of the outputs • Relay contact N.O.2 Relays: <13 ms Relay contact N.C.2 • AC: 90–260 Vac N~ Supply voltage DC: 10–30 Vdc AC: 90–260 Vac L~ Supply voltage DC: GND (0 Vdc) eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor... -
Page 15: Outputs
Plug-in screw terminal: 7-pin, RM 5.08 • Core cross section: max. 2.5 mm² • Signal and control inputs: • Plug-in screw terminal: 8-pin, RM 3.81 • Core cross-section: max. 1.5 mm² • eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor... -
Page 16: Scope Of Delivery
9 kHz 2.7 kHz 2.4 kHz Up.Up Quad 9 kHz 1.2 kHz 1.2 kHz Quad 2 Quad 4 9 kHz 1.2 kHz 0.9 kHz 9 kHz 9 kHz 9 kHz (A-B)/A eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor... -
Page 17: Input Modes: Pulse Counting
Count on rising and on falling edges Inp B: Reverse direction INP A Add: Display 0 --> Preset Sub: Display Preset -> 0 INP B No counting when GATE input is active eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor... -
Page 18: Input Modes: Timing
Inp A: Count input 1 Inp B: Count input 2 Formula: INP A (A – B)/A x100 Counts A INP B Counts B –100% –200% –50% –33% Display No counting when GATE input is active eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor... - Page 19 Inp A: no function Inp B: no function GATE Control of the timing via RESET (manual or electrical) Add: Display 0 --> Preset RESET Sub: Display Preset -> 0 PRESET T2+T3 P-T1 P-T2 P-T2-T3 eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor...
-
Page 20: Input Modes: Frequency Meter
Inp B: Frequency input 2 INP A Formula: INP B Display (A-B)/A Inp A: Frequency input 1 Inp B: Frequency input 2 INP A Formula: (A – B)/A x100 INP B 100% Display eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor... -
Page 21: Output Operations
1312 1110 9 8 7 6 5 n 0 1 2 8 9/0 OUT P1 OUT P1 +/–PR1 +/–PR1 OUT P1 OUT P1 +PR1 +PR1 OUT P1 OUT P1 –PR1 –PR1 OUT P2 OUT P2 eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor... -
Page 22: Dimensional Drawings
Instruction leaflet IL05407002E E5-648-C242x electronic preset counter Effective October 2010 with two presets 18. Dimensional drawings (mm) max. 10.5 15.5 4.25 Figure 2. Dimensions +0.6 Figure 3. Panel cut-out eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor... - Page 23 E5-648-C242x Instruction leaflet IL05407002E electronic preset counter Effective October 2010 with two presets notes: eaton corporation www.eaton.com Downloaded from Elcodis.com electronic components distributor...
- Page 24 Electrical Sector 1111 Superior Ave. Cleveland, OH 44114 United States 877-ETN-CARE (877-386-2273) Eaton.com © 2010 Eaton Corporation PowerChain Management is a registered All Rights Reserved trademark of Eaton Corporation. Printed in USA Publication No. IL05407002E / Z9871 All other trademarks are property of their respective owners.
