GST D-9105RExd Installation And Operation Manual

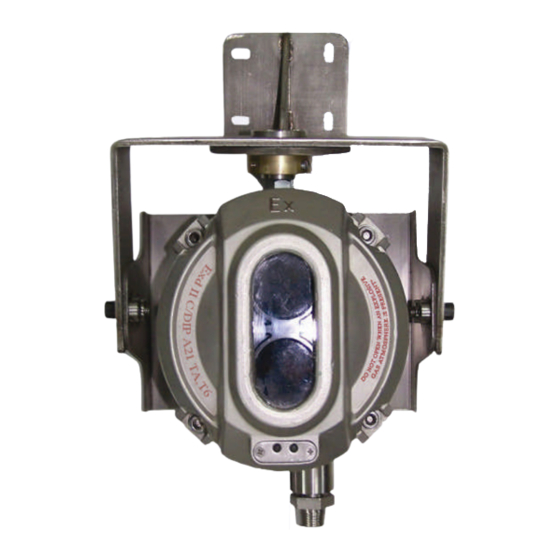

Digital flame proof reflective beam detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D-9105RExd and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GST D-9105RExd

Summary of Contents for GST D-9105RExd

  • Page 2: Table Of Contents

    D-9105RExd Digital Flame Proof Reflective Beam Detector Installation and Operation Manual The Intelligent Solution CONTENTS Overview ..................1 Features ..................1 Technical Specifications ..............2 Structure and Operation Principle ..........4 Mounting and Wiring ..............5 VI Commission ................. 13 VII Operation ..................

  • Page 3: I Overview

    The detector address can be programmed ranging from 1 to 242 using GST programmer. When the detector is not connected with the control panel, fire and fault information can be transmitted through contacts.

  • Page 4: Technical Specifications

    D-9105RExd Digital Flame Proof Reflective Beam Detector Installation and Operation Manual The Intelligent Solution Built-in microprocessor enables intelligent judgment of fire alarm and fault. The detector can calibrate automatically, which ensures one person to complete adjustment in short time. It’ s also convenient to operate.
  • Page 5 The fire signal can be transmitted to the control panel through loop and has to be cleared by the control panel. If it’ s not connected with GST fire alarm control panel, the fire signal has to be cleared by rebooting.

  • Page 6: Structure And Operation Principle

    D-9105RExd Digital Flame Proof Reflective Beam Detector Installation and Operation Manual The Intelligent Solution Length: 344mm Width: 240mm Depth: 212mm(with adjustment frame) 13. Material and Color of Enclosure: Stainless steel, metallic gray 14. Weight: Detector: 6kg Adjustment frame: 3.8kg 15. Mounting Hole Spacing: Spacing for embedding: 70mm x 50mm 16.

  • Page 7: Mounting And Wiring

    D-9105RExd Digital Flame Proof Reflective Beam Detector Installation and Operation Manual The Intelligent Solution collected signals through its microprocessor. When the detector is in normal monitoring state, the intensity of infrared beam received by the receiver is steady at a certain level. When smoke particles enter the detecting area, the intensity of infrared light reaching the receiver falls owing to light scattering.
  • Page 8 D-9105RExd Digital Flame Proof Reflective Beam Detector Installation and Operation Manual The Intelligent Solution ensure the detector not affected by these factors. If the detector is installed on sustaining rack similar to metal tube, make sure the sustaining rack is installed firmly.
  • Page 9 D-9105RExd Digital Flame Proof Reflective Beam Detector Installation and Operation Manual The Intelligent Solution Reflector Detector Fig. 3 When space height is between 5m and 8m, the detector and reflector should be mounted on the two facing walls 0.5m to 1m from the ceiling, as shown in Fig.
  • Page 10 D-9105RExd Digital Flame Proof Reflective Beam Detector Installation and Operation Manual The Intelligent Solution distance between the detector/reflector and top of the building is not less than 0.5m, as shown in Fig. 5. Reflector Reflector Detector Detector Fig. 5 For gable structure with space height about 8m, the detector and reflector should be mounted on the two facing walls 1.5m from the...
  • Page 11 D-9105RExd Digital Flame Proof Reflective Beam Detector Installation and Operation Manual The Intelligent Solution mounted northward, then place the detector on the west wall. For applications where sunlight can reach the detector after reflected, please consider mounting a sunshade over the detector’ s optical pathway or contact our field application engineer for a solution.
  • Page 12 D-9105RExd Digital Flame Proof Reflective Beam Detector Installation and Operation Manual The Intelligent Solution Fig. 7 Installing and adjusting the detector Hang the detector with the lining board onto the adjusting frame and secure them using M5 screw (Fig. 8).
  • Page 13 D-9105RExd Digital Flame Proof Reflective Beam Detector Installation and Operation Manual The Intelligent Solution than 8m (less than or equal to 40m), one reflector is enough. When the distance is more than 40m (less than or equal to 100m), four reflectors are needed.
  • Page 14 The Intelligent Solution Fig. 10 for terminals. Fig. 10 If the detector does not connected with GST fire alarm control panel, D1 and D2 are to be connected with 24VDC power cable polarity-insensitively, K11 and K12 are used as volt-free fire alarm output contact, and K21 and K22 volt-free fault output contact, as in Fig.

  • Page 15: Commission

    Note: If the detector connects with GST fire alarm control panel, only one wiring hole is needed. The other one should be stopped with an end cap, as shown in Fig. 1.
  • Page 16 D-9105RExd Digital Flame Proof Reflective Beam Detector Installation and Operation Manual The Intelligent Solution quite strong, you can go straight to step d). Note: Observe the detector’ s optical pathway carefully to ensure that the received light signal is reflected by the reflector rather than by obscurations like wall, ceiling, or pillar.

  • Page 17: Operation

    D-9105RExd Digital Flame Proof Reflective Beam Detector Installation and Operation Manual The Intelligent Solution Fault test Cover the receiving or transmitting window of the detector quickly with the IR Light Filter to obscure the optical pathway. Yello w LED of the detector should be turned on.
  • Page 18 D-9105RExd Digital Flame Proof Reflective Beam Detector Installation and Operation Manual The Intelligent Solution Setting Address Code The detector offers address code programming for field application. Refer to operation below: (1) Enter I C programming code, and the screen is a “ 0” .

  • Page 19: Troubleshooting

    D-9105RExd Digital Flame Proof Reflective Beam Detector Installation and Operation Manual The Intelligent Solution (3) Press Function and then figure “ 4” , the screen shows “ －” . (4) Input the device type to be set, press Program to begin programming.
  • Page 20 D-9105RExd Digital Flame Proof Reflective Beam Detector Installation and Operation Manual The Intelligent Solution found to be contaminated, please clean it with soft cloth and alcohol. Avoid scratching the surface. Do not clean the surface using water or other chemicals. After cleaning, please commission the detector again to make it work in normal standby state.

  • Page 21: Maintenance

    D-9105RExd Digital Flame Proof Reflective Beam Detector Installation and Operation Manual The Intelligent Solution Reports fault after a period The detector cannot work normally. Commission once more of normal operation Reports fire after operation for some time, The detector has deviated due to...

  • Page 22: Accessories

    D-9105RExd Digital Flame Proof Reflective Beam Detector Installation and Operation Manual The Intelligent Solution  Power up only after all devices are connected.  Commission the detector after installation and maintenance.  During commissioning, the FACP may report detector fault which does not affect commissioning.
  • Page 23 GST China Gulf Security Technology Co., Ltd. No. 80, Changjiang East Road, QETDZ, Qinhuangdao, Hebei, P. R. China 066004 Tel: +86 (0) 335 8502528 Fax: +86 (0) 335 8508942 Email: sales@gst.com.cn www.gst.com.cn GST UK Global System Technology PLC Lion Court, Staunton Harold Hall, Melbourne Road, Ashby de la Zouch,...
