JDS Uniphase ONEEXPERT DSL Getting Started Manual

O
VERVIEW

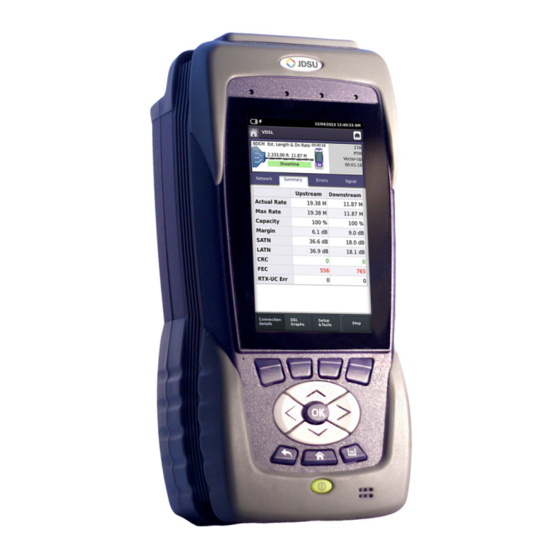

The OneExpert DSL is a modular test platform and with its DSL module, it supports
DSL, copper, services and home networks. The OneExpert DSL Platform includes the
controls and display needed for measurement analysis.
F
EATURES

Modular platform to follow the broadband technology curve

Test ADSL2+/VDSL2 including bonded & vectored pairs, copper, POTS and
coax/HPNA

OneCheck automates field tests and simplifies TDR results

SmartID™ Plus smart probe support for efficient coax home testing

Multi-touch friendly user interface leverages USER experience from smartphones
and tablets

Mobile connectivity application (iOS App) provides remote control, job
management, data enhancements, and technical support content, including
tutorials

StrataSync™ cloud-enabled architecture provides easy Asset and Test Data
Management
P
REPARATION FOR USE
When you unpack the OneExpert DSL, do the following:

Inspect the OneExpert DSL for damage. If damaged, put back in box and
contact JDSU customer service (1-855-ASK-JDSU).

If undamaged, save the box and packing materials in case you need to ship
the OneExpert DSL in the future.

Remove the protective film from the LCD. This film is in place for protection
during shipment. There is tab in the lower right corner for easy removal.
Before using the OneExpert DSL for the first time, do the following:

Turn the OneExpert DSL ON (use the green button on the front of the unit),
and then verify that it is operating properly by navigating through a few
menus.

If the Batt. LED is red, charge the battery.
Getting Started Manual – 22064010 r001 – April 2014
O E
NE XPERT
G S
ETTING TARTED
LEDs
Touch screen
Function keys
Navigation (arrow) keys
System keys
Power On/Off key
DSL
G
UIDE
1
