Liquid Meter FMT 50 PP
Contents
Operating manual
with spare parts list
2
2
4
4
5
5
6
7
8
8
9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMT 50 PP and is the answer not in the manual?

Questions and answers

Related Manuals for Flux FMT 50 PP

Summary of Contents for Flux FMT 50 PP

  • Page 1: Table Of Contents

    Operating manual with spare parts list Liquid Meter FMT 50 PP Contents 1. Product description 2. Safety instructions 3. Technical Description 4. Operation 5. Fault monitoring 6. Meter programming 7. Spare parts construction and spare parts list 8. Dimensional Drawing 9.

  • Page 2: Product Description

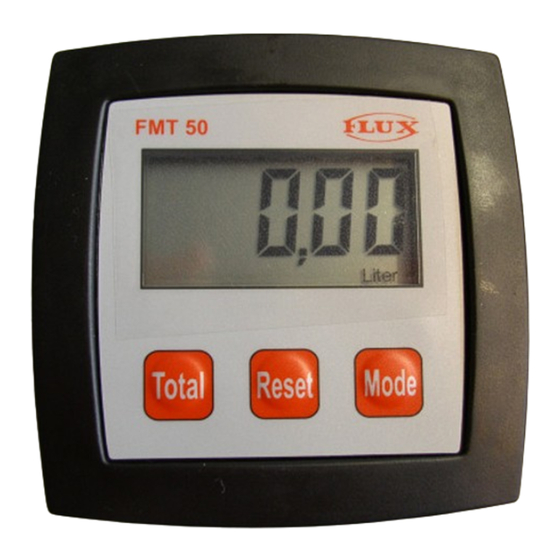

    1. Product description The FMT 50 is a flow meter for flowing liquids based on the measuring principle of a turbine wheel meter. It can be used as a fixed meter or as a manual flow meter. The optional pulse generator allows it to be used in a fluid management system.
  • Page 3 Appropriate use The device may only be used if it is in perfect condition, and then only for its intended purpose, in compliance with all safety regulations, with an awareness of the potential risks, and according to the operating instructions. Any faults that may impair the safety must be rectified immediately. The system and its components are only to be used for handling the liquids listed and the purpose described.

  • Page 4: Technical Description

    3. Technical Description 3.1 Display LC display with five-digit volume indicator with 16 mm high digits and display of the litre measurement unit (optional US-Gal, UK-Gal) and low battery capacity display. The minimum digital step of the measured value is 0.02 litre and that of the non-resettable totalisers 1 litre.

  • Page 5: Fault Monitoring

    5. Fault monitoring 5.1 Battery symbol display in the basic state The built-in 3.6 V lithium battery, type CR ½ AA, is designed for a minimum operating life of approx. 10 years given a 1,000,000 litre flow rate during this period. The appearance of the battery symbol in the basic state indicates that the battery capacity is exhausted and that the battery must be replaced within the next 6 months.
  • Page 6 6.3 Setting the calibrating factor After pressing the "Mode" key, the calibrating factor set appears in the display. Pressing the "Total" key results in the calibrating factor being counted up in 0.010 steps and pressing the „Reset“ key in it being counted down accordingly. Press the "Mode"...

  • Page 7: Spare Parts Construction And Spare Parts List

    7. Spare parts construction and spare parts list Spare parts list Pos. Description Cover complete. + Battery A05 00 001 Measuring chamber + typeplate A05 00 002 Battery 940 04 033 Four cylinder head screws DIN 912 - M 4x45, A2 900 65 016 - 7 -...

  • Page 8: Dimensional Drawing

    8. Dimensional drawing 9. Chart of pressure loss Volumenstrom [L/min] 10. Features Volume flow range 5 – 50 l/min Viscosity range 0.8 – 40 mPa s Operating pressure 4 bar Burst pressure 9 bar Accuracy uncalibrated ± 2% Accuracy calibrated ±...

  • Page 9: Declaration Of Conformity

    Hiermit erklären wir, dass die Bauart des FLUX Flüssigkeits-Mengenmessers FMT 50 in den verschiedenen Werkstoffen und Bauarten in der gelieferten Ausführung den folgenden einschlägigen Bestimmungen entspricht: We herewith confirm that the construction of the FLUX Liquid Meter FMT 50 in different materials and versions corresponds to the following EC-rules: Nous confirmons que la construction du Compteur de Débit FLUX FMT 50 de matériaux et versions différents est...
  • Page 10 Talweg 12 75433 Maulbronn Telefon: 07043 101-0 Telefax: 07043 101-444 Fax International: + 49 7043 101-555 info@flux-pumpen.de www.flux-pumpen.de - 10 -...
