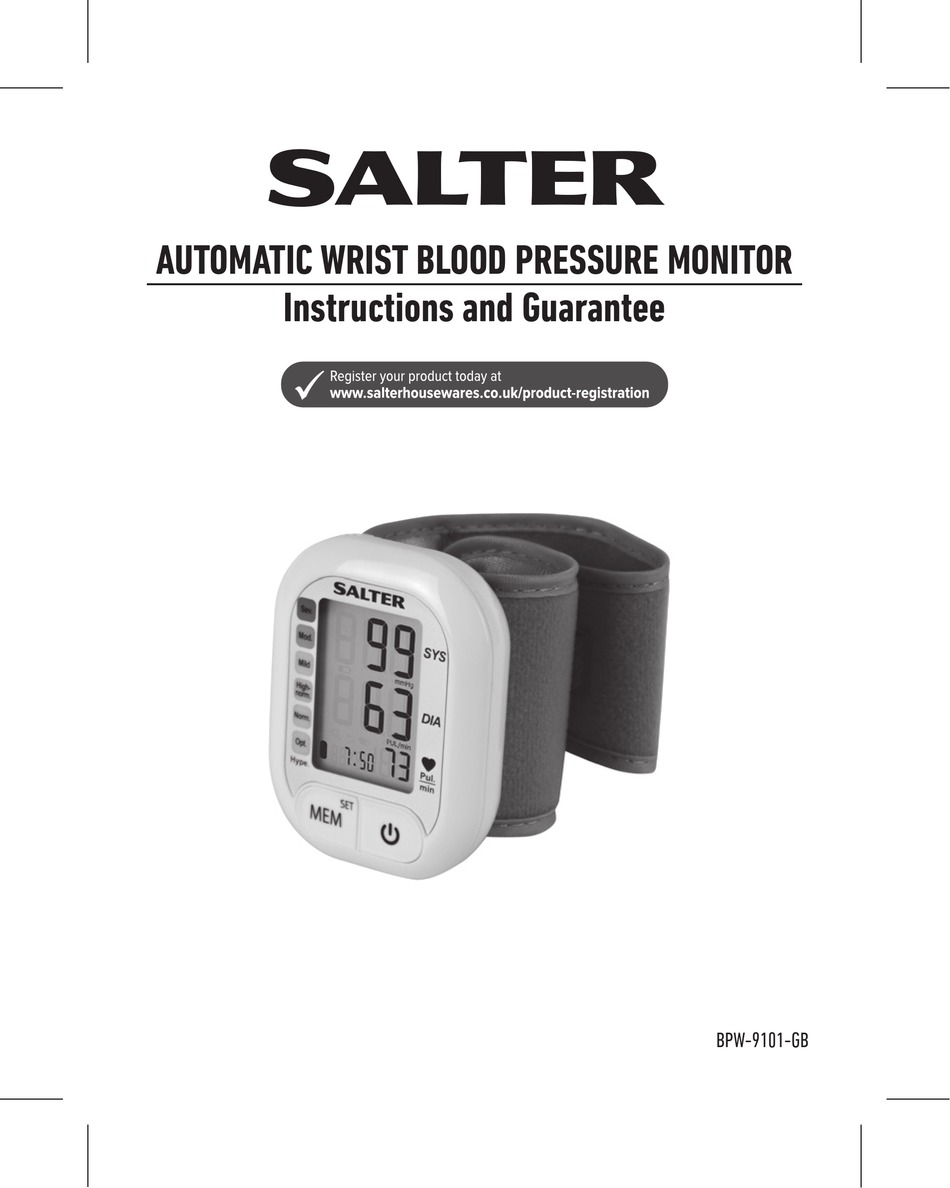

- Page 1 AUTOMATIC WRIST BLOOD PRESSURE MONITOR Instructions and Guarantee BPW-9101-GB...
-
Page 2: General Description
The design provides you with two years of reliable service. Readings taken by the BPW-9101-GB are equivalent to those obtained by a trained observer using the cuff and stethoscope auscultation method. - Page 3 Symbol for “THE OPERATION GUIDE Symbol for “TYPE BF APPLIED PARTS” MUST BE READ” Symbol for “COMPLIES WITH Symbol for “ENVIRONMENT PROTECTION 0123 MDD 93/42/EEC REQUIREMENTS” - Wast electrical products should not be disposed of with household waste. Symbol for “MANUFACTURER” Please follow local guidelines.
- Page 4 application of the cuff and its pressurization on any to a lack of blood. wrist where intravascular access or therapy, or an * When not in use, store the device in a dry room arterio-venous (A-V) shunt, is present; inflating the and protect it against extreme moisture, heat, lint, cuff on the side of a mastectomy.
- Page 5 * If the cuff pressure reaches 40 kPa (300 mmHg), sales/service centers. the unit will automatically deflate. Should the cuff * Please report to Salter if any unexpected not deflate when pressures reaches 40 kPa (300 operation or events occur.
-
Page 6: Lcd Display Signal
LCD DISPLAY SIGNAL... -
Page 7: Monitor Components
MONITOR COMPONENTS list of 1) Automatic Wrist Blood Pressure Monitor 2) 2 x AAA batteries 3) User manual... -
Page 8: Installing And Replacing The Batteries
INSTALLING AND REPLACING THE BATTERIES • Slide off the battery cover. • Install the batteries by matching the correct polarity, as shown below. Always use the correct battery type (2 x AAA batteries). • Replace the battery cover. CAUTION Replace the batteries under following circumstances: •... -
Page 9: Setting Date, Time And Measurement Unit
5. Repeat steps 2 and 3 to confirm [HOUR] and [MINUTE]. SETTING DATE, TIME AND MEASUREMENT UNIT It is important to set the clock before using your blood pressure monitor, so that a time stamp can be assigned to each record that is stored in the memory. (The setting range of the year: 2018—2058 time format: 24H) 1. - Page 10 • Rest for 5 minutes before measuring. MEASUREMENT • Wait at least 3 minutes between Tie the Cuff measurements. This allows your blood 1. Remove all accessories (watch, circulation to recover. bracelet,etc) from your wrist. If your • Take the measurement in a silent room. physician has diagnosed you with poor •...
-
Page 11: Start The Measurement
Start the Measurement 1. When the monitor is off, press “START/STOP” button to turn on the monitor, and it will finish the whole measurement. LCD display Adjust the zero Inflating and measuring Display and save the results 2. Press “START/STOP’’ button to power off, otherwise it will turn off within 1 minute. -
Page 12: Data Management
DATA MANAGEMENT Recall the measurements 1. When the monitor is off, press “MEM” button to show the average value of the latest three measurement records. If the records are less than 3 groups, it will display the latest record instead. 2. -
Page 13: Delete The Records
DATA MANAGEMENT Delete the Records If you did not get the correct measurement, you can delete all results by following steps below. 1. In the memory mode, hold pressing “MEM” button for 3 seconds, the flash display “dEL All” will show. 2. -
Page 14: Information For User
INFORMATION FOR USER Tips for Measurement Measurements may be inaccurate if taken in the following circumstances. -
Page 15: Maintenance
INFORMATION FOR USER Maintenance In order to get the best performance, please follow the instructions below. -
Page 16: About Blood Pressure
ABOUT BLOOD PRESSURE What are systolic pressure and diastolic pressure? Systolic Diastolic When ventricles contract and pump blood out of the heart, the blood entering blood discharging blood pressure reaches its maximum value in the cycle, which vein artery is called systolic pressure. When the ventricles relax, the blood pressure reaches its minimum value in the cycle, which is called press relax... -
Page 17: Why Do I Get A Different Blood Pressure At Home Compared To The Hospital
Why does my blood pressure fluctuate throughout the day? 1. Individual blood pressure varies multiple times everyday. It is also affected by the way you tie your cuff and your measurement position, so please take the measurement under the same conditions. 2. -
Page 18: Troubleshooting
TROUBLESHOOTING This section includes a list of error messages and frequently asked questions for problems you may encounter with your blood pressure monitor. If the products is not operating as you think it should, check here before arranging for servicing. PROBLEM SYMPTOM CHECK THIS... -
Page 19: Specifications
SPECIFICATIONS Power supply Battery powered mode: 2*AAA batteries (3V DC) Display mode Digital LCD V.A.32mm×45mm Measurement mode Oscillographic testing mode Rated cuff pressure: 0mmHg~299mmHg(0kPa ~ 39.9kPa) Measurement pressure: Measurement range SYS: 60mmHg~230mmHg (8.0kPa~30.7kPa) DIA: 40mmHg~130mmHg (5.3kPa~17.3kPa) Pulse value: (40-199)beat/minute Pressure: Accuracy 5°C-40°C within±3mmHg(0.4kPa) Pulse value:±5%... -
Page 20: Contact Information
CONTACT INFORMATION Manufactured by COMPLIED STANDARDS LIST Risk management EN ISO 14971:2012 / ISO 14971:2007 Medical devices - Application of risk management to medical devices EN ISO 15223-1:2016 / ISO 15223-1:2016 Medical devices. Symbols to be used with medical device labels, Labeling labelling and information to be supplied. -
Page 21: Emc Guidance
EMC GUIDANCE 1. This product needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided, and this unit can be affected by portable and mobile RF communications equipment. 2.* Do not use a mobile phone or other devices that emit electromagnetic fields, near the unit. This may result in incorrect operation of the unit. - Page 22 Table 2 Guidance and manufacture’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. Electromagnetic Immunity test IEC 60601 test level Compliance level...
- Page 23 Table 3 Guidance and manufacturer’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. IEC 60601 Compliance Electromagnetic Immunity test...
- Page 24 Table 4 Recommended separation distances between portable and mobile RF communications equipment and the device. The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmittters) and the device as recommended below, according to the maximum output power of the communications equipment.
- Page 25 Table 5...
- Page 26 Table 5 (cont)
-
Page 27: Year Guarantee
(as proof of purchase). Upon receipt, FKA Brands Ltd will repair or replace, as appropriate, your product and return it to you, post-paid. Guarantee is solely through Salter Service Centre. Service of this product by anyone other than the Salter Service Centre voids the guarantee. - Page 28 Guangdong Transtek Medical Electronics Co., Ltd. Zone A, No 105, Dongli Road, Torch Development District, Zhongshan, 528437, Guangdong, China MDSS - Medical Device Safety Service GmbH Schiffgraben 41, 30175 Hannover, Germany Distributed by FKA Brands Ltd, Somerhill Business Park, Tonbridge, Kent TN11 0GP, UK IB-BPW9101GB-0718-02 Customer Support: +44(0) 1732 360783 I Support@salterhousewares.co.uk Version: 2.0...
