IS31FL3216 16 Channels LED Driver Evaluation Board Guide
0
0
Integrated Silicon Solution, Inc. – www.issi.com
R1.0, 07/12/2012
2
1
2

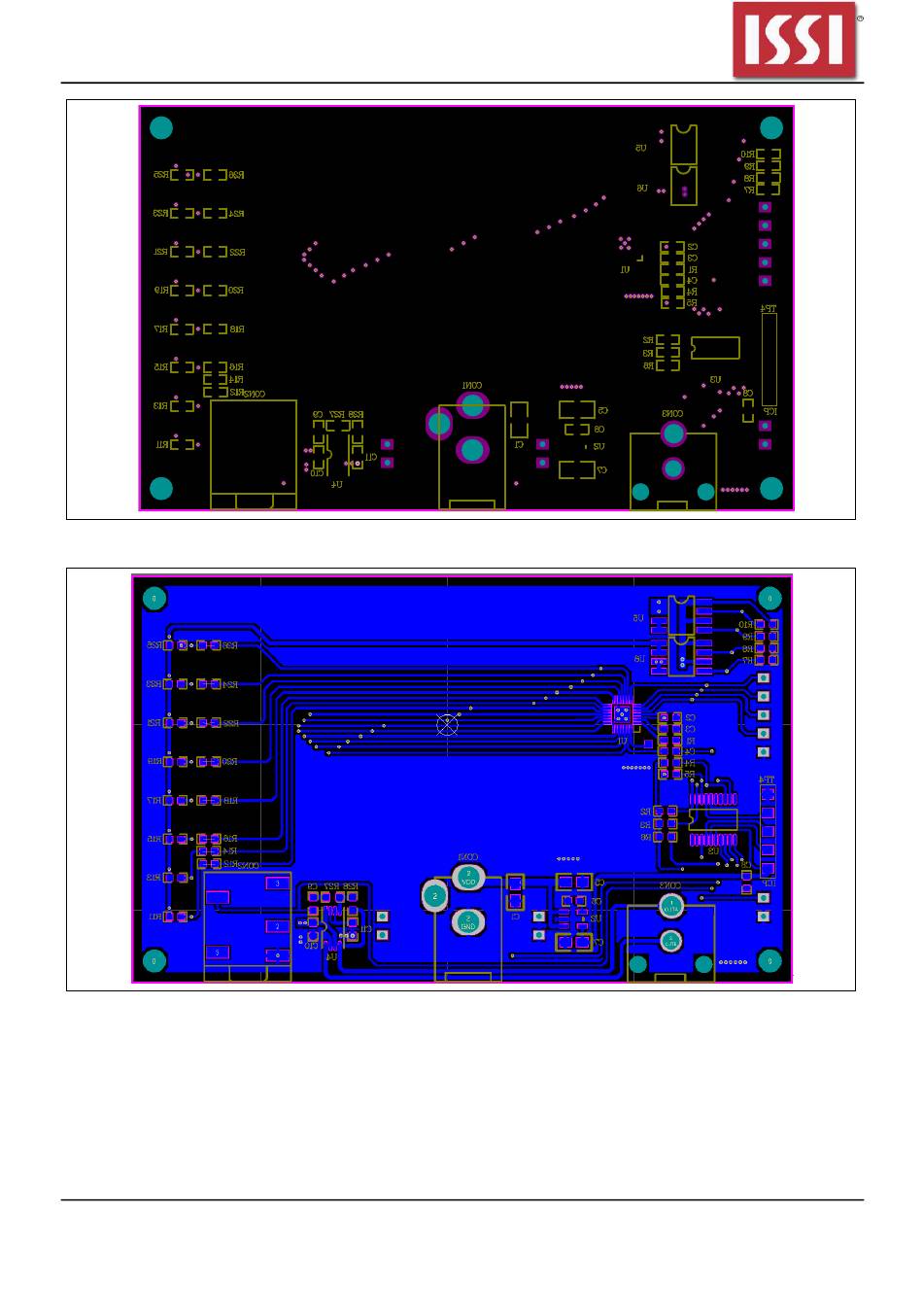

Figure 5: Board Component Placement Guide -Bottom Layer
Figure 6: Board PCB Layout-Bottom Layer
