HVAC (Heating, Ventilation, Air Conditioning)

1.
Press the HVAC icon.

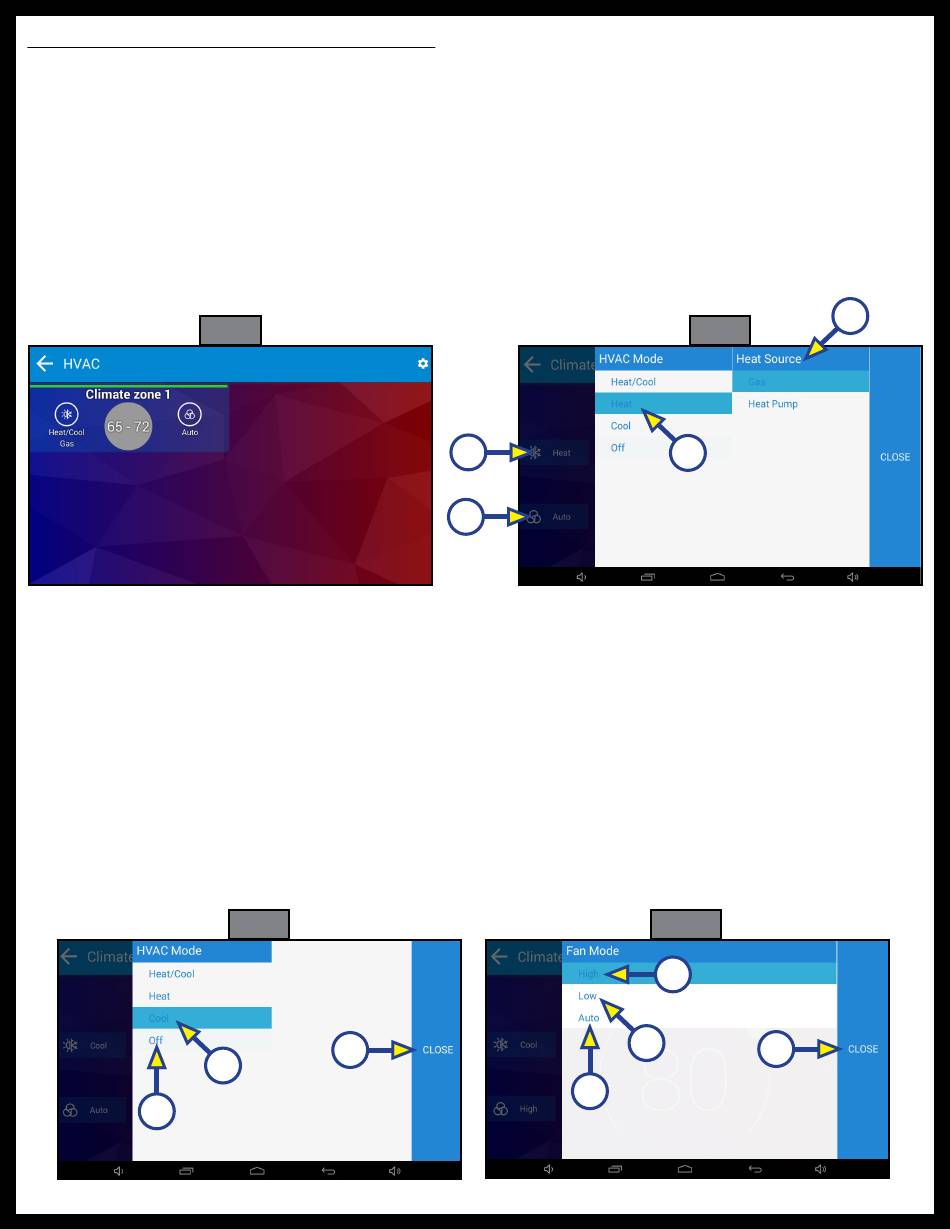

2. Press the Climate zone displayed (Fig. 7).
3.
There are two boxes on the left side of the screen (Fig. 8). The top box (Fig. 8A) controls the heating/
cooling mode. The bottom box (Fig. 8B) controls the fan. Press the top box to choose the HVAC mode.
A large box will populate with available options for that climate zone (Fig. 8).
A. Heat/Cool: This mode provides High and Low set points. The HVAC system will operate to keep the
temperature between these two set points. Refer to step 5C.
B. Heat (Fig. 8C): This mode has a single set point and the furnace or heat pump will operate to keep
the temperature at that set point.
NOTE: If equipped with a heat pump, users will be prompted to choose a heat source (Fig. 8D). The options
are Gas or Heat Pump.
C. Cool (Fig. 9A): This mode has a single set point and the air conditioning will operate to maintain
the temperature at this point.
D. Off (Fig. 9B): Tapping this button turns off the HVAC system.
E.
Once the desired mode is selected, press the CLOSE button (Fig. 9C) on the right.
4.
Press the bottom of the two boxes on the left (Fig. 8B) to choose the Fan mode. A large box will
populate with available fan settings (Fig. 10).
A. High (Fig. 10A): The fan will run continuously on high until another setting is chosen.
B. Low (Fig. 10B): The fan will run continuously on low until another setting is chosen.
C. Auto (Fig. 10C): The fan will run when the HVAC system calls for heating or cooling, then shuts off
after the set point is reached.
NOTE: The fan will continue to run for two minutes after the set point has been reached in order to cool the
compressor or furnace.
D. Once the desired fan setting has been selected, press the CLOSE button (Fig. 10D) on the right.
B
Rev: 03.06.19
Fig. 7
Fig. 9
C
A
A
B
C
Page 5
Fig. 8
C
Fig. 10
A
B
D
D
CCD-0001540
