Configuring the Remote (260782)

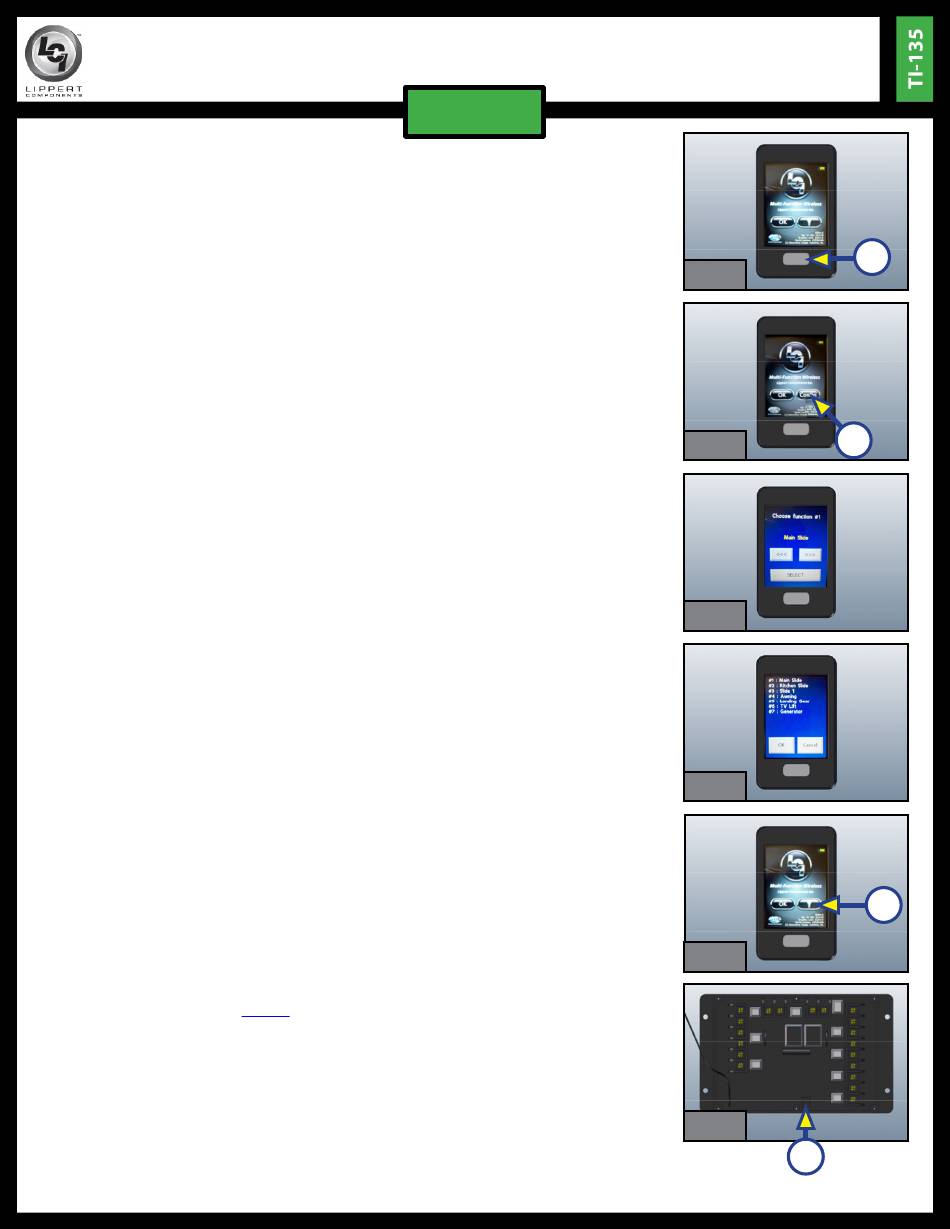

1. Turn the remote on by pressing and releasing the large silver button
at the bottom of the unit (Fig. 1A). Pressing this same button five
times accesses the Configuration menu after the unit has been
configured previously.
2.
Press the "Config" button on the touch screen to begin configuring
the remote (Fig. 2A). Using the arrow buttons at the bottom of the
screen, navigate to the specific items the remote will control (Fig.
3). When the name of the item appears in the middle of the screen,
press the large "Select" button.
3.
Assign an item or "None" to each of the seven function spaces

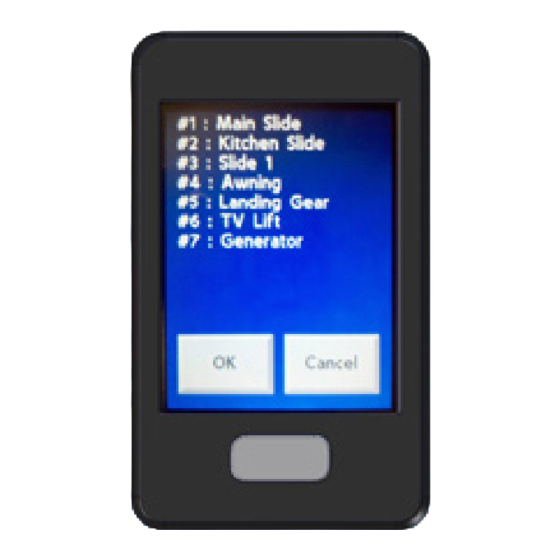

available. A Confirmation screen will appear on the screen (Fig. 4).
Press "OK" to save the configuration or "Cancel" to edit the functions.
Syncing the Remote to the Receiver
1.
To begin syncing the remote to the receiver, both the receiver
and the remote must have power (12V DC for the receiver and the
battery in the remote must have a charge).
2.
Push and hold the black button on the receiver (Fig. 6A). While the
black button is depressed, push and release the "Light" button on
the remote (Fig. 5A).
NOTE: If close enough to the receiver, an audible "click" can be heard
verifying the receiver is programmed to the remote.
3. Release the black button on the receiver.
NOTE: To sync a second remote to the receiver, repeat Steps 2 and 3.
Only sync two remotes per receiver.
For wiring diagram, see TI-091.
Rev: 01.26.2017
LINC WIRELESS TOUCH REMOTE - IDS
ELECTRONICS
Page 1
A
Fig. 1
A
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
A
A
TI-135
