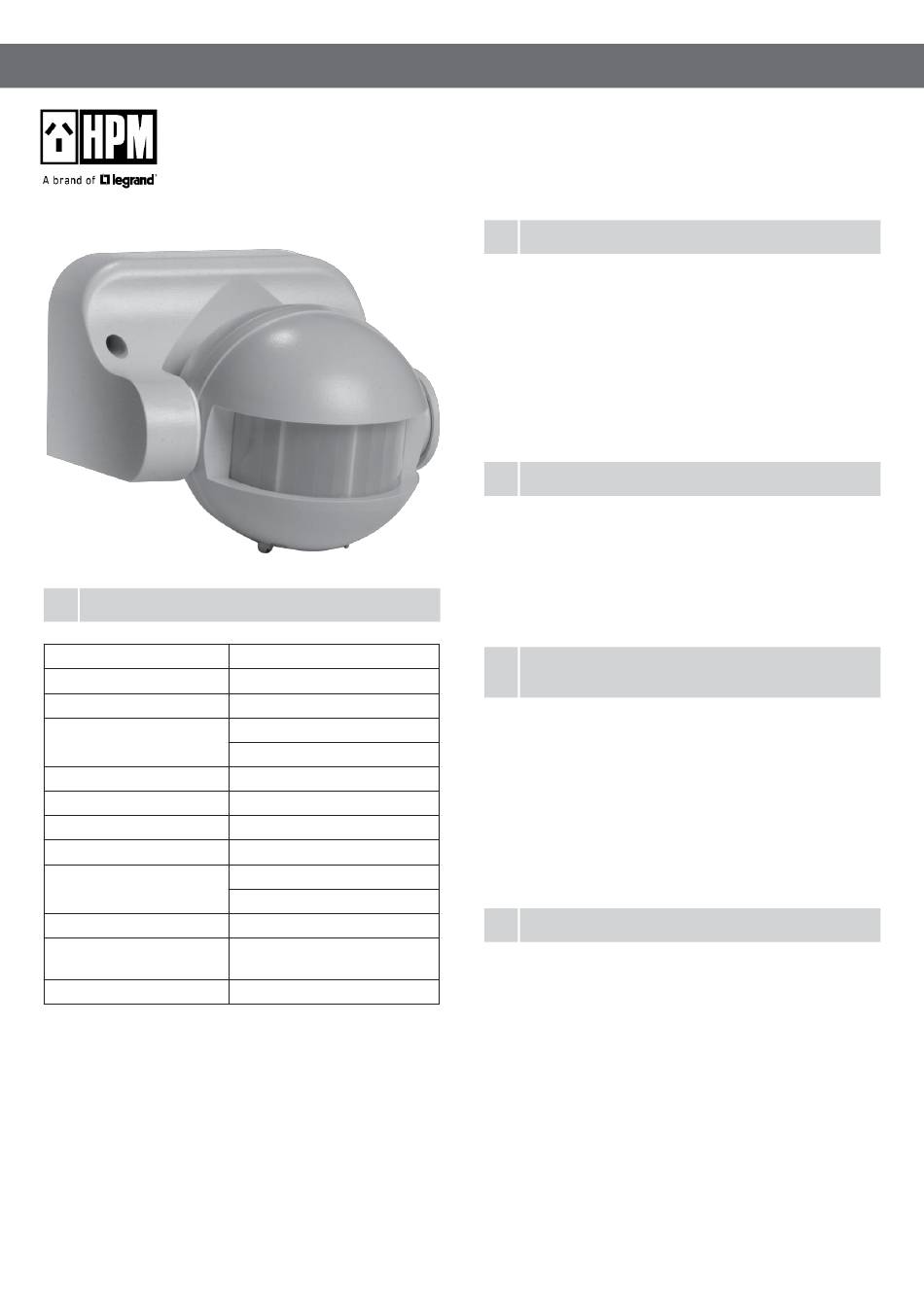

Specifications
Detection Method:
Voltage Supply:
Standby power:
Max. Lighting Load:
Temperature:
Detection Range:
Detection Angle:
Adjustable Angle:
Auto Stop Time:
Lux Level:
Built-in manual
override function:
Weather protected:
Passive infrared
230-240V a.c. 50Hz
0.7W
1200W Incandescent
450VA Fluorescent & CFL
-10° C to 45° C
12m at 24° C
180°
180° vertical
8 seconds ± 3 seconds (min.)
7 minutes ± 2 minutes (max.)
From 3 lux to daylight
Cat 630/3 only
IP44
Cat. 630/3, 630/3A and 630/3ABL
2
Introduction

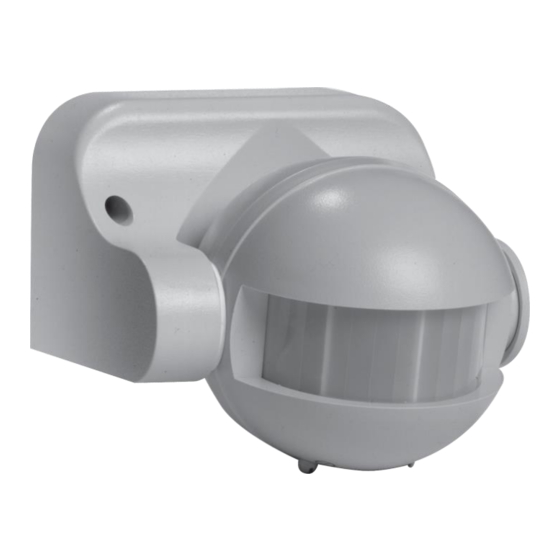

The Light Patrol Security Sensor incorporates a
passive infrared detector that reacts instantly to body
heat and movement. When it senses a person (at a
distance of up to 12 metres) it acts as a switch to turn
the lights on to which it is connected. When body heat
and movement are no longer detected, the lights
switch off after a period of time (adjustable). A built-
in photocell deactivates the motion sensor during
daylight hours if required.
3
Features
The Light Patrol provides convenience, security and safety.
Convenience for family and friends, lighting their way and
making keys easier to locate. Security from intruders who
are unexpectedly blasted by light, which usually has the
effect of scaring them off. Safety by avoiding accidents
caused by unseen obstacles.
Wheninstallingthe securitysensorpay
4
specialattention tothesepoints
1. Do not install when it is raining.
2. Be sure to switch off power source before installing.
3. Make sure the power wiring comes from a circuit
protected by a suitable fuse or circuit breaker.
4. For outdoor installation, a location under eaves is
preferable.
5. This unit must be installed by a licensed electrician
according to local codes and regulations.
5
Sensorlocationsto be avoided
• Directed at swimming pools and ponds. The movement
and reflections are likely to create nuisance switching.
• Avoid, if possible, areas which are accessible to animals.
• A position which is subject to drastic changes in
temperature.
• In proximity of air conditioner, dryer or heater.
• In direct sunlight.
Light Patrol
Instruction Manual
