8
Troubleshooting
PROBLEM
SUGGESTED SOLUTION
The Door Chime is intermittent
A door chime with the same frequency may be nearby. Change the
when activated or sounds when
channel on your HPM Door Chime (Refer Channel Selection section).
not activated at all.
The Door Chime has stopped
Your Bell Press Unit battery may be flat. If the red indicator light
sounding.
on the Bell Press Unit no longer illuminates when the Bell Press is
pressed, replace the Bell Press battery. (Refer Installation section -
Bell Press Unit).
If you have checked your Bell
Check the distance between the Chime Unit and the Bell Press Unit.
Press battery and your Door
Relocate closer, if they are too far away from each other. Relocate
Chime is still not sounding.
further away, if they are within 1m of each other.
Check the position of your Chime Unit and Bell Press. Relocate if
they are close to a metal structure as it may be interfering with the
transmission.
Ensure Bell Press Unit and Chime Unit have the same Channel
selected. (Refer Channel Selection section).
The Volume Control may be in the OFF position. Move the Volume
Control to either LOW or HIGH (D641/PIFL only).
9
Maintenance
Keep the Chime Unit dry. Liquids can damage the electronic circuits inside. To clean, use a damp
cloth and mild detergent. Do not use solvents. Do not leave exhausted batteries in the Bell Press Unit
or the Chime Unit. Keep the Chime Unit away from dust and dirt, which can prematurely wear parts.
Modifying or tampering your HPM Door Chime's internal components can cause a malfunction and will
invalidate its Warranty.
Warranty
HPM Legrand warrants this product for a period of 3 years
from the date of purchase.
These goods come with guarantees that cannot be
excluded under the Australian and New Zealand Consumer
Laws. You are entitled to a replacement or a refund
for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired if the goods fail to be
of acceptable quality and the failure does not amount to a
major failure.
See the Warranty card enclosed with this product for
further details.
Customer Service
For all Customer Service and Technical Support
please call Monday to Friday during business hours.
HPM Legrand Australia
1300 369 777
www.hpm.com.au
HPM Legrand New Zealand
0800 476 009
www.hpm.co.nz
ABN: 31 000 102 661
Please read all instructions carefully before installation and use.
Specifications
Bell press supply voltage: 12V d.c
Transmission freq:
Range:
Sound level:
Battery requirement:
Door chime receiver:
Bell press transmitter:
This series of wireless door chimes are not compatible
with units from HPM's Cat D642 and D641 series or with
D641/B, D641/BLR or D641/BLRCC.
Box contents
• Bell Press
• Door Chime receiver
• 1 x 12V battery
• Mounting screws and wall plugs
• Double-sided tape
1
Features
• Operating range up to 70m (D641/PIFL
and D641/PILR)
• 2 melodies for selection
• Weather resistant bell press
• Flashing Light (D641/PIFL only)

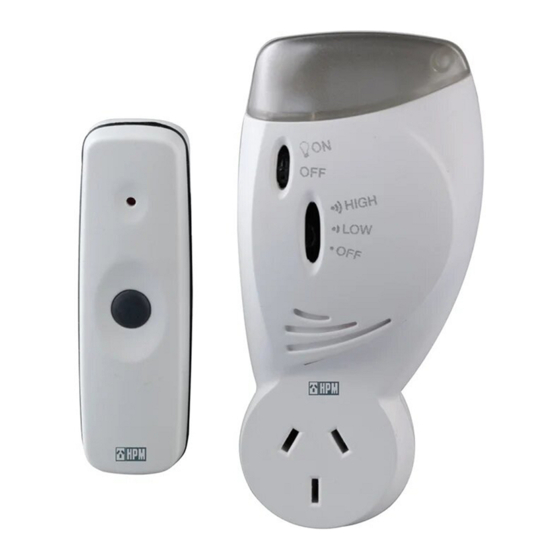

Wireless Door Chime
Plug-in
Cat. D641/PI, D641/PILR, D641/PIFL
Instruction Manual
433.92MHz
Up to 35m (D641/PI)
Up to 70m (D641/PIFL and D641/PILR)
70 dB
Mains Power
1 x 12V A23 battery (supplied)
2
Typical Applications
• Visitor alert
• Panic button
• Pager
Advertisement
Table of Contents
Related Manuals for HPM D641/PILR
Summary of Contents for HPM D641/PILR
- Page 1 Wireless Door Chime Troubleshooting Plug-in PROBLEM SUGGESTED SOLUTION Cat. D641/PI, D641/PILR, D641/PIFL The Door Chime is intermittent A door chime with the same frequency may be nearby. Change the Instruction Manual when activated or sounds when channel on your HPM Door Chime (Refer Channel Selection section). not activated at all. The Door Chime has stopped Your Bell Press Unit battery may be flat. If the red indicator light sounding. on the Bell Press Unit no longer illuminates when the Bell Press is pressed, replace the Bell Press battery. (Refer Installation section - Bell Press Unit). Please read all instructions carefully before installation and use.
- Page 2 Channel Selection Switches be in the same position on both units for them to recognise each fixing the Bell Press Unit in place, test location of both units to ensure satisfactory operation. other. In the event that your Door Chime Unit Plug-In Chime Unit sounds without your No batteries required, simply plug the Plug-In Chime Unit (Fig. 1) in to any standard 240V power point Bell Press Unit being and switch the power point ON. The Plug-In Chime Unit can be moved around to wherever a power used it is likely that point is located. The offset design allows continued use of the adjacent socket of a double power point. another unit operating The Piggy Back Socket (Fig. 1 A) (available on HPM Cat D641 /PILR and D641 /PIFL) enables the power nearby, using the same outlet to still be used when the Plug-In Chime Unit is plugged in - other appliances may be plugged frequency channel, directly into the Plug-In Chime Unit. The Plug-In Chime Unit is not weatherproof. is the cause. You Bell Press Unit will need to select a Step 1: Remove the security screw at the bottom of the Bell Press Unit. - (Fig. 2 L) different channel: Step 2: Remove the Bell Press (Fig. 2 G) from the Mounting Bracket (Fig. 2 J) . Open the Battery Step 1: O n the Bell Press Unit Compartment cover on the back of the Bell Press. Insert 12V battery provided into the Battery...
