This product must be installed by a licensed electrician.
1.
Specifications
Detection method
Terminal wiring size
Detection/View angle
Detection range (ceiling height 2.5m)
Lux adjustment range
Time adjustment range
Switching function
Ceiling cut-out size
Depth into ceiling
Extra low voltage halogen
Compact Fluorescent Lamp (CFL)
Fig. 1
2.5m
Supply voltage
Standby power
IP rating
Fascia size
Weight
Incandescent
Fluorescent
LED
4m
2m 1m
0
1m 2m

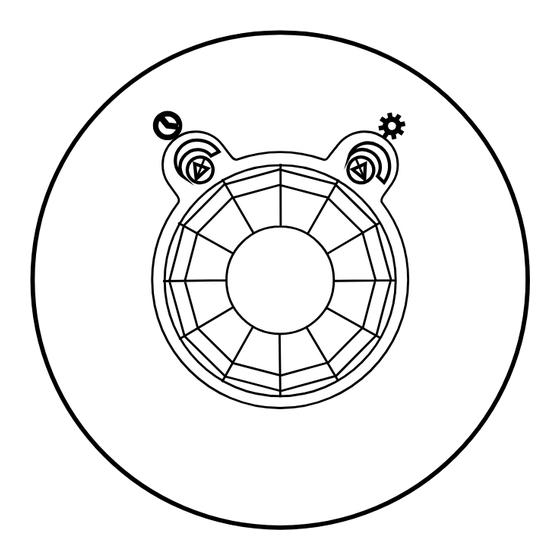

360° PIR Movement Sensor
Maximum Lighting Load
4m
Cat No. 630R02WE
Instruction Manual
Passive Infrared (PIR)
230-240V a.c. 50Hz
1x2.5mm
to 2x1.5mm
2
2
0.6W
360°
Ø8m
10lux – 1275lux
10sec – 10min (approximately)
Auto Mode only
IP41
Ø65mm
Ø78mm
39mm
70g
1000W (4.3A)
360W (2.1A)
500VA (2.1A)
250VA (1.1A)
250W (1.1A)
Ø8m
Advertisement
Related Manuals for HPM 630R02WE
Summary of Contents for HPM 630R02WE
-
Page 1: Specifications

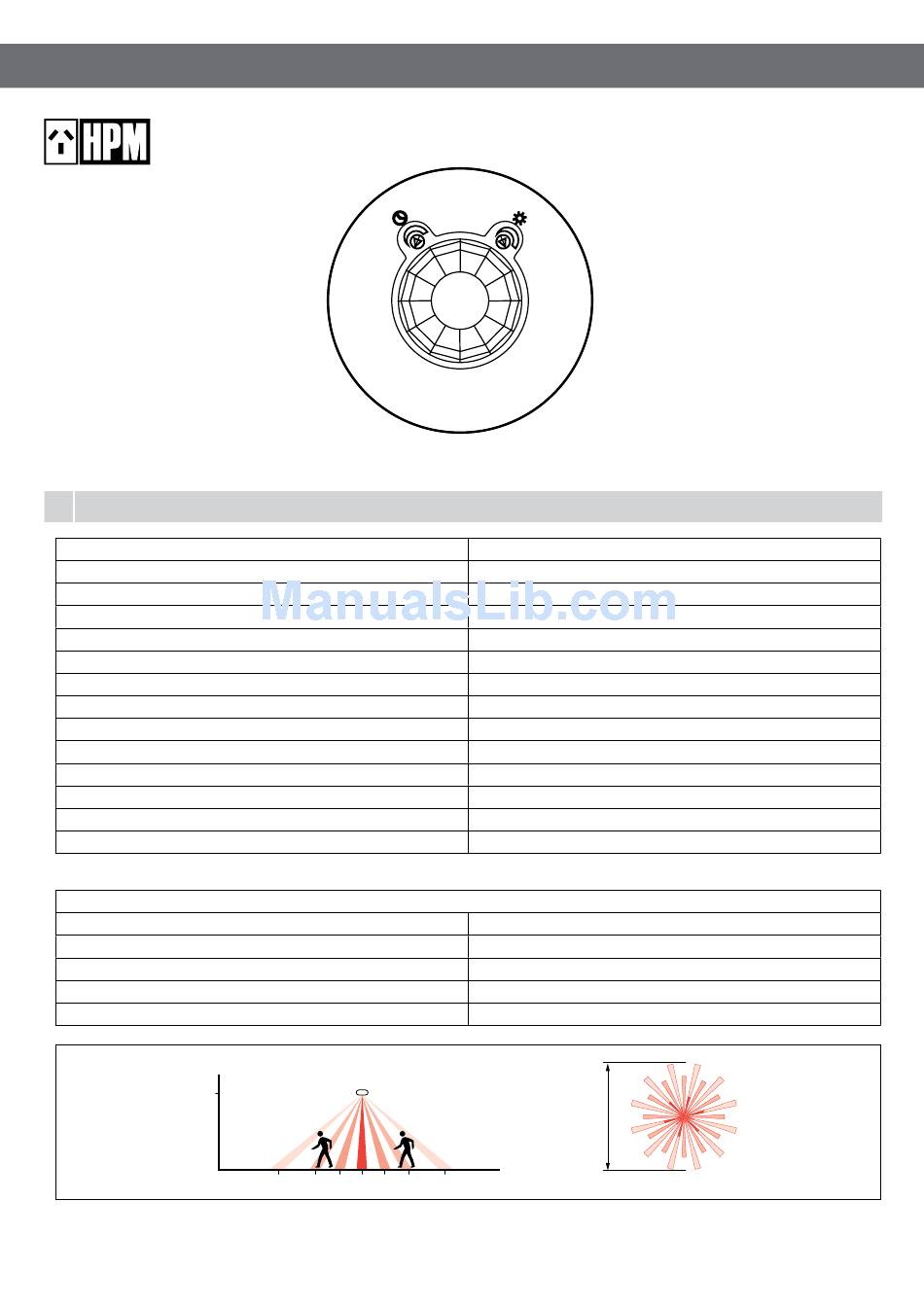

360° PIR Movement Sensor Cat No. 630R02WE Instruction Manual This product must be installed by a licensed electrician. Specifications Detection method Passive Infrared (PIR) Supply voltage 230-240V a.c. 50Hz Terminal wiring size 1x2.5mm to 2x1.5mm Standby power 0.6W Detection/View angle 360°... - Page 2 Sensor locations to be avoided 1. Near water features such as swimming pools or ponds. The movement and reflections are likely to create nuisance switching. 2. Near heat sources such as air conditioners, dryers, heaters or barbecues. 3. Locations which are subject to drastic changes in temperature. 4.
- Page 3 Setting the controls With the Sensor fully installed by an electrician and power on Fig. 4 1. Turn the TIME knob to minimum and turn the LUX knob to light as shown in Fig. 4. 2. Turn the wall switch on. The light/s should turn on immediately and will remain on while the sensor warms up, for approximately 30 seconds.
-
Page 4: Troubleshooting
2. The IP rating of this product is only valid when installed on a flat and non-porous surface. Additional sealing may be required for irregular surfaces. 3. This product must be used with the loads specified only. Other load types should be used only when written confirmation is given by HPM Legrand.
