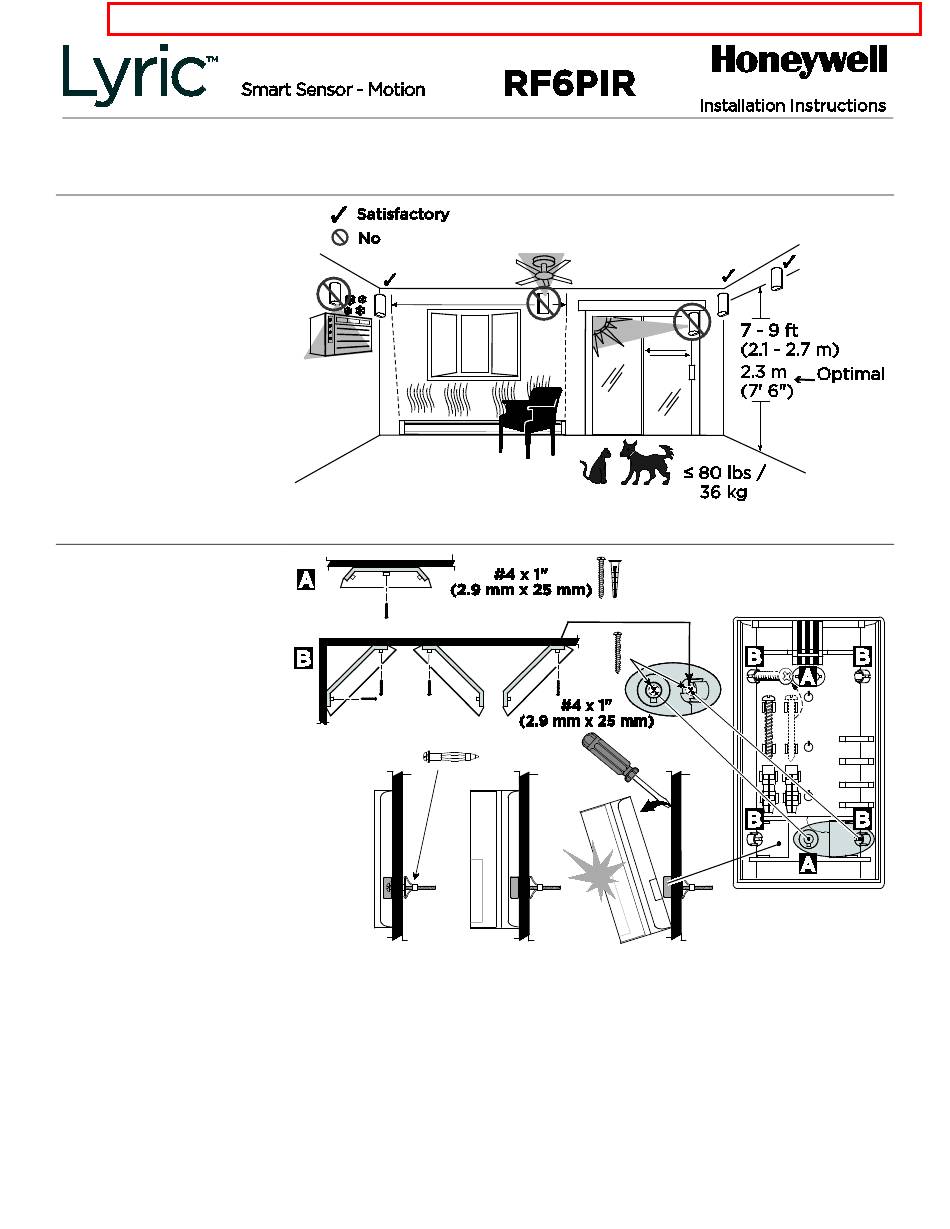

This wireless passive infrared motion sensor is intended for use with Honeywell controls that support
SiX™ series devices.
Mounting Location
• The optimal range is
obtained at a mounting
height of 7' 6" (2.3 m).
• Allow a clear line-of-sight
to all areas to protect.
• Do not directly face
windows.
• Avoid close proximity to
moving machinery,
fluorescent lights, and
heating/cooling sources.
For use in applications
with pets up to 80
pounds (36 kilograms).

Mounting Options

The RF6PIR can be
mounted on the wall or in
corners:
• [A] = Wall mounting
holes.
• [B] = Corner mounting
holes.
• The rear tamper plate
MUST be mounted to a
stud, solid wood, or with
a robust wall anchor.
• UL requirements:
TBD
Note: before mounting the
RF6PIR permanently,
conduct Go/No Go tests
(see control's instructions)
to verify adequate signal
strength and adjust the
device location and
orientation as necessary.
