ENERGY SISTEM Linnker 7000 User Manual

Bluetooth stereo speakers
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

1.
A/C adaptor and 3 AAA batteries........................................................1
3. Function Keys......................................................................................1
THREE possible User Scenarios...............................................................3
I.
profile) Mobile Phone / PDA / MP3 Guide............................................3
1.Pairing.................................................................................................3
2.Listening to music.............................................................................4
1.Pairing...............................................................................................5
2.Listening to music..............................................................................5
1.Llistening to music.............................................................................6
Accessories Table.....................................................................................6
FCC Interference Statement......................................................................7

A/C adaptor and 3 AAA batteries

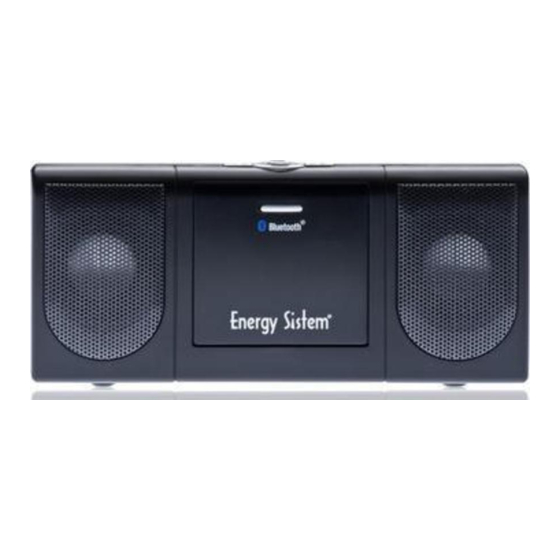

Thank you for buying the new Linnker 7000 Bluetooth stereo speakers and,
or the Bluetooth Stereo Audio Adaptor. You can use the A/C power adaptor
to power up the Linnker 7000 directly or install 3 AAA dry batteries into the
Linnker 7000 to obtain the power.
Turning on / Turning off the Linnker 7000
To turn on the speaker, please switch the power ON/OFF switch (Key 2) to
the "I" position. To turn it off, please switch the power switch to the "O"
position.

Function Keys

Index
1. Battery cover(Insert 3 AAA batteries).
2. Power ON/OFF switch.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Linnker 7000 and is the answer not in the manual?

Questions and answers

Related Manuals for ENERGY SISTEM Linnker 7000

Summary of Contents for ENERGY SISTEM Linnker 7000

  • Page 1 Thank you for buying the new Linnker 7000 Bluetooth stereo speakers and, or the Bluetooth Stereo Audio Adaptor. You can use the A/C power adaptor to power up the Linnker 7000 directly or install 3 AAA dry batteries into the Linnker 7000 to obtain the power.
  • Page 2 AVRCP Profiles). 8. Bluetooth ON/OFF/Pairing/Pause switch. a) When Linnker 7000 is powered on, press and hold (about 2 seconds) until Bluetooth LED flashes Green to turn Bluetooth ON. b) When Linnker 7000 is powered on, press and hold (about 4 seconds) until Bluetooth LED flashes Green and Red alternatively to enter into pairing mode.
  • Page 3 Bluetooth LED flashes Green and Red alternatively – Bluetooth enters into Pairing mode c) Bluetooth LED is red -- Bluetooth will be OFF 11. Power LED is Blue -- Linnker 7000 is Power ON. ! " # " $ % When you purchase a Standalone pack with Linnker 7000 only, please follow this Guide.
  • Page 4 Standby Mode and ready to receive audio signals from the Mobile Phone / PDA / MP3. If pairing does not occur as expected, turn the Linnker 7000 and the audio device off. Wait for 10 seconds and repeat the pairing process from the beginning (Fig.4).
  • Page 5 1. Pairing a. While the Speaker is powered off, switch the power ON/OFF switch (Key 2) to the “I” position to turn it on (Fig.1). The Power LED (Fig.3) will be blue. Press and hold Bluetooth ON/OFF/Pairing/Pause switch (Fig.2) for 4 seconds, the Bluetooth LED will flash red and green alternatively, which indicates the Speaker in Pairing Mode.

  • Page 6: Accessories Table

    Plug one end of the audio cable to the “Audio input socket” (socket 4, Fig.1) of the Linnker 7000 and the other end to the 3.5 mm socket of any audio source such as iPod, MP3, CD player, Notebook PC or other audio devices.
  • Page 7 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 8 RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Remarks: Specification of A/C power adaptor for Linnker 7000 DC Voltage input: 5V, 500mA DC plug: (1.35 X 3.5 X 11) mm...
