Object
Group ID
Frame Type
Protocol Value
Delete

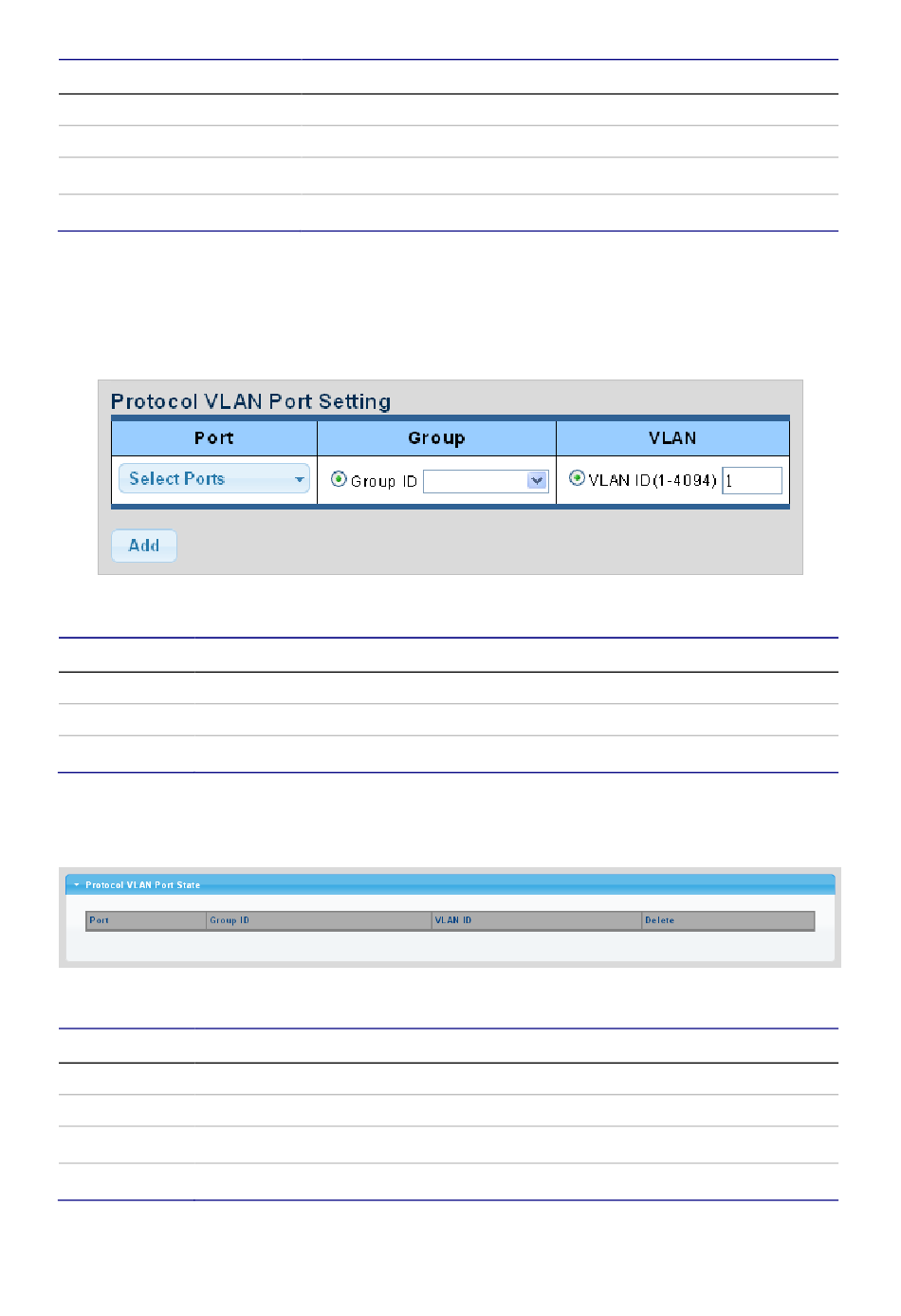

Protocol VLAN port setting
This page permits mapping an already configured Group Name to a VLAN/port for the
switch.
The page includes the following fields:
Object Description
Port Select a port from this drop-down menu to assign a protocol VLAN port
Group Select a group ID from this drop-down menu to protocol VLAN group
VLAN VLAN ID assigned to the Special Protocol VLAN Group
Buttons
• Click Add to add a protocol VLAN port entry.
The page includes the following fields:
Object Description
Port Displays the current port
Group ID Displays the current group ID
VLAN ID Displays the current VLAN ID
Delete Click Delete to delete the group ID entry
NS3562-8P-2S User Manual
Description
Displays the current group ID
Display the current frame type
Display the current protocol value
Click Delete to delete the group ID entry
