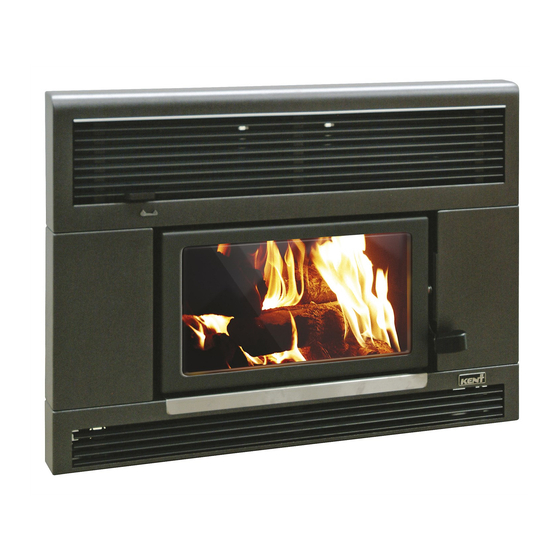

KENT Rata Installation & Operating Instructions Manual

Inbuilt & insert wood fires
Hide thumbs Also See for Rata:

Advertisement

Quick Links

INSTALLATION & OPERATING
Inbuilt & Insert Wood Fires
1.
This fire must be installed by a trained wood fire installer, ideally registered with the
New Zealand Home Heating Association. Do not allow any makeshift or compromising
installation methods as this could result in a house fire. Built in Kent wood fires must be
installed according to these instructions.
2.
A Building Consent from the Local Authority must be obtained before installing this wood
fire, and we suggest that the Insurance Company covering building insurance be advised
of the installation.
3.
Kent built in wood fires, when installed according to these instructions, comply with the
provisions of AS/NZS 2918-2001 "Installation of Domestic Solid Fuel Burning Appliances,
including appendix F".
4.
The clearances given in these instructions are necessary to prevent overheating of nearby
combustibles and drying out of the house structure. They may not be reduced without
authorisation.
5.
Important: Read all instructions carefully before starting installation. Failure to follow these
instructions could result in a fire hazard, and may void warranty.
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Important: the installer or seller must leave these instructions with the purchaser
INSTRUCTIONS
CONTENTS
General Information........................................1
Specifications...............................................3
Installation..........................................3-7
Operation...............................................9-11
Maintenance........................................12
Replacement Parts..................................13-14
Warranty.................................................15

GENERAL INFORMATION

Advertisement

loading

Related Manuals for KENT Rata

Summary of Contents for KENT Rata

  • Page 1: Table Of Contents

    This fire must be installed by a trained wood fire installer, ideally registered with the New Zealand Home Heating Association. Do not allow any makeshift or compromising installation methods as this could result in a house fire. Built in Kent wood fires must be installed according to these instructions.

  • Page 3: Specifications

    The wood fire must be restrained against movement in the event of an earthquake. Ensure the Kent wood fire is restrained by fixing the wood fire to the floor protector with two bolts of 6mm minimum diameter through the holes provided in the outer box base. For solid concrete floors, use 8mm DYNABOLTS or similar, with a minimum depth of engagement into the floor of 50mm.
  • Page 4 Insert installation Inbuilt Installation (Masonry Cavity) (Timber Cavity) Side Elevation Plan Elevation FIG. 1 Minimum Installation Clearances (mm) Model Model No. Rata KWF295-6938 2000 1200 Logfire II KWF295-6937 2000 1200 TABLE 2 Floor protector from front of fascia. INBUILT FLUE INSTALLATION Once zero clearance box and 600mm flue transition is in desired place.
  • Page 5 additional 200mm sections of flue as necessary to ensure minimum 1m flue height above roof is achieved (Refer Fig.2 for more detail). Ensure the 150mm flue pipe extends at least 180mm above the 200mm flue casing at the top. Trim flues if required. Join together as many 250mm outer flue casings as manageable with swaged ends up, fix lengths together with 3 rivets or self-tapping screws and slide over 200mm flue casing pipe from the top down to sit in position onto the 250mm section of flue transition atop the Zero clearance...
  • Page 6 Install the selected Kent wood burner into the prepared fireplace. Once in position and level fix the fire to the base of the fireplace enclosure with suitable anchors through the supplied fixing points in the base of the wood burners outer box.
  • Page 7 (3 x 150 Ø x 1200mm stainless steel flue, 1 x 150 Ø x 600mm stainless steel flue, 1 x 250 Ø x 600mm galvanised KWF298-6025 * flue, 1 x cowl hat & spider) Kent Rata / Logfire II Zero Clearance Box with Inbuilt Flue Kit (3 x 150/200/250 Ø x 1200mm flue, 1 x 150 Ø x 600mm KWF298-7374 ** stainless steel flue, 1 x cowl hat &...

  • Page 8: Installation

    (Fig. 7). The Kent Inbuilt zero clearance box must be installed onto a concrete base with a minimum thickness of 59mm, and must be a minimum of 785mm wide and 640mm deep behind the face of the wall, with an additional 360mm forward of the wall face to allow for the front clearance once installed.

  • Page 9: Operation

    Thank you for purchasing a Kent wood fire. Used and maintained correctly, it will provide you with many years of warmth in your home. Kent wood fires have been the main source of heating for many Kiwi homes, for over 40 years.
  • Page 10 NORMAL OPERATION ONCE THE FIRE IS ESTABLISHED The Kent wood fire requires fresh air for optimal burning, and this must come from outside the house. A normal house will allow enough air in through incidental openings to satisfy this. We recommend that a source of air be located near the wood fire for best performance.
  • Page 11 FOR FIRST FIRE All Kent wood fires are finished in a high temperature quality stove paint. The paint has not been fully cured until it has been heated. If the fire is run too hot, too fast, the paint will burn off before it has had a chance to fully bond to the steel.

  • Page 12: Maintenance

    RE-PAINTING All Kent wood fires are finished in high temperature paint. If marks and scratches occur, or the paint is damaged by over firing or aggressive cleaning agents the appliance can easily be touched up by using stove paint. Any rust or other stubborn marks that may appear can be cleaned up and removed with the help of a steel wool pad and hot soapy water, then repainted if necessary.

  • Page 13: Replacement Parts

    Top rear KWF299-6906 The air tube in your Kent wood fire is an important part of the appliance and helps ensure a clean, efficient and controllable burn. However, air tubes are a consumable item and need to be replaced from time to time as they are likely to degrade with continual exposure to the extreme heat generated in the fire box.
  • Page 14 4 - 180 x 176 x 25 KWF299-7040 The fire bricks in your Kent wood fire are an important part of the appliance and helps ensure a clean and efficient burn. However, fire bricks are a consumable item and are designed to be replaced as they are likely to degrade with use due to exposure to the extreme heat of the fire.

  • Page 15: Warranty

    This warranty is for normal domestic use. Your Kent wood fire is warranted for up to 15 years, with the exception of the following parts; door glass, door and glass seals, fire bricks, flue, secondary air systems and baffle plates, which all have a 12 month (part only) warranty.
  • Page 16 Kent products are distributed by: Aber Holdings Ltd T/A Aber Living 17 Mainstreet Place, Te Rapa, Hamilton 3200 Free Phone: 0800 161 161 | Free Fax: 0800 163 163 www.aberliving.co.nz Product specifications are at date of publication and are subject to change without notice.

This manual is also suitable for:

Logfire ii
