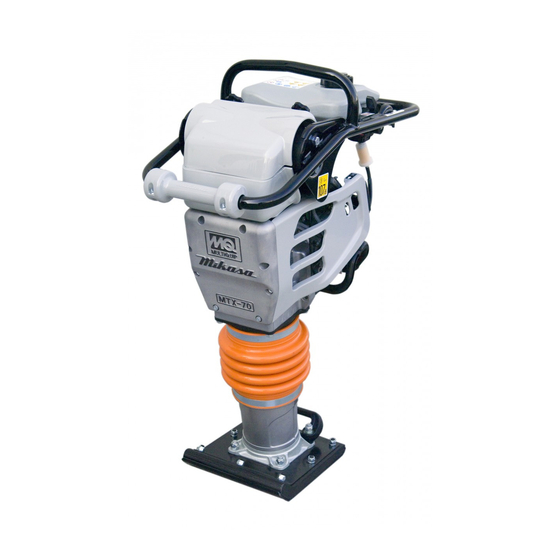

- Page 1 OPERATION AND PARTS MANUAL SERIES MODEL MTX70HD TAMPING RAMMER (HONDA GX100UKRBF GASOLINE ENGINE) Revision #2 (10/26/18) To find the latest revision of this publication, visit our website at: www.multiquip.com THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
-
Page 2: Safety Information
COULD result in DEATH or SERIOUS INJURY. CAUTION Indicates a hazardous situation which, if not avoided, COULD result in MINOR or MODERATE INJURY. NOTICE Addresses practices not related to personal injury. PAGE 6 — MTX70HD RAMMER • OPERATION AND PARTS MANUAL — REV. #2 (10/26/18) -
Page 3: General Safety
„ ALWAYS store equipment properly when it is not being used. Equipment should be stored in a clean, dry location out of the reach of children and unauthorized personnel. MTX70HD RAMMER • OPERATION AND PARTS MANUAL — REV. #2 (10/26/18) — PAGE 7... -
Page 4: Engine Safety
Fire or explosion could result if operating in speed ranges above the from fuel vapors or if fuel is spilled on a maximum allowable. hot engine. PAGE 8 — MTX70HD RAMMER • OPERATION AND PARTS MANUAL — REV. #2 (10/26/18) -
Page 5: Transporting Safety
„ DO NOT use food or plastic containers to dispose of hazardous waste. „ DO NOT pour waste, oil or fuel directly onto the ground, down a drain or into any water source. MTX70HD RAMMER • OPERATION AND PARTS MANUAL — REV. #2 (10/26/18) — PAGE 9... -
Page 6: Specifications
Engine Oil Capacity 0.3 qt. (0.28 liters) Fuel Unleaded gasoline Lubricant for Engine Automobile Oil; Class SE or higher Starting System Recoil Starter Spark Plug Type NGK CR5HSB PAGE 10 — MTX70HD RAMMER • OPERATION AND PARTS MANUAL — REV. #2 (10/26/18) -
Page 7: Noise And Vibration Emissions
Environment by equipment for use outdoors. Products are tested for hand/arm vibration (HAV) level in accordance with European Directives 2002/44/EC and EN500-4 and ISO 5349-1:2001, ISO 5349-2:2001. MTX70HD RAMMER • OPERATION AND PARTS MANUAL — REV. #2 (10/26/18) — PAGE 11... -
Page 8: General Information
3. Do not move the rammer with the lifting handle and the front rollers more than 16 feet (5 meters). and understand the function of the controls. PAGE 12 — MTX70HD RAMMER • OPERATION AND PARTS MANUAL — REV. #2 (10/26/18) - Page 9 NOT attempt to start the engine until the fuel residue has been completely wiped up, and the 7. Bellows — Reservoir for oil bath. area surrounding the engine is dry. MTX70HD RAMMER • OPERATION AND PARTS MANUAL — REV. #2 (10/26/18) — PAGE 13...
-
Page 10: Basic Engine
Operating the engine without an air filter, with a damaged air filter, or a filter in need of replacement will allow dirt to enter the engine, causing rapid engine wear. PAGE 14 — MTX70HD RAMMER • OPERATION AND PARTS MANUAL — REV. #2 (10/26/18) -
Page 11: General Inspection
3. Replace any missing or damaged Safety Operation TANK decals. 4. Adjust height of handle. Adjust handle by loosening nuts and moving handle to suit operation. Retighten nuts. Figure 4. Fuel Tank MTX70HD RAMMER • OPERATION AND PARTS MANUAL — REV. #2 (10/26/18) — PAGE 15... -
Page 12: Operation
Figure 7. Purge Bulb NOTICE Pumping the purge bulb removes air from the fuel system. It does not pump fuel into the carburetor. PAGE 16 — MTX70HD RAMMER • OPERATION AND PARTS MANUAL — REV. #2 (10/26/18) -
Page 13: Stopping The Engine
3. To stop the tamping action, move throttle lever quickly from START to IDLE position (Figure 6). MTX70HD RAMMER • OPERATION AND PARTS MANUAL — REV. #2 (10/26/18) — PAGE 17...
