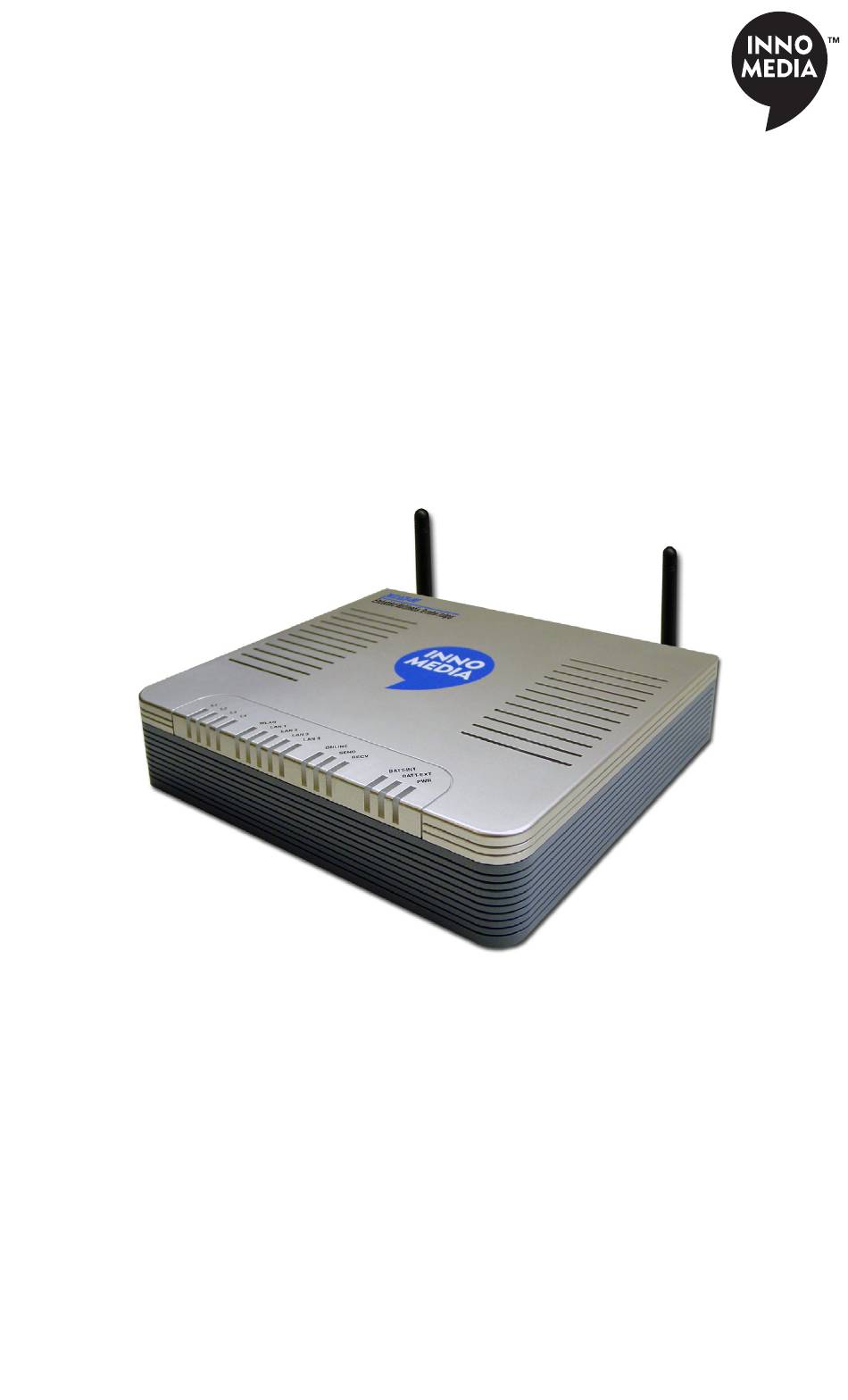

- Page 1 InnoMedia EMTA 6528-4WB Quick Install Guide www.innomedia.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Package Contents Installation 3 Troubleshooting 4 Appendix A. LED Status Summary 5 Specifications Federal Communication Commission Interference Statement 6... -
Page 3: Introduction
The InnoMedia EMTA 6528-4WB Multimedia Terminal Adapter is a device that provides standard telephony service and broadband Internet access over a DOC- SIS™ cable network. Designed for ease of installation and use, EMTA 6528-4WB will allow you to place and receive regular telephone and fax calls. -
Page 4: Installation
Installation 1. Connect the active RF coaxial cable to the “CABLE” connector. 2. Connect any standard analog telephone or fax machine to EMTA’s “PHONE” connector, labeled L1-L4. 3. Optionally, connect your PC to any LAN port using included RJ-45 cable. 4. -
Page 5: Troubleshooting
Troubleshooting Problem: Telephone has no dial tone Solution: 1. Ensure that all cables (power, RF, telephone) are properly connected to the EMTA. Ensure that EMTA’s AC power adapter is plugged in, and “PWR” indicator lights are ON (see Front Cover Picture). 2. -
Page 6: Appendix A. Led Status Summary
Appendix A. LED Status Summary LED / Control Blinking State EMTA 6528-4WB State Steady Green Device power is on Device power is off Blinking Amber When Data is passed while PC is connected to LAN Ethernet port No PC connected to USB or LAN Ethernet ports... -
Page 7: Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal- lation. - Page 8 © 2009 InnoMedia Incorporated. All rights reserved. InnoMedia and the InnoMedia logo are trademarks of InnoMedia Incorporated. All other brand and product names may be trademarks of their respective companies. v1.2 11/09...
