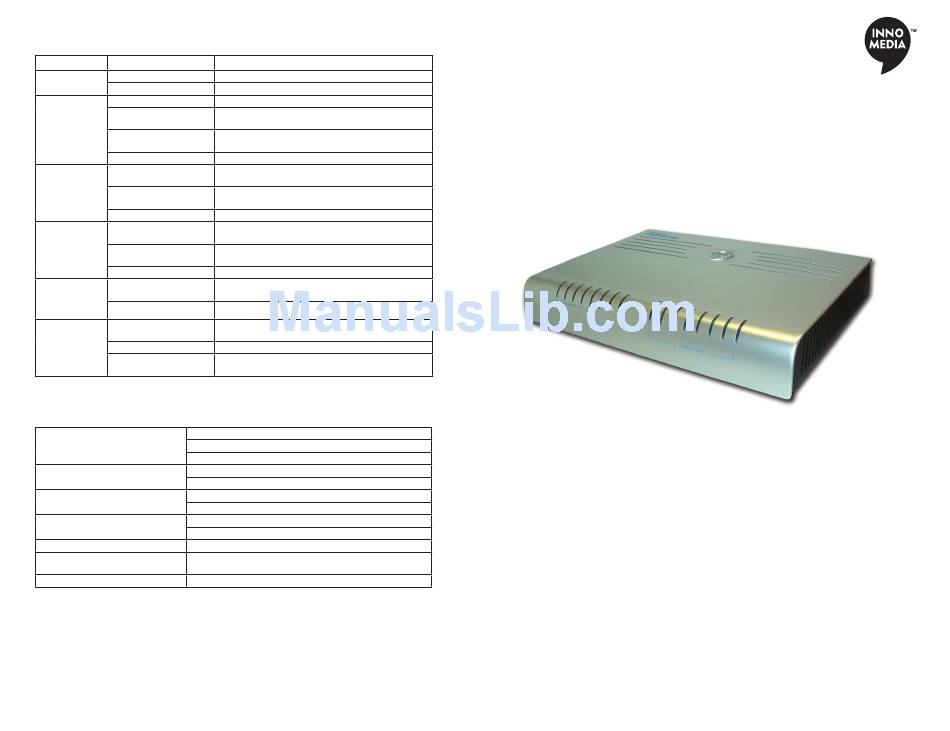

InnoMedia MTA 6328-8e1S Quick Install Manual

Appendix A. LED Status Summary
LED / Control Blinking State
PWR Steady Green
Off
RUN Blinking Red
Blinking Amber
Steady Green
Off / Other
WAN Blinking Green (10 Base T)
Blinking Amber (100 Base T)
Steady Green (10 Base T)
Steady Amber (100 Base T)
Off
LAN Blinking Green (10 Base T)
Blinking Amber (100 Base T)
Steady Green (10 Base T)
Blinking Amber (100 Base T)
Off
READY Steady Green
Off
Phone 1-8 Blinking Amber
Steady Green
Off

Specifications

Telephone Interface 8 FXS voice ports
Connector
Signaling
Network Interface - Uplink 10/100 Base-T
Connector
Network Interface - Downlink 10/100 Base-T
Connector
Dimension 1.511 in (H) x 9.897 in (W) x 7.181 in (D)
38.4mm (H) x 251.4mm (W) x 182.4mm (D)
Power Supply Output: DC 12V, 2 Amps; Input: AC 100~240V/50~60Hz
Power Consumption Talk: DC 12V @ 1.6 Amps (19.2W))
Idle: DC 12V @ 0.4 Amps (4.8W)
Operating Temperature 32ºF to 122ºF (0ºC to 50ºC)
www.innomedia.com
© 2006 InnoMedia Incorporated. All rights reserved. InnoMedia and the InnoMedia logo are trademarks of InnoMedia Incorporated. All other brand
and product names may be trademarks of their respective companies.
MTA 6328-8e1S State
Device power is on
Device power is off
The device failed to download a configuration or an image file
The device is actively downloading a configuration file or a
firmware update
The device has been configured successfully and is running
normally
The device is malfunctioning
PC or Voice Data is being transferred
The device is connected to a broadband network
The device is not connected to a broadband network
PC Data is being transferred
The device is not connected to an external PC
The cable modem module is not locked to upstream frequency
The VoIP module is internally initialized and the unit is ready
to make calls
Unit failed to register with all lines
The connected telephone handset is on the hook (not in use)
and there are new voice mail messages
The connected telephone handset is off the hook
The connected telephone handset is on the hook (not in use)
and there are no new voice mail messages
8 x RJ-11
Loop start
RJ-45
RJ-45
v1.0 10/06
InnoMedia
MTA 6328-8e1S
Quick Install Guide
Introduction
The InnoMedia MTA 6328-8e1S Multimedia Terminal Adapter is a device that
provides standard telephony service over any broadband Ethernet network.
Designed for ease of installation and use, MTA 6328-8e1S will allow you to
place and receive regular telephone and fax calls.

Package Contents

The InnoMedia MTA 6328-8e1S comes with the following items:
1 MTA
1 RJ-45 Cable
1 AC/DC Power Adapter
1 Quick Install Guide
