- Page 1 Service Manual 9KX Shelter Lock Service Manual 9K Heavy Duty Locks-Levers: 9KX Shelter Lock...

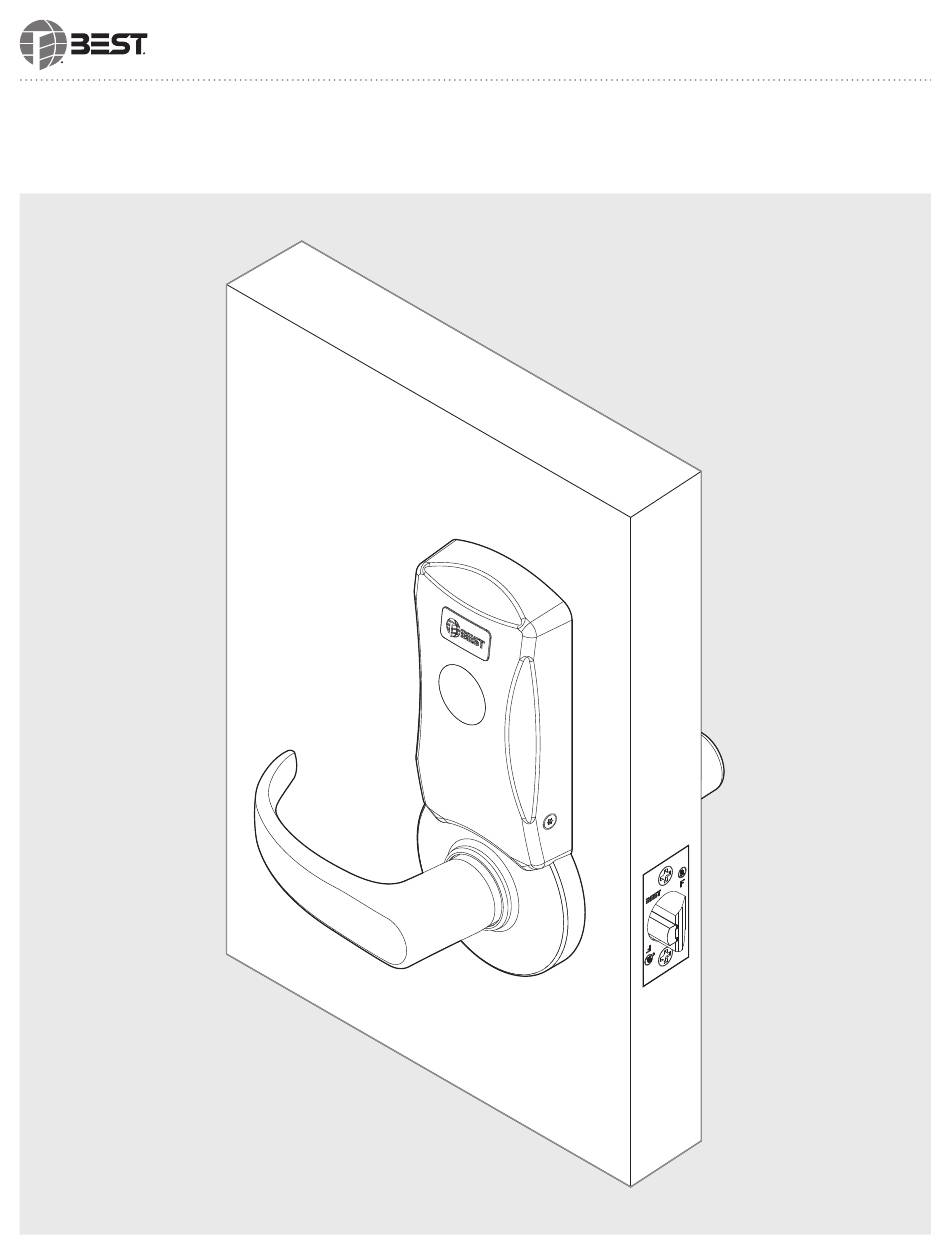

- Page 2 The diagram below shows an exploded view of the components of a 9KX Shelter Lock, indicating their orientation to the door. Please refer to document T56082 (9K Series Service Manual) for complete 9K Series Heavy Duty Locks Functions & Parts Lists Including: Lever Components Strikes &...
- Page 3 Parts Lists Enclosure PCB Assembly Enclosure PCB Assembly Parts List Item Qty. Part No. Description B87159 Enclosure & PCB Assembly for 9KX B87096 KIT: (2) #6-32 x 5/16”L MS T-15 Torx FH, (1) T-15 Security Torx Wrench 9KX Chassis Assembly 9KX Cylindrical Chassis Parts List Item Qty.
- Page 4 Mounting Bracket & Plate Parts List Item Qty. Part No. Description B87189 Large Rose for 9KX A55557 Clamp Screw for 9K B87190 Fire Plate Retainer for 9KX A44234 Self Tapping Screw C87191 Mounting Bracket Assembly for 9KX B87179 Thin Door Spacer ‘D’ Style...
- Page 5 B81797 Alternate Through-Bolt (ATB) (For Retro t Applications) not shown B89836 Alternate Through-Bolt 2 (ATB2) (For Retro t Applications) B55044 Large Spacer (For use with 1-3/8”-1-3/4” doors) BEST is a trademark of dormakaba Holding, Inc. T56082_Appendix_B ©2018 All rights reserved...
