Belkin Switch User Manual

Introduction
This sheet will guide you through the basic steps needed to install the
2-Port KVM Switch (the Switch). If you have any problems during
installation, please refer to the User Manual.
You will need the following items to install the 2-Port KVM Switch:
• KVM Switch
• One (each) keyboard, monitor, and mouse
• One KVM cable kit per computer installed (included)
Recommended Cable Kit:
F1D9000-XX PS/2 Style
(-XX denotes the length in 6, 10, 15, and 25 feet)
1

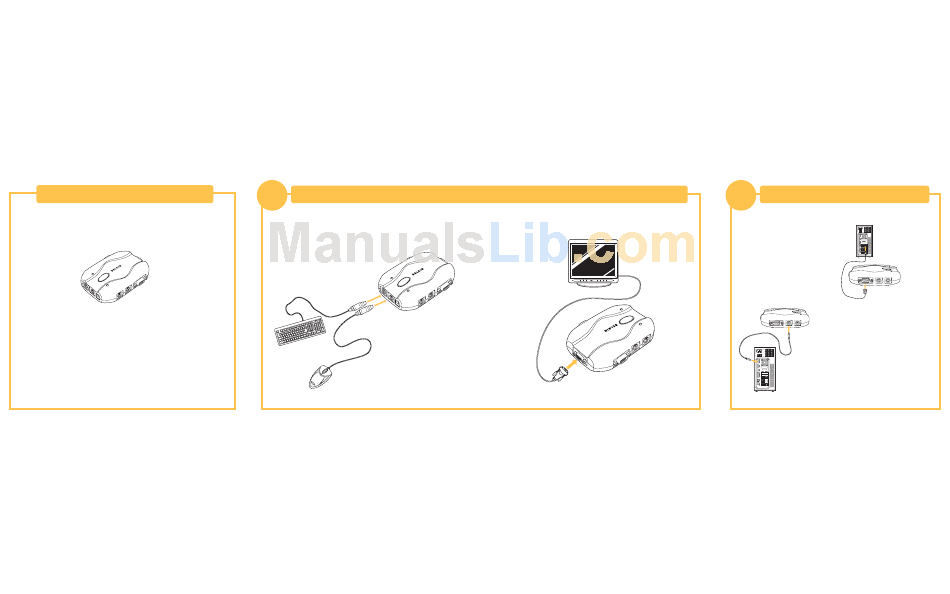

Connecting the Keyboard, Video, and Mouse to the Console Ports on the Switch
1. Power down all computers.
2. Connect your PS/2-type keyboard and mouse to the KEYBOARD and
MOUSE ports located on the side panels of your Switch.
3. Take the video cable that is attached to your monitor and connect it to the
VGA OUT port located on the side of the Switch.
2
Connecting Computers to the Switch
1. Using an OmniView KVM Cable kit,
take the VGA cable and connect the
male end of the cable to the VGA
port on the first computer. Connect
the female end to the VGA 1 port
on the side of the Switch.
2. Connect one end of the PS/2 keyboard
KVM cable to the keyboard port on
the computer and the other end to the
KEYBOARD 1 port on the side of
the Switch.
