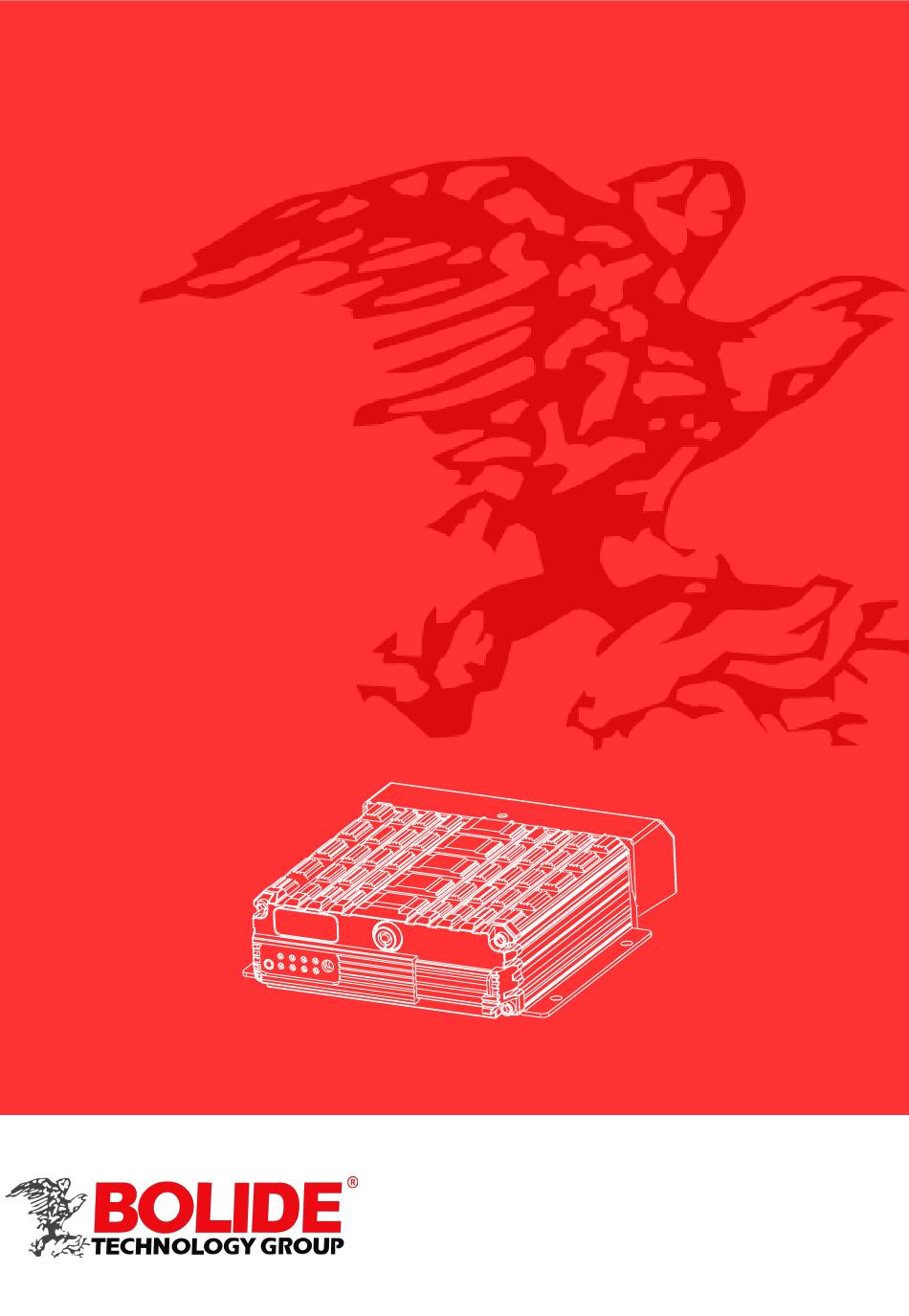

MVR9000SD
USER'S MANUAL
Tips: please read this manual carefully before using, and we reserve the right of final interpretation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVR9000SD and is the answer not in the manual?

Questions and answers

Summary of Contents for Bolide MVR9000SD

  • Page 1 MVR9000SD USER'S MANUAL Tips: please read this manual carefully before using, and we reserve the right of final interpretation...
  • Page 2 LIST...
  • Page 3 PREFACE...
  • Page 4: Section 1: Product Specifications

    Section 1: Product Specifications Note...
  • Page 5 Table 2: MDVR Product Specifications II (Economic type) Pigure1-1 gViewer...
  • Page 6: Section 2: Interface Definition And Functions

    Section 2: Interface Definition and Functions BACK POWER I/O&RS485&RS232 RJ45 CAM4 CAM3 CAM2 CAM1 AV-OUT...
  • Page 7 Key switch SIM A SIM B UN-LOCK Open the key,Left push SIM A SIM B UN-LOCK the SD card cover Installed SD card and SIM card Example Figure 2-3/4/5: Firstly host keys must turn to the UN-LOCK position, then push to open the SD card protection cover, insert SD card into slot by SD card face up, then close Figure 2-6 Indicators Illustration...
  • Page 8: Gps Antenna

    GPSAntenna POWER I/O&RS485&RS232 RJ45 CAM4 CAM3 CAM2 CAM1 AV-OUT I/O&RS485&RS232 CAM4 CAM3 CAM2 CAM1 POWER AV-OUT Power Input Red yellow black Connect to the network interface RJ45 Table 3 The MDVR rear panel interface description as follows Antenna...
  • Page 9 UN-LOCK Push the SD card cover Right push Right push Front Right Back...
  • Page 10 GPS Antenna POWER POWER MCU AV-OUT CAM4 CAM3 CAM2 CAM1 CAM4 CAM3 CAM2 CAM1 Power Input 4CH Audio andVideo Input 4PIN Red yellow black Figure 2-10 MDVR panel interface definition (2) Table 4 The MDVR rear panel interface description as follows...
  • Page 11: Simple Instruction For Common Interface Wire

    Simple Instruction for Common Interface Wire A:Power Cord As shown by below pictures, one end is a 6PIN white plug, which will be connected to the 6PIN power input connector on the rear panel of the device, the red and black wires are connected directly to the vehicle battery or the gathered electric which go through battery and fuse;...
  • Page 12 2.8 Remote Control Function keys Description LOGIN Number key area Subtraction adjustment PTZ control Direction key area Enter Exit/Return Delete/Cancel System intormation Play back operation key area 4Images segmentation PTZ Control Key area Shortcut key/test key Table 5 Remote Function Description When VCR has a password, press the LOGIN button to enter the password, Since the LOGIN system does not have restoring or resetting function, please remember the password...
  • Page 13: Section 3: Common Quick Setting And Operation

    Section 3: Common quick setting and operation The host s power cords are red, black and yellow, red and black wires connect directly to the vehicle battery or go through vehicle fuse, the red wire links to the positive, while black wire links to the negative, yellow wire links to firing wire ACC (the position before vehicle to start the motor).
  • Page 14 3.3 Video settings 1 Video Start Up After the installation of a new SD card in the device, the formatting is recommended after normal boot into the system, in order for system to have better compatible relationship with its format. After the formatting, host will automatically start up the video when restart.
  • Page 15: Video Line

    Setup steps Firstly, select the PTZ protocol: divided into PELCO-D and PELCO-P protocol, most of peoplewill choose PELCO-D Secondly, set the baud rate: there are four options 1200/2400/4800/9600 which must be corresponded with the baud rate on PTZ Thirdly, set the address code: directly input the address value corresponding with PTZ setting, corresponding is required.
  • Page 16 Besides playback by the host side, video files can also be copied to your computer to be played by the player. Install the player Double-click the installation file named MDVRPLayer V1.0.1.exe in the CD-ROM, and then select the installation language (supporting Chinese and English), click OK and then keep clicking 'Next', a player shortcut icon will show on the desktop after installation completion;...
  • Page 17 Note: The following described iS invalid to the host which is without 3G module, it is not needed to report to gServer platform Step 1: Install the SIM card, 3G card which supports WCDMA / EVDO / TD-CDMA, detailed installation please refer to Chapter II, 2.2, and 2.7 Step 2: Enter into the system menu after starting up, firstly modify the host s device number, System Menu -...
  • Page 18: Section 4: Menu Function Instructions

    Section 4: Menu function instructions 4.1 Device Start-up and User Login In After host is installed in vehicle environment according to the installation instructions, start it up by ensuring that power supply and other external devices are connected properly, normal start-up screen as Figure 4-1.
  • Page 19 2 System Menu Organizational Framework DATE&TIME VEHICLE INFO GENERAL USER SETUP NETWORK NORAL CODING SETUP RECORD SUB-STREAM RECORD PLAN SENSOR SPEED LOGIN ALARM G-SENSOR TEMPERATURE MOTION DETECTION CONFIGURE TOOLS FORMAT Default password:111111 SEARCH PTZ SETUP WIRELESS SETUP PERIPHERALS WIFI SETUP SD/HDD STATUS SYSTEM INFO DEVICE STATUS...
  • Page 20: Vehicle Settings

    General settings menu interface 4:When the GPS time proofreading opens, in the default time zone, such as the default GM +08:00 time zone, system will automatically proofread time by GPS when it reaches time proofreading point. 5:Switching machine: the ignition mode / timer mode, the ignition mode is that MDVR began to start up after vehicle starts its key, this operation is recommended as the preferred default starting-up.
  • Page 21 It is divided into four video settings menu, General Settings, encoding settings, sub-stream settings and video programs. The MDVR needs settings in order to achieve the best video, video will start work after host start up in default, but in order for better video function of host, the relevant parameters can be modified. Video setting menu shown in Figure 4-13 TV System,Record Delay,Alarm Delay system encoded Recording time etc...
  • Page 22 Encoding settings interface as shown in Figure 4-16 Definition: Optional D1/HD1/CIF; Frame Rate: PAL is adjustable 1-25 frame, full frame rate of 25 is real-time video; NTSC is adjustable 1-30 frame, full frame rate of 30 is real-time video. Quality: optional level 1-8, among which level 1 is with the highest quality while level 8 is the lowest; quality setting will directly affect the effect of video playback.
  • Page 23 Alarm settings menu includes settings of sensor, speed, acceleration, temperature and motion detection, etc. IO Sensor Alarm Setup IO,Speed,GSensor,Motion,Temperature etc. 1.Users define the sensor name according to the different setting interface when install MDVR; take Figure 4-21 for example, to modify the name "INPUT" to be Chinese 'front door, brake', you can press the 'ENTER' key and then input under the soft keyboard Chinese input state;...
  • Page 24 GSensor Alarm Setup As shown in FIG 4-23, it must be calibrated before setting acceleration, the calibration is clearing up X / Y / Z parameters. The acceleration can be understood as a 3D X / Y / Z axis, respectively stands for three-group status--- up and down, left and right, front and rear, the uniform is useless, the acceleration setting mainly set the threshold, which needs to be determined.
  • Page 25: Motion Detection Settings

    Motion Detection Settings Select the motion detection under alarm settings module to enter the motion detection settings interface, as shown in Figure 4-29 Within the area selected by the user, the system will release alarm information after detection when there are moving objects.
  • Page 26: Log Search Results

    Formatted SD card operation Start up after installing SD card, please format the SD card under normal circumstances, the formatting steps are as the above charts, then press "Format" button to choose whether to format by the pop-up boxes. It will remind the successful formatting after formatting finished.
  • Page 27 SIM A SIM B UN-LOCK Upgrade steps are as follows: Step 1: copy the "xxx.crc" upgrade program files to the root directory of the SD card, do not need to build any folder, copy directly to the SD card inside; Step 2: Insert the SD card into the SD card slot of the host, then power supply to the host, when host starts up, it will be prompted to enter the "Upgrading ..."...
  • Page 28 Description: When the MDVR will use 3G network to report to platform, related network settings in this menu should be done. 1.Insert the appropriate SIM card according to the communication configuration of the machine, supporting three: WCDMA (China Unicom) , EVDO (China Telecom) and TD-SCDMA (China Mobile). SIM card slot is on the front panel, with a key to unlock it and open the protective cover by left, you can see two interfaces SIMA and SIMB.
  • Page 29 Instructions: Insert WIFI antenna to corresponding interface behind the host, edit the following information on WIFI setting interface as shown in Figure 4-48: 1. Set WIFI enabled and encrypted to be open. Authentication modes includ WPA, WPA-PSK, WPA2-P SKOPEN and SHARED, with encryption type TKIP and AES; authentication mode is not in force yet, so only by selecting OPEN status (that s, open status does not require authentication) the WIFI can carry out normal communication, select the type of WEP encryption, which of course should be consistent with the encryption type of your router, as shown in Figure 4-48;...
  • Page 30 Enter into the search results interface to display the related information of video file: Firstly, there are two types-- "conventional" video and "alarm" video, conventional video is generally the video files recorded after setting up the start recording or timer recording but no alarms have occurred, while alarm video occurs when the host occurs alarm or alarm is input from external which cause host to record video files, for example, sensor settings, speed alarm settings, acceleration settings, motion detection settings have all been set parameters inside, and also connected to the peripherals externally, when the...
  • Page 31 Storage Device Info Description: System information played a significant role in viewing the device s status, it is very useful for the installation, commissioning and failure determine of the device. Firstly log into the system System Information System Information menu, the last one is SD / HDD Status SD / HDD Status which has two menus named...
  • Page 32: Appendix 2: Common Problems And Treatment

    Appendix 1: gServer platform interface VEHICLE SELECTION CONTROL VIDEO DISPLAY VEHICLE INFORMATION AREA STATUS Appendix 2: Common problems and treatment Q: What can I do when I found a problem with the product, but I can not solve it by myself? A: Take note of the model and software version number, then submit a detailed description of the problem to the technicalsupporting engineers to analyze;...
  • Page 33 GPS-related issues Q: GPS module exists but no coordinate information? A: 1.Check whether GPS module exists, if it does not exist, check whether the hardware is installed or in a good contact. 2.Make sure that the GPS antenna contacts are good, whether the antenna is broken, it is recommended to be located in places with strong signal, note that some car glass shielding film will block GPS signals;...
  • Page 34: Appendix 3: Storage Space Corresponding Table

    Appendix 3: storage space corresponding table Appendix 3: storage space corresponding table The space occupying for each image video recording per hour is shown as above table which is for reference only, the actual video file size has something to do with light changes of the current channel, movement of object and many other factors, if the image is stationary, then video file size will be much smaller;...
